AlphaTheta DJM-V5 - 3-Channel Professional DJ Mixer
Overview:
The AlphaTheta DJM-V5 is a 3-channel professional DJ mixer designed for detailed mixing in compact setups. It combines high-resolution digital processing with responsive controls, creative effects, and flexible connectivity. The mixer features 60 mm channel faders, four-band EQ, channel compression, and three filter modes. SonicLink wireless monitoring, USB-C connectivity, DVS control, MIDI support, and PRO DJ LINK provide practical options for modern DJ performances.
Key Features:
• Precise Channel Fader Control: The 60 mm channel faders offer smooth adjustments for accurate and controlled mixing.
• Four-Band EQ and Compressor: Each channel provides detailed frequency shaping and compression for greater control over individual sources.
• High-Resolution Audio Processing: 96 kHz / 64-bit DSP and 32-bit converters preserve clarity, warmth, and detailed audio performance.
• Creative Send FX: Six Send FX add depth and character, with dedicated controls for intuitive effect adjustments.
• Three-Mode Filter System: Low-pass, high-pass, and cross-pass filters provide flexible frequency shaping without sacrificing low-end energy.
• SonicLink Wireless Monitoring: The built-in 2.4 GHz SonicLink transmitter enables ultra-low- latency monitoring with compatible DJ headphones.
• DVS and MIDI Control: DVS control and USB-C MIDI support provide flexible integration with compatible DJ software and devices.
• Flexible System Integration: PRO DJ LINK, USB-C audio, send/return connections, and external effects support versatile DJ setups.
Specifications:
• Model: DJM-V5 professional 3-channel DJ mixer
• Channels: 3 stereo channels + 1 mic input
• DSP Processing: 96 kHz / 64-bit mixing DSP
• Converters: ESS Technology 32-bit A/D & D/A converters
• Frequency Response: 20 Hz – 40 kHz (LINE)
• Signal-to-Noise Ratio (SNR): USB: 110 dB
• Signal-to-Noise Ratio (SNR): LINE: 105 dB
• Signal-to-Noise Ratio (SNR): PHONO: 88 dB
• Signal-to-Noise Ratio (SNR): MIC: 79 dB
• Total Harmonic Distortion (THD): < 0.005 % (LINE-MASTER)
• Dimensions (W × D × H): 302.0 × 437.5 × 107.9 mm (11.89″ × 17.22″ × 4.25″)
• Weight: 8.0 kg (17.6 lbs)
• Sample Rate: 96 kHz
• Bit Depth: A/D & D/A converters: 32-bit
• Channel Meter: Multi-segment LEDs (per channel)
• Main Meter: Multi-segment LEDs
• 4-Band Channel EQ: Hi, Hi-Mid, Lo-Mid, Low
• Booth EQ: 2-band (independent)
• Filters: Low-pass, High-pass, Cross-pass (three modes)
• Send FX: Short Delay, Reverb, Shimmer, Tape Echo, PingPong, Echo-Verb
• Dedicated Send/Return Controls: Per channel
• Wireless Monitoring: Built-in SonicLink transmitter (2.4 GHz)

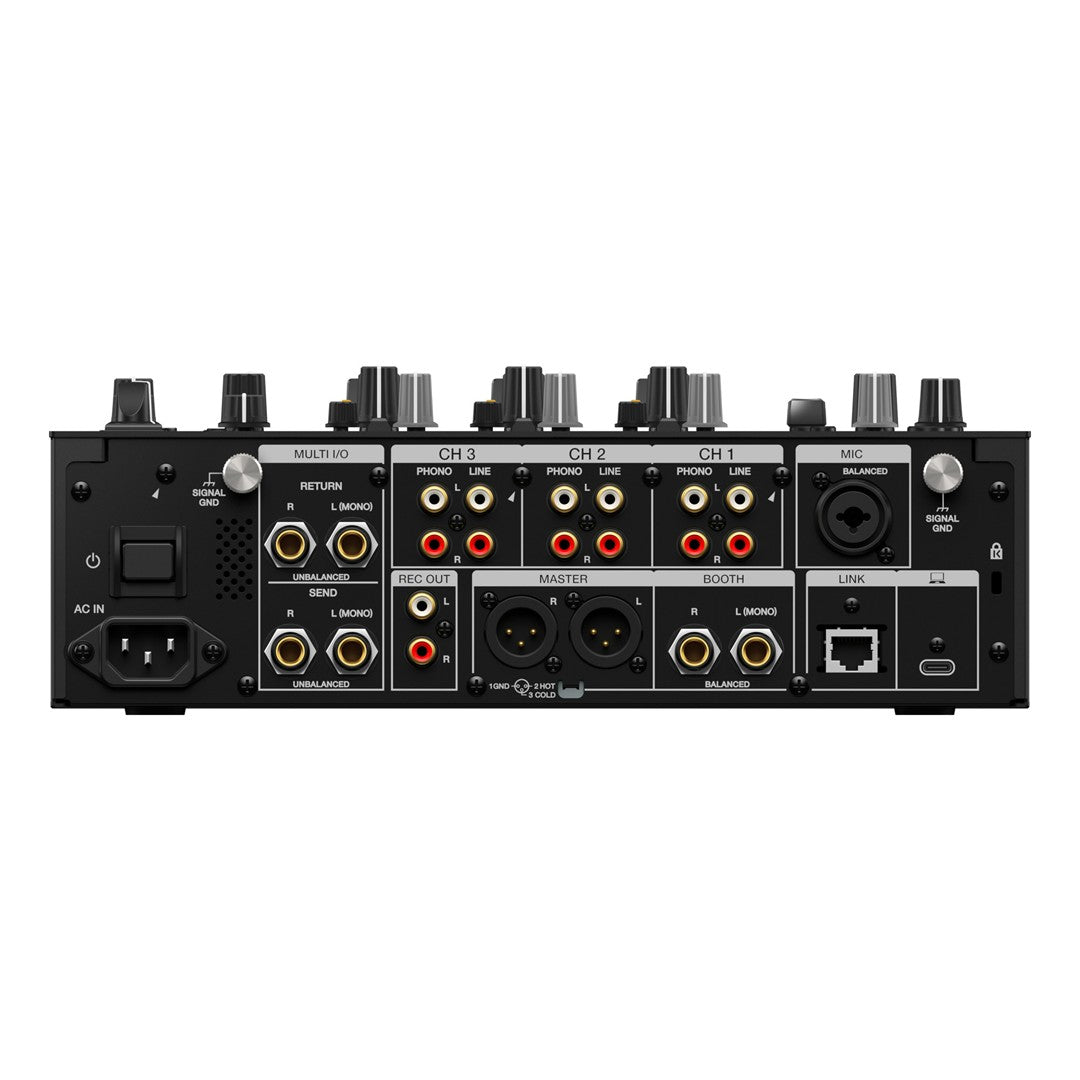

• LAN: × 1 (PRO DJ LINK)
• USB Type-C: × 2 (MULTI I/O × 1, PC/Mac × 1)
• USB MIDI: Supported via USB Type-C
• LINE: × 3 (RCA)
• PHONO: × 3 (RCA)
• MIC: × 1 (XLR & 1/4″ TRS combo)
• RETURN: × 1 (1/4″ TS jack)
• MASTER: × 1 (XLR)
• BOOTH: × 1 (1/4″ TRS jack)
• REC OUT: × 1 (RCA)
• SEND: × 1 (1/4″ TS jack)
• PHONES: × 2 (1/4″ & 3.5 mm)
• PRO DJ LINK: BPM sync and Link Cue support
• DVS Control: Supported with rekordbox and Serato DJ Pro
• USB Send/Return: Supports external devices
• Multi-Device Compatibility: iPhone/iPad with DJM-REC and RMX-1000 apps
• Insert Connections: Via USB send/return for external effect units
• Performance Ratings: Multi-segment LED metering per channel and main meter
Software Compatibility:
• rekordbox for Mac/Windows
• Serato DJ Pro (license required)
• DJM-REC
• RMX-1000
• djay Pro (license required)
What's Included:
• Power cord
• Quick Start Guide
• Precautions for Use
• Warranty (region-dependent)
Professional Mixing in a Compact Format:
The AlphaTheta DJM-V5 suits professional DJs needing detailed control in a compact mixer. Its effects, filters, EQ, wireless monitoring, DVS, MIDI, and flexible connectivity support demanding DJ setups.
