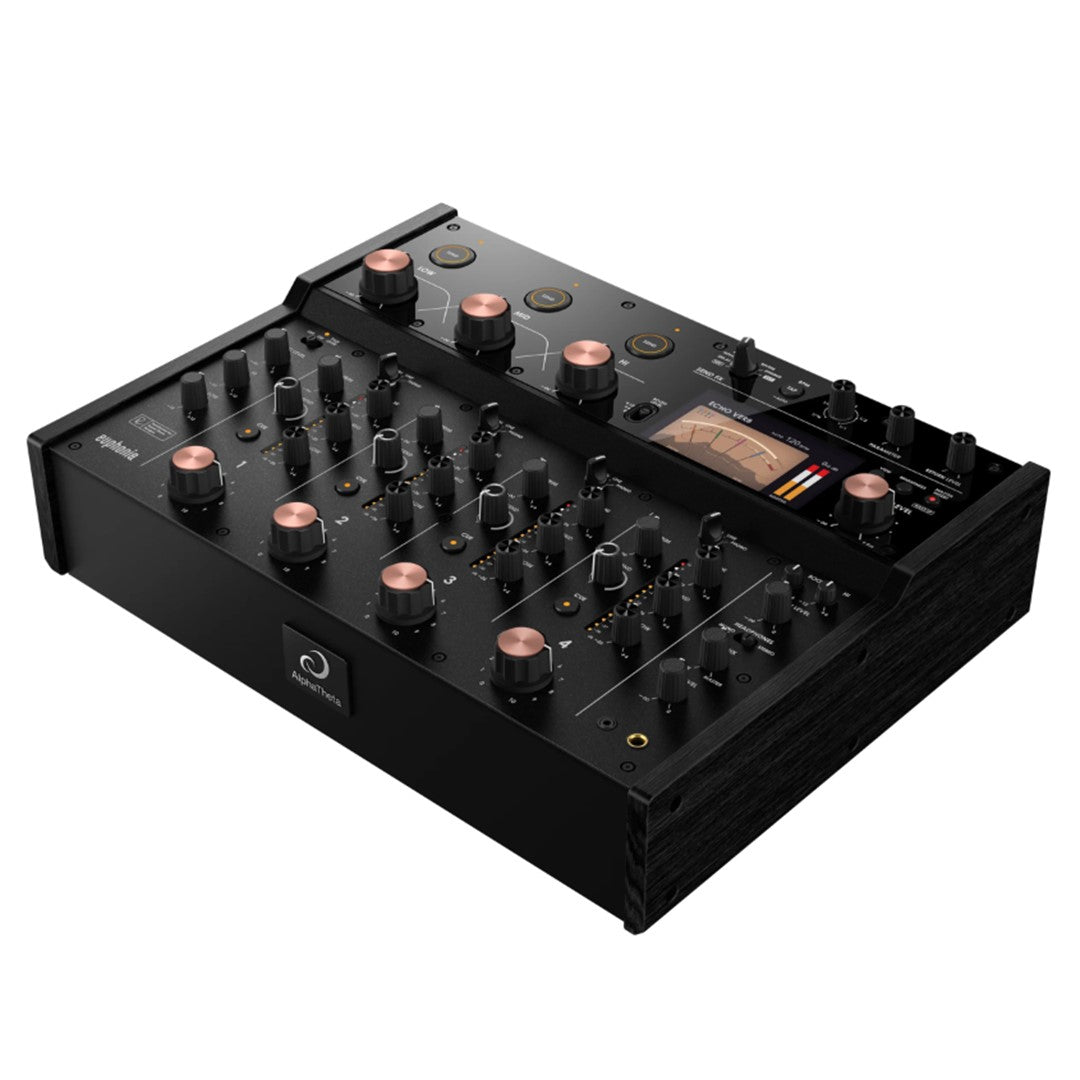

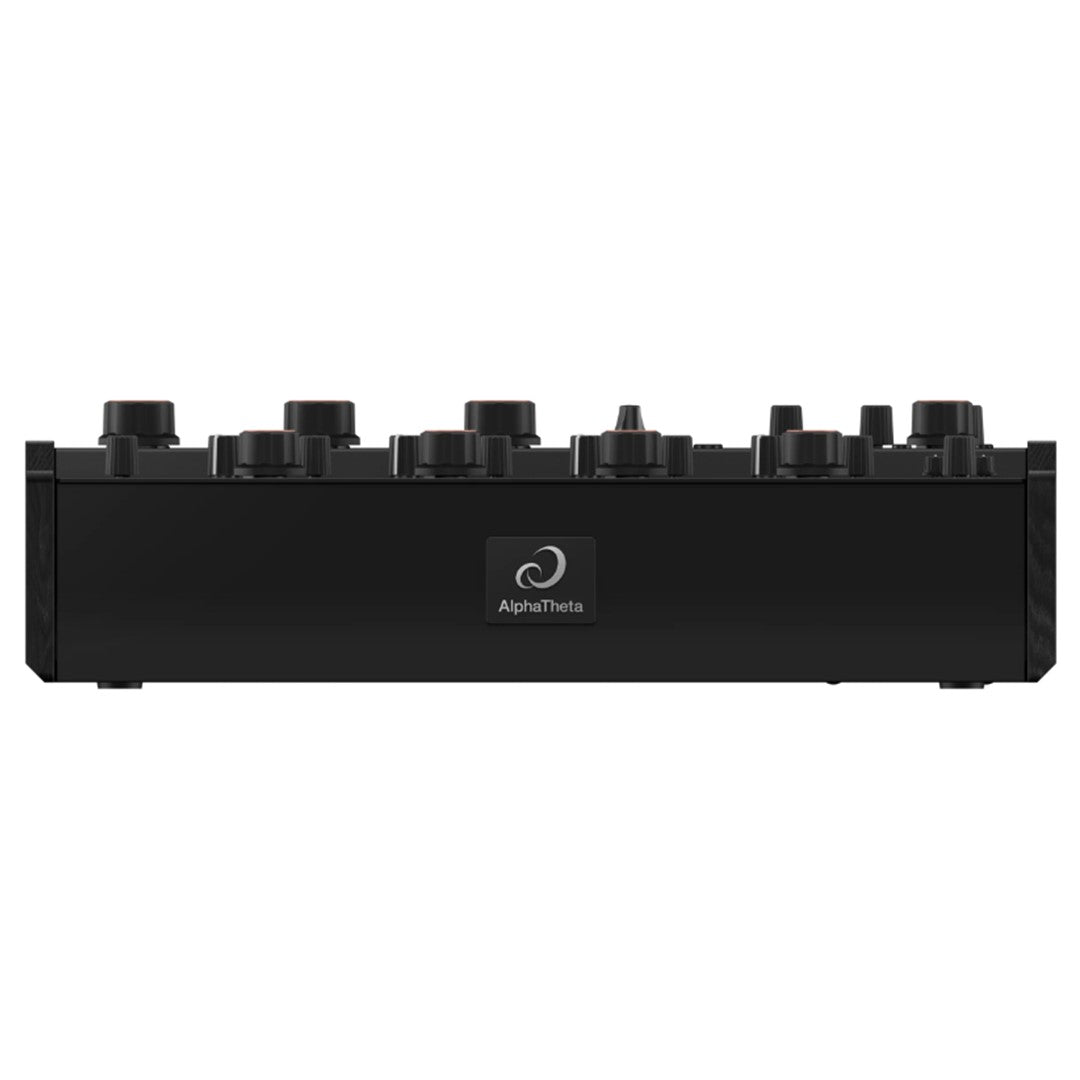

AlphaTheta EUPHONIA - 4-Channel Professional Rotary Mixer

Overview:

The AlphaTheta EUPHONIA is a professional 4-channel rotary mixer designed for detailed, expressive DJ performances. It combines digital precision with the character of analog-style sound. High-quality converters and advanced mixing processing preserve musical detail, while a transformer circuit developed with Rupert Neve Designs adds harmonic depth. Rotary faders, an Energy Visualizer, Master Isolator, and built-in effects provide intuitive control throughout your set.

Key Features:

•    Digital Precision with Analog Character: 32-bit A/D and D/A converters with                                               96kHz/64bit processing preserve detail and deliver refined sound.
•    Rupert Neve Designs Transformer Circuit: The transformer adds harmonic richness, giving low       frequencies stability and high frequencies a smooth character.
•    Specially Developed Rotary Faders: Variable-resistance rotary faders provide tactile control             for accurate volume adjustments at different mixing speeds.
•    Energy Visualizer: Individual channel needles display mix levels clearly, helping you monitor               volume and maintain consistent performance.
•    3-Band Master Isolator: Dedicated controls make frequency adjustments quick, allowing you to       shape kick, melody, and rhythm elements.
•    Built-in Send FX: Five spatial effects add depth to your mixes, with dedicated send controls for       precise effect application.
•    External Effects Integration: Send/return and master insert configurations let you connect               external effects units for expanded sound shaping.
•    Professional Rotary Mixer Design: The two-tone construction combines matte and gloss                     finishes with copper-coloured knobs and black wood side panels.

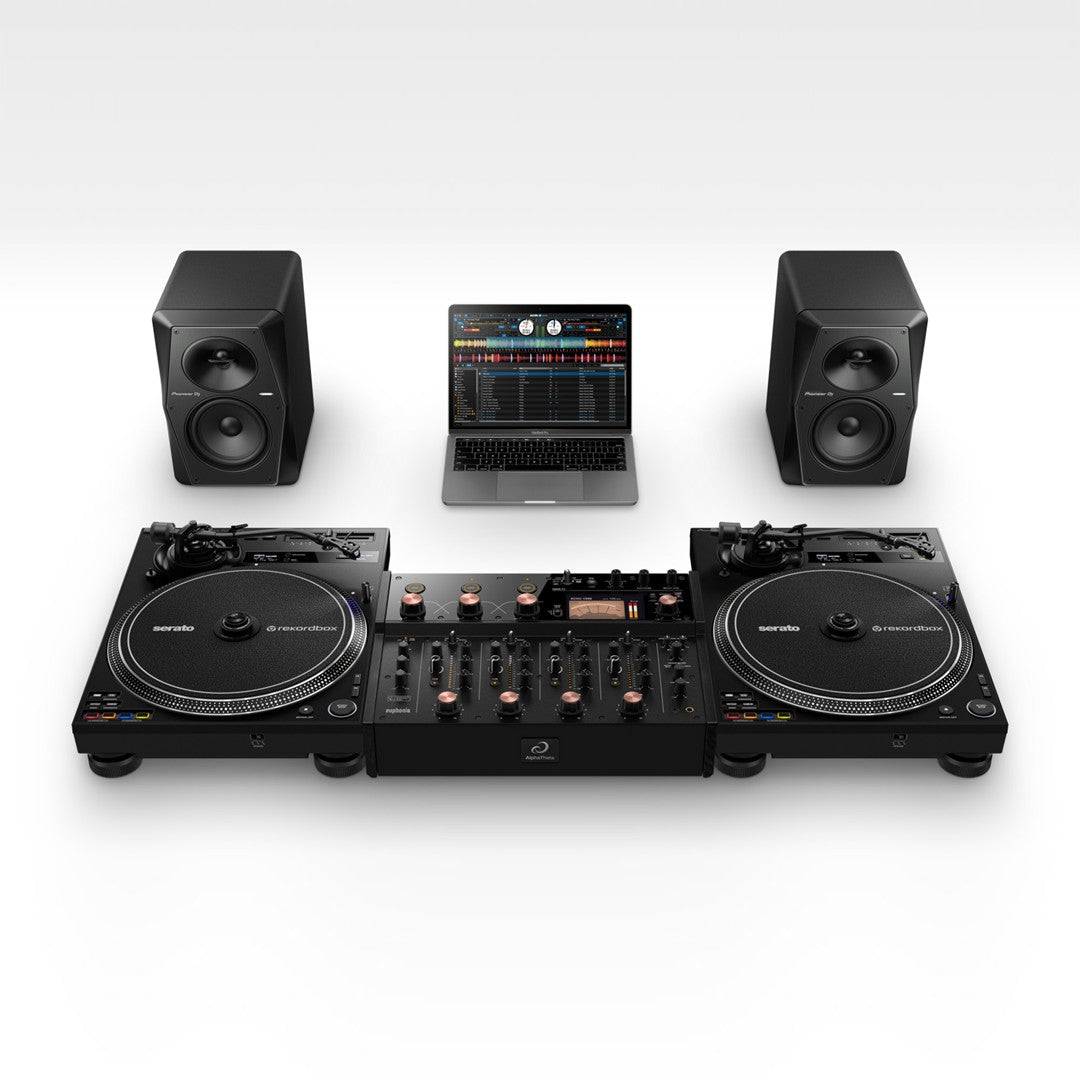

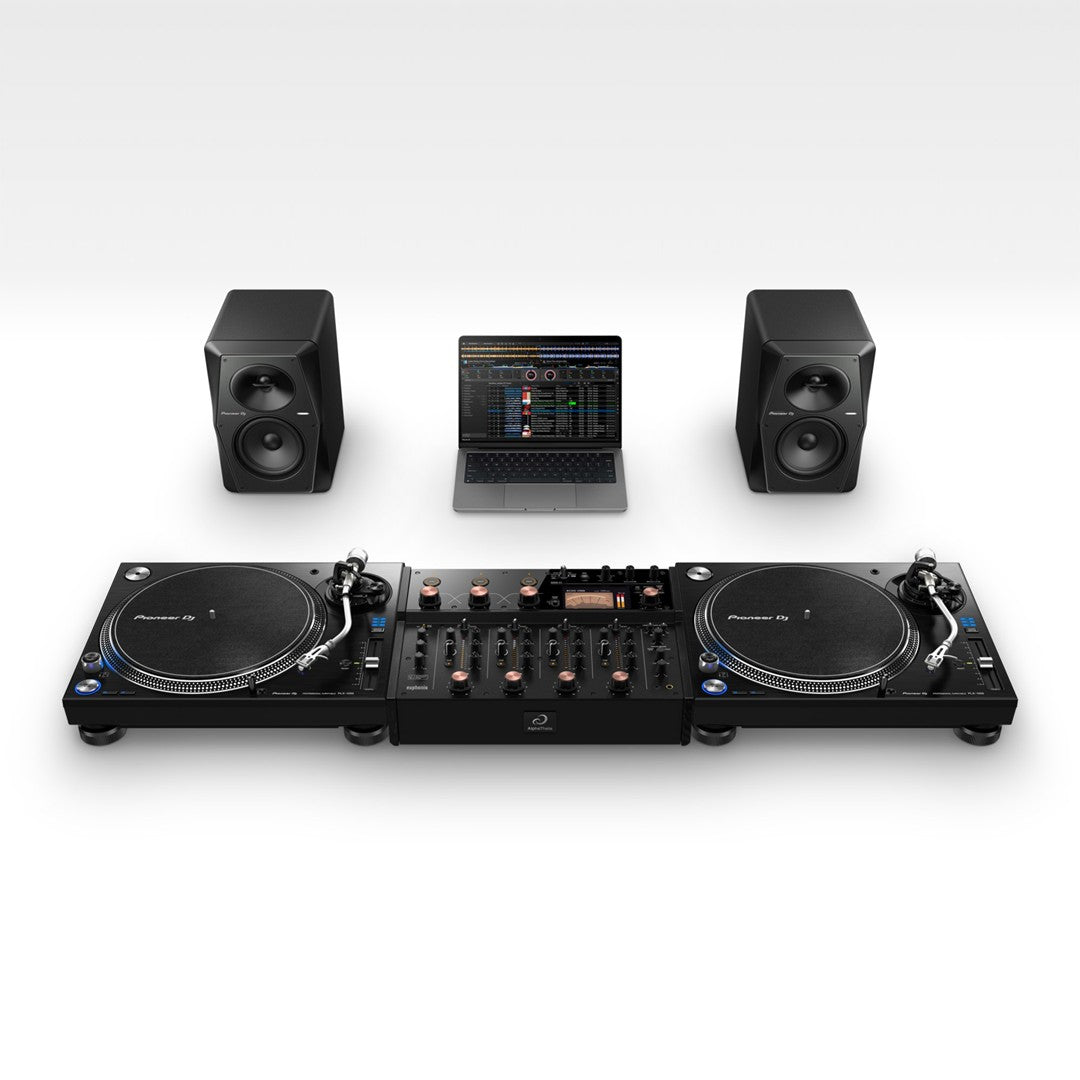

•    DVS and DJ Software Support: rekordbox and Serato DJ Pro compatibility enables intuitive               DVS control for supported performance setups.

Specifications:

•    Max. External Dimensions (W × D × H): 429.2 × 331.0 × 119.9 mm / 16.90" × 13.03" x 4.72"
•    Main Unit Weight: 9.5 kg / 20.94 lbs.
•    Frequency Response: 20 Hz － 40 kHz (LINE)
•    S/N Ratio: 107 dB (USB, DIGITAL IN)
•    S/N Ratio: 88 dB (PHONO)
•    S/N Ratio: 105 dB (LINE)
•    S/N Ratio: 79 dB (MIC)
•    Power Requirements: AC 110 V － 240 V, 50 Hz / 60 Hz
•    Power Consumption: 43 W

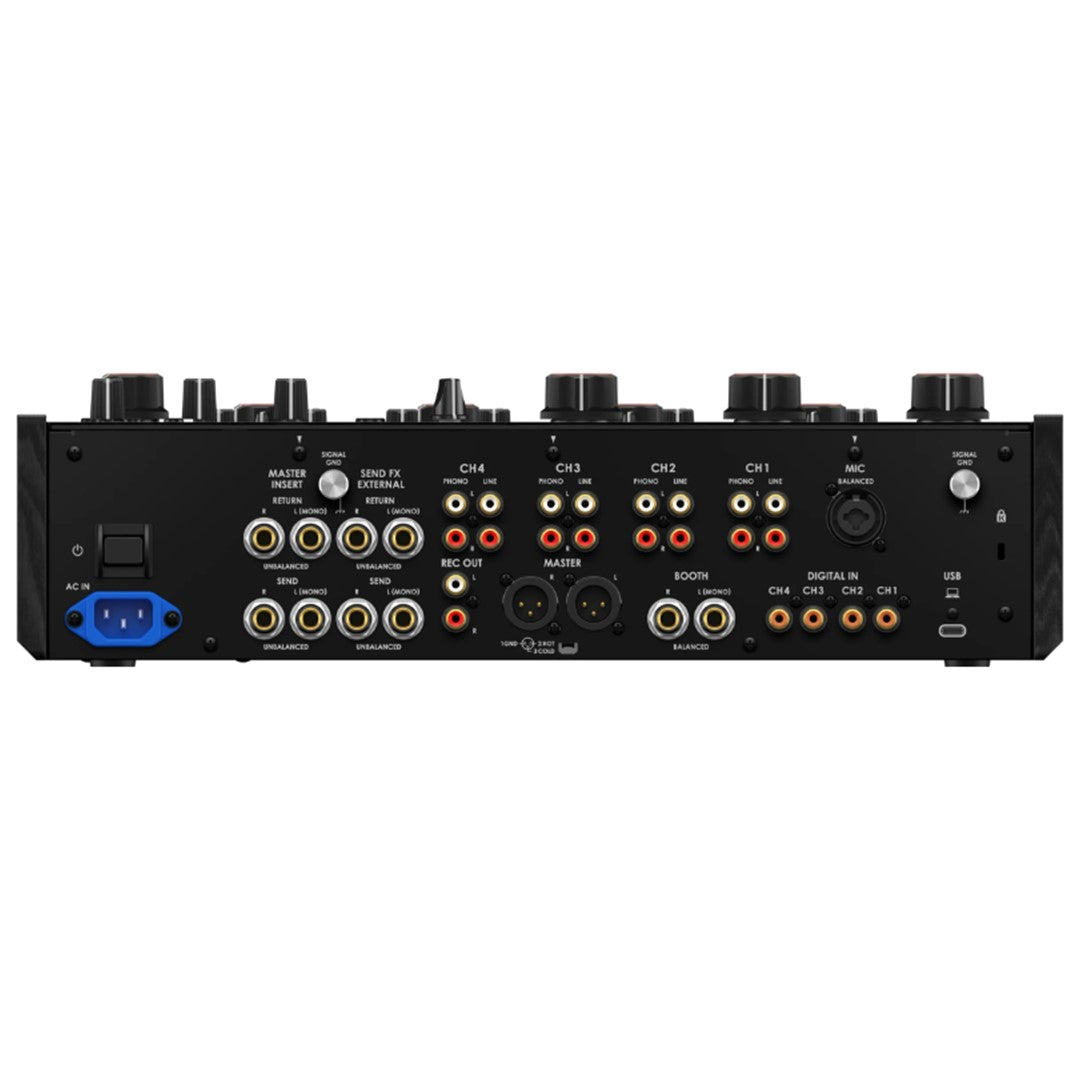

•    DIGITAL IN: × 4 (coaxial)
•    LINE: × 4 (RCA)
•    PHONO: × 4 (RCA)
•    MIC: × 1 (XLR & 1/4" TRS jack)
•    MASTER Output: × 1 (XLR)
•    BOOTH Output: × 1 (1/4" TRS jack)
•    REC Output: × 1 (RCA)
•    PHONES: × 2 (1/4" stereo phone jack, 3.5 mm stereo mini jack)
•    USB: USB Type-C × 1
•    SEND: × 2 (1/4" TS jack)
•    RETURN: × 2 (1/4" TS jack)
•    Channels: 4
•    Built-in Send FX: Delay, Tape Echo, Echo Verb, Reverb, Shimmer
•    Master EQ: 3-Band Master Isolator

Software Compatibility:

•    rekordbox
•    Serato DJ Pro

What's Included:

•    Power cord
•    Warranty (for some regions)
•    Quick start guide
•    Precautions for use

Professional Rotary Mixing with Detailed Control:

The AlphaTheta EUPHONIA suits DJs who prefer rotary mixing and detailed sound control. Its combination of advanced digital processing, transformer-based sound shaping, tactile faders, effects, and flexible connections makes it a strong choice for professional DJ setups.
