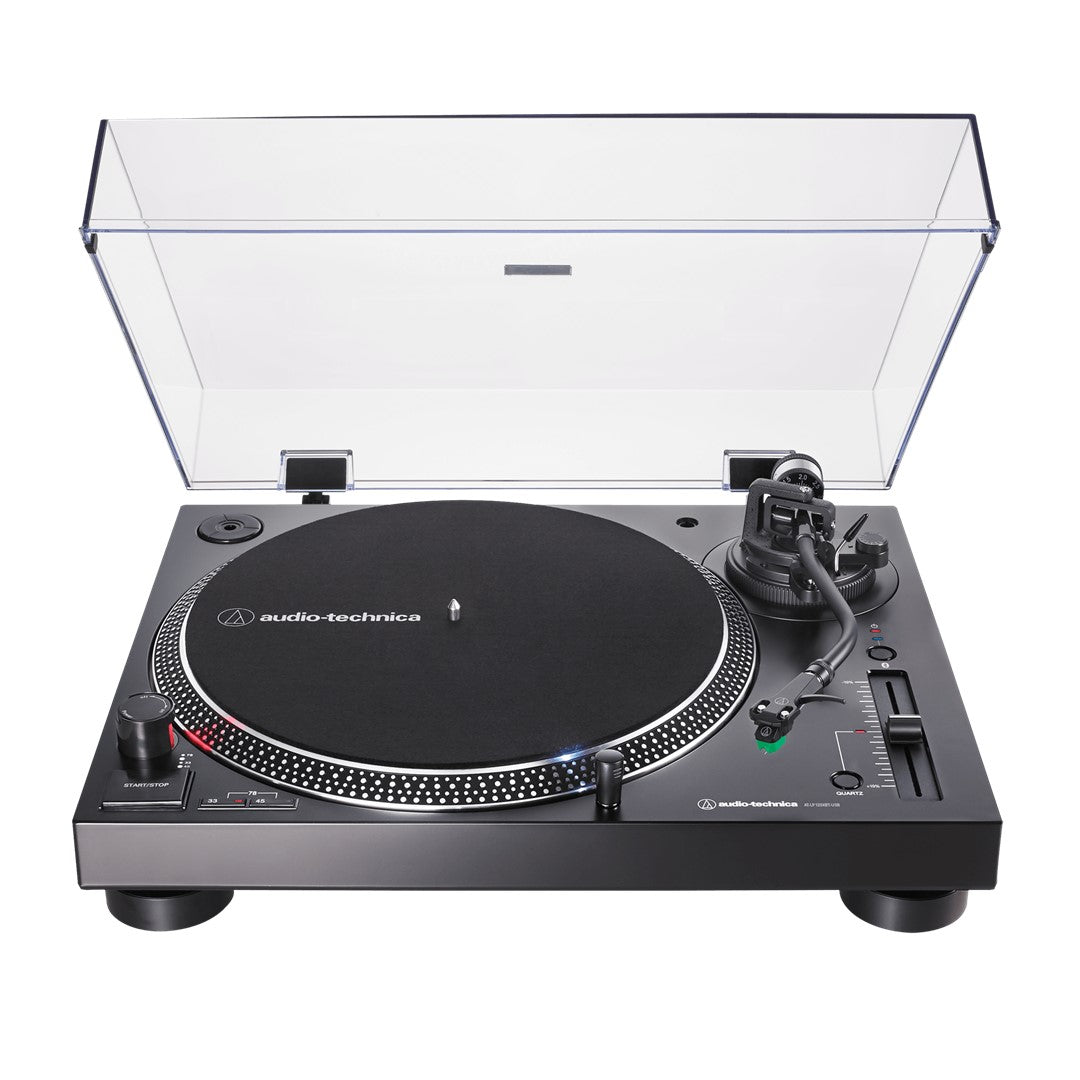

Audio-Technica AT-LP120XBTUSBBK – Direct Drive Bluetooth & USB Turntable

Overview:

The Audio-Technica AT-LP120XBTUSBBK is a fully manual, three-speed direct-drive turntable with analogue, USB, and Bluetooth® connectivity. Its DC servo motor provides stable playback across 33-1/3, 45, and 78 RPM records. An adjustable S-shaped tonearm and AT-VM95E cartridge support accurate vinyl playback. Meanwhile, USB recording and wireless audio options make it suitable for both traditional and modern listening setups.

Key Features:

•    Direct-Drive Motor: The DC servo motor delivers consistent rotation with minimal speed                      variation for dependable playback.
•    Three Playback Speeds: Select 33-1/3, 45, or 78 RPM to play a wide range of vinyl records.
•    Bluetooth® Wireless Audio: Bluetooth® connects compatible speakers, headphones, and                     devices for convenient wireless listening.
•    AT-VM95E Cartridge: The Dual Moving Magnet™ cartridge uses a 0.3 x 0.7 mil elliptical stylus            for detailed playback.
•    Adjustable S-Shaped Tonearm: Adjustable tracking force and anti-skating controls support              accurate setup and stable record tracking.
•    USB Recording: The USB output supports digital conversion, allowing vinyl records to be                      transferred to a computer.
•    Quartz Pitch Control: Quartz-controlled pitch lock and +/-10% adjustment provide precise                    control over playback speed.

Specifications:

•    Type: 3-speed, fully manual operation
•    Motor: DC servo motor
•    Drive Method: Direct drive
•    Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
•    Turntable Platter: Die-cast aluminum
•    Starting Torque: >1.0 kgf.cm
•    Braking System: Electronic brake
•    Wow and Flutter: <0.2% (WTD) @ 3 kHz (JIS)
•    Signal-to-Noise Ratio: >50 dB
•    Output Level: Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec
•    Output Level: Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec
•    Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
•    USB Function: A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable
•    Computer Interface: USB 2.0 Compliant Windows 7 or above, or MAC OS X or above
•    Power Supply Requirements: 100 to 240 V, 50/60 Hz, 1.5A Max
•    Power Consumption: 2.75 W
•    Dimensions: 452.0 mm (17.80″) W x 352.0 mm (13.86″) D x 141.6 mm (5.57″) H
•    Weight: 8 kg (17.6 lbs.), without dust cover
•    Tonearm Type: Balanced S-shaped tonearm with detachable headshell
•    Effective Arm Length: 230.5 mm
•    Overhang: 16 mm
•    Tracking Error Angle: Less than 3 degrees
•    Applicable Cartridge Weight: 3.5-8.5 g
•    Anti-skating Range: 0-4 g
•    Replacement Stylus: AT-VMN95E
•    Communication System: Bluetooth Version 5.0
•    Maximum Communication Range: Line of sight – approx. 10 m (33′)
•    Compatible Bluetooth Profile: A2DP
•    Support Codec: Qualcomm® aptX™ Adaptive audio, Qualcomm® aptX™ audio, SBC

Software Compatibility:

•    Audacity
•    Similar vinyl digitisation programs

Streaming Compatibility:

•    Bluetooth® wireless audio
•    Qualcomm® aptX™ Adaptive audio, Qualcomm® aptX™ audio
•    SBC

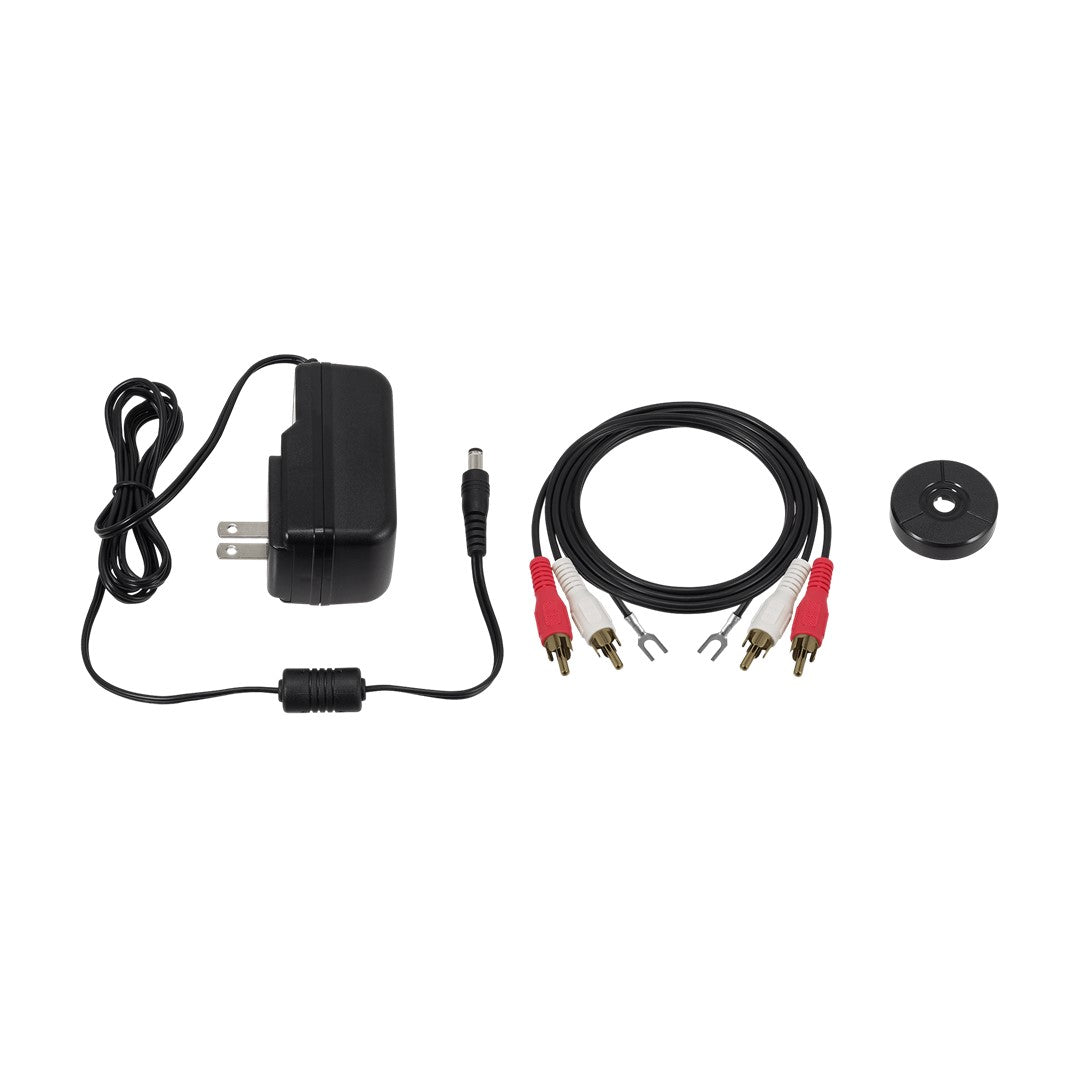

What's Included:

•    AT-VM95E phono cartridge
•    AT-HS6 headshell
•    1.9 m (6.2′) USB cable
•    Dual RCA (male) to dual RCA (male) cable with ground wire
•    Counterweight
•    Felt mat
•    Dust cover
•    45 RPM adapter
•    Plug-type stylus target light

A Flexible Turntable for Modern and Traditional Listening:

The AT-LP120XBTUSBBK suits vinyl listeners who want flexible connection options. Its direct-drive design supports accurate playback across three speeds. USB output adds convenient vinyl digitisation, while Bluetooth® provides wireless listening. Therefore, it works well across traditional stereo and modern audio setups.
