Audio-Technica AT-VM95E – Stereo Dual Moving Magnet Cartridge
Overview:
The Audio-Technica AT-VM95E Stereo Dual Moving Magnet Cartridge is designed for half-inch mount turntables. Its bonded elliptical stylus provides accurate groove tracking across a 20-22,000 Hz frequency range. The cartridge also delivers a 4.0 mV output and 20 dB channel separation. A low-resonance housing and threaded mounting inserts support stable installation and consistent vinyl playback.
Key Features:
• Elliptical Stylus: The 0.3 x 0.7 mil elliptical stylus follows record grooves accurately for detailed playback.
• Dual Moving Magnet Design: The VM stereo dual magnet construction provides reliable performance for everyday vinyl listening.
• Low-Resonance Housing: The cartridge housing helps minimise unwanted vibration, supporting cleaner and more consistent sound.
• Strong Output Level: The 4.0 mV output produces a strong signal for clear and dynamic vinyl playback.
• Secure Threaded Mounting: Built-in threaded inserts allow secure installation using the supplied screws without additional nuts.
• Adjustable Tracking Force: A 1.8 to 2.2g tracking range helps achieve suitable alignment and stable record tracking.
• Replaceable Stylus System: The cartridge accepts six different AT-VMN95 replacement styli, providing flexible future upgrade options.
Specifications:
• Cartridge Type: VM stereo dual magnet
• Stylus Shape: Elliptical (0.3 x 0.7 mil)
• Stylus Construction: Bonded round shank
• Cantilever: Aluminum pipe
• Frequency Response: 20-22,000 Hz
• Channel Separation: 20 dB (1 kHz)
• Output Voltage: 4.0 mV (@ 1 kHz, 5 cm/sec)
• Output Channel Balance: 2.0 dB (1 kHz)
• Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
• Vertical Tracking Angle: 23°
• Static Compliance: 17 x 10⁻⁶ cm/dyne
• Dynamic Compliance: 7 x 10⁻⁶ cm/dyne (100 Hz)
• Coil Impedance: 3.3 kΩ (1 kHz)
• DC Resistance: 485 Ω
• Coil Inductance: 550 mH (1 kHz)
• Recommended Load Impedance: 47,000 Ω
• Recommended Load Capacitance: 100-200 pF
• Mounting: 1/2” centers
• Cartridge Weight: 6.1g
• Dimensions: 17.2 mm (H) x 18.9 mm (W) x 28.3 mm (D)
• Replacement Stylus: AT-VMN95E
• Wire Used for Coil: T.P. Copper

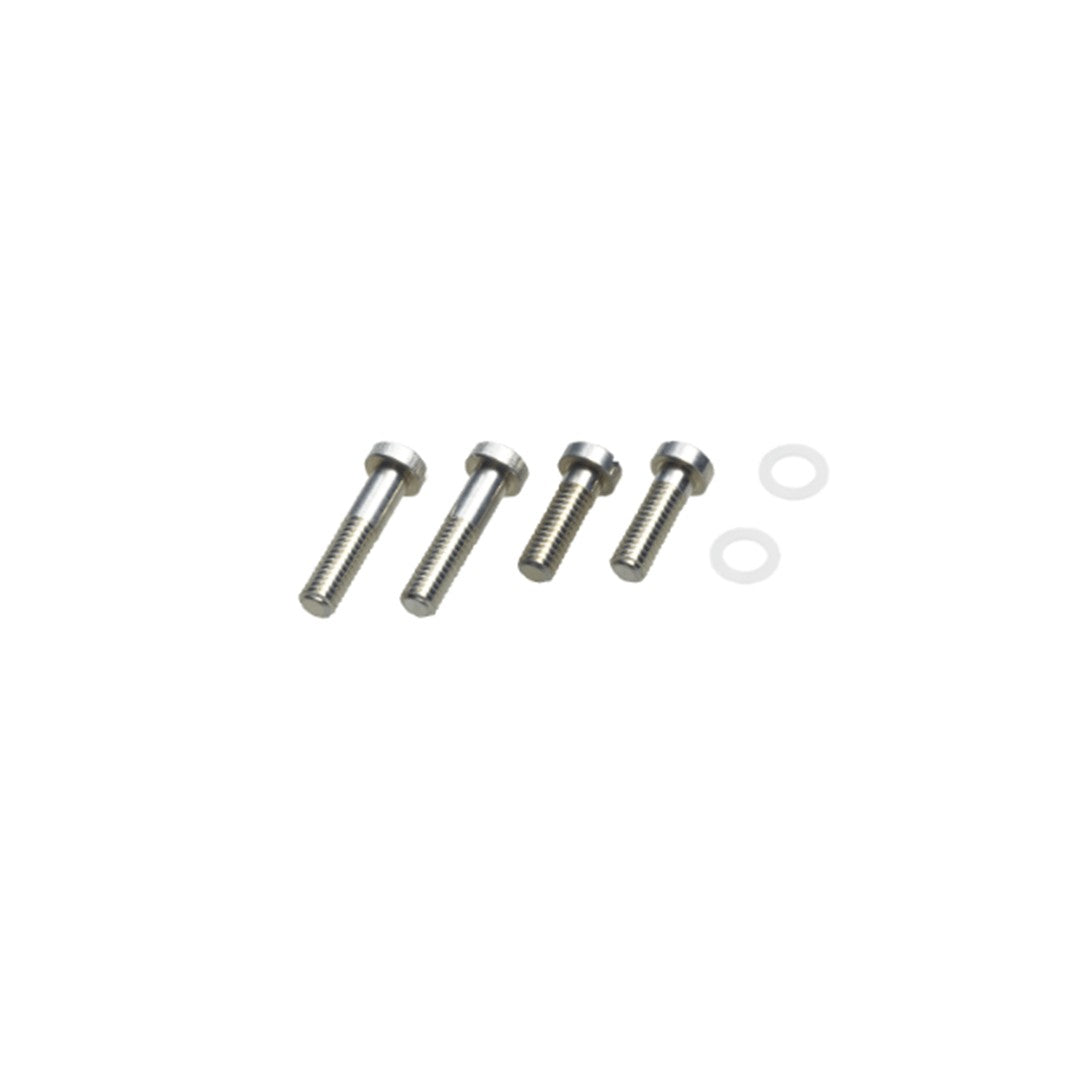

What's Included:
• Two 11 mm installation screws
• Two 8 mm installation screws
• Two washers
A Practical Upgrade for Vinyl Systems:
The AT-VM95E suits listeners upgrading a compatible half-inch mount turntable cartridge. Its elliptical stylus, adjustable tracking force, and replaceable stylus options support flexible vinyl playback. The secure threaded mounting system also makes installation straightforward.
