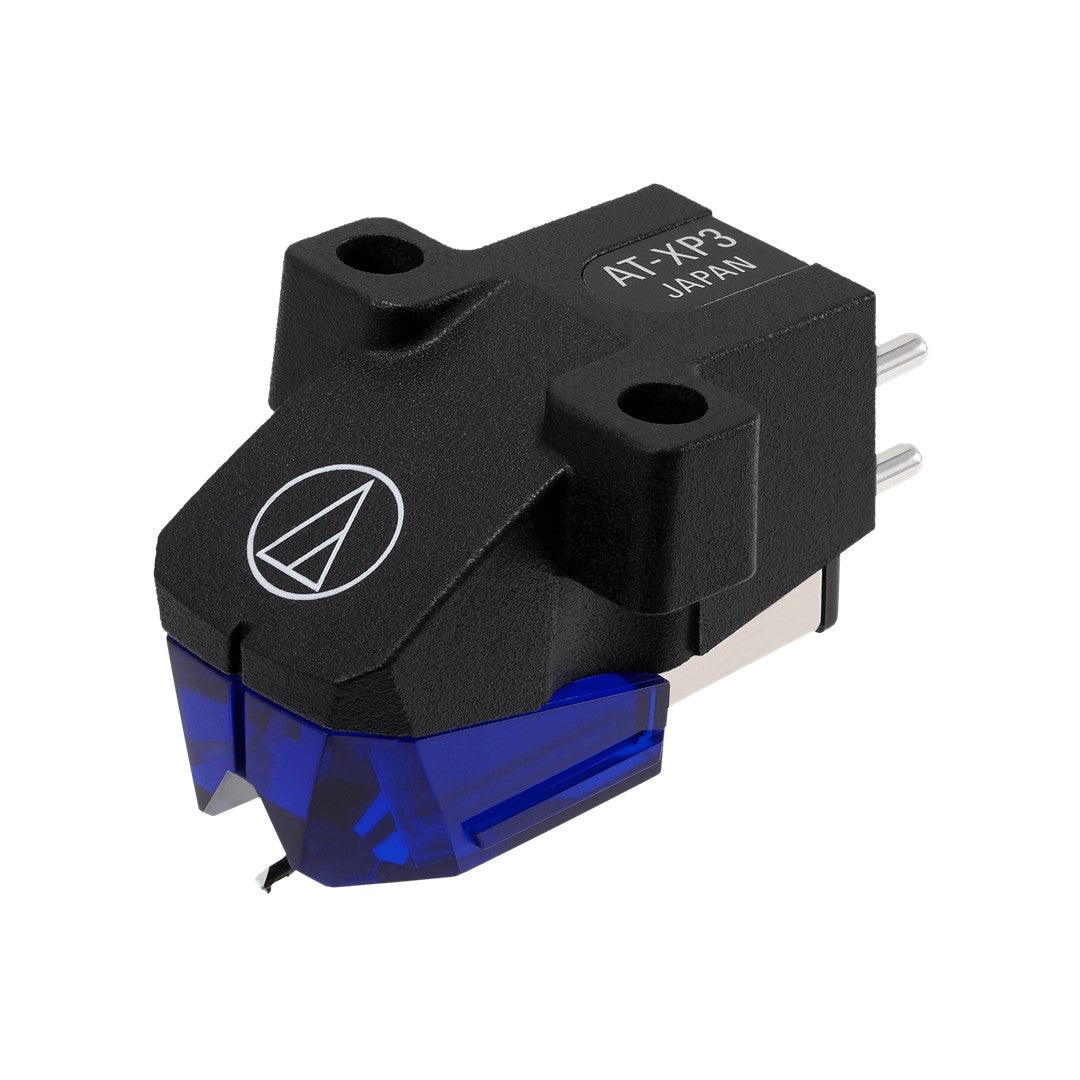

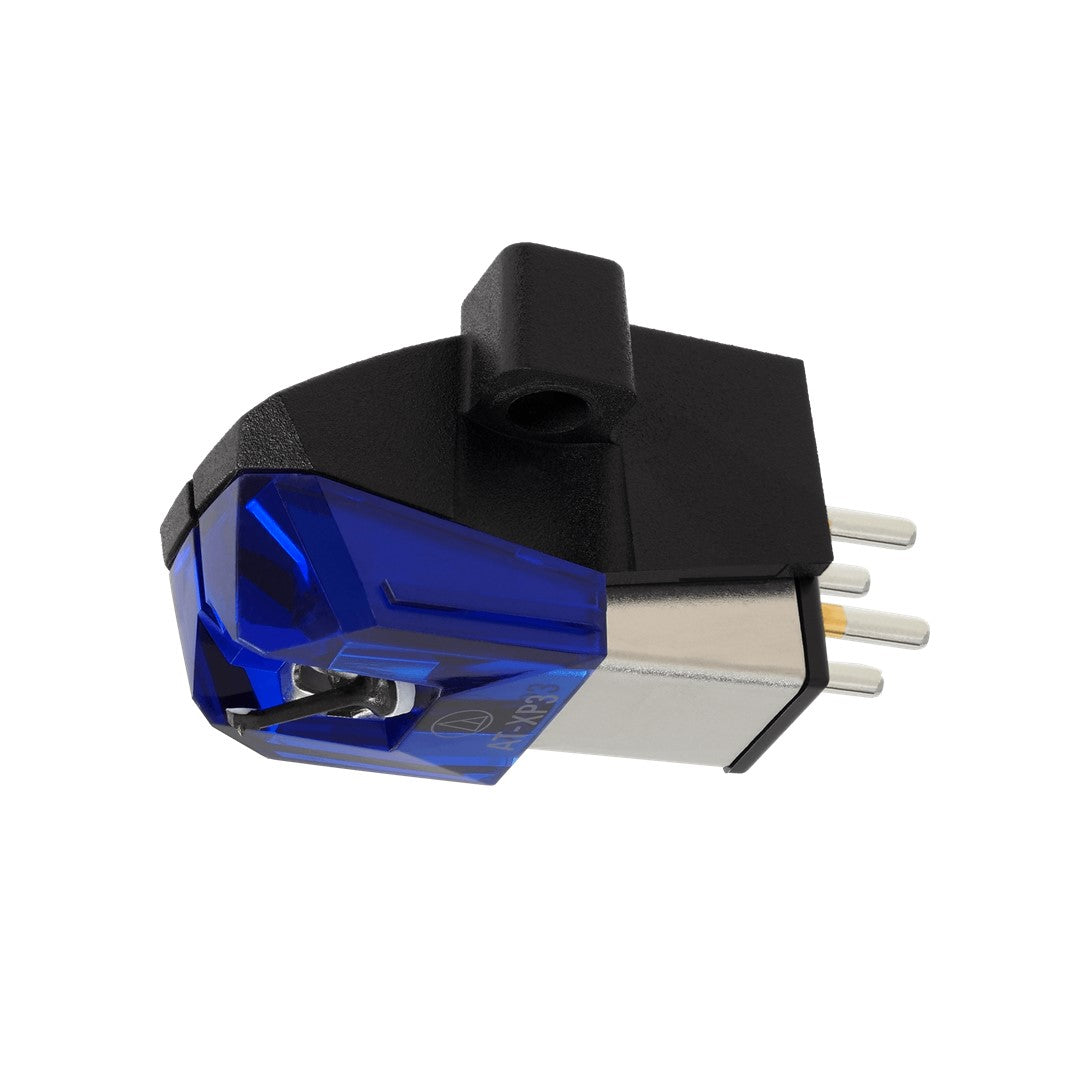

Audio-Technica AT-XP3 – Conical Stylus DJ Cartridge
Overview:
The Audio-Technica AT-XP3 Conical Stylus DJ Cartridge is built for reliable performance in demanding DJ environments. Its rigid PPS and glass fiber body provides durability and stability during regular use. A 0.6 mil conical bonded stylus delivers accurate groove tracking with clear, dynamic playback. The cartridge also provides a 5.5 mV output and adjustable tracking force. Plus, included mounting hardware simplifies installation.
Key Features:
• Rigid PPS and Glass Fiber Body: The robust construction provides stability and durability for demanding DJ use.
• 5.5 mV Output Voltage: Its powerful output produces clear, dynamic signals for strong audio performance.

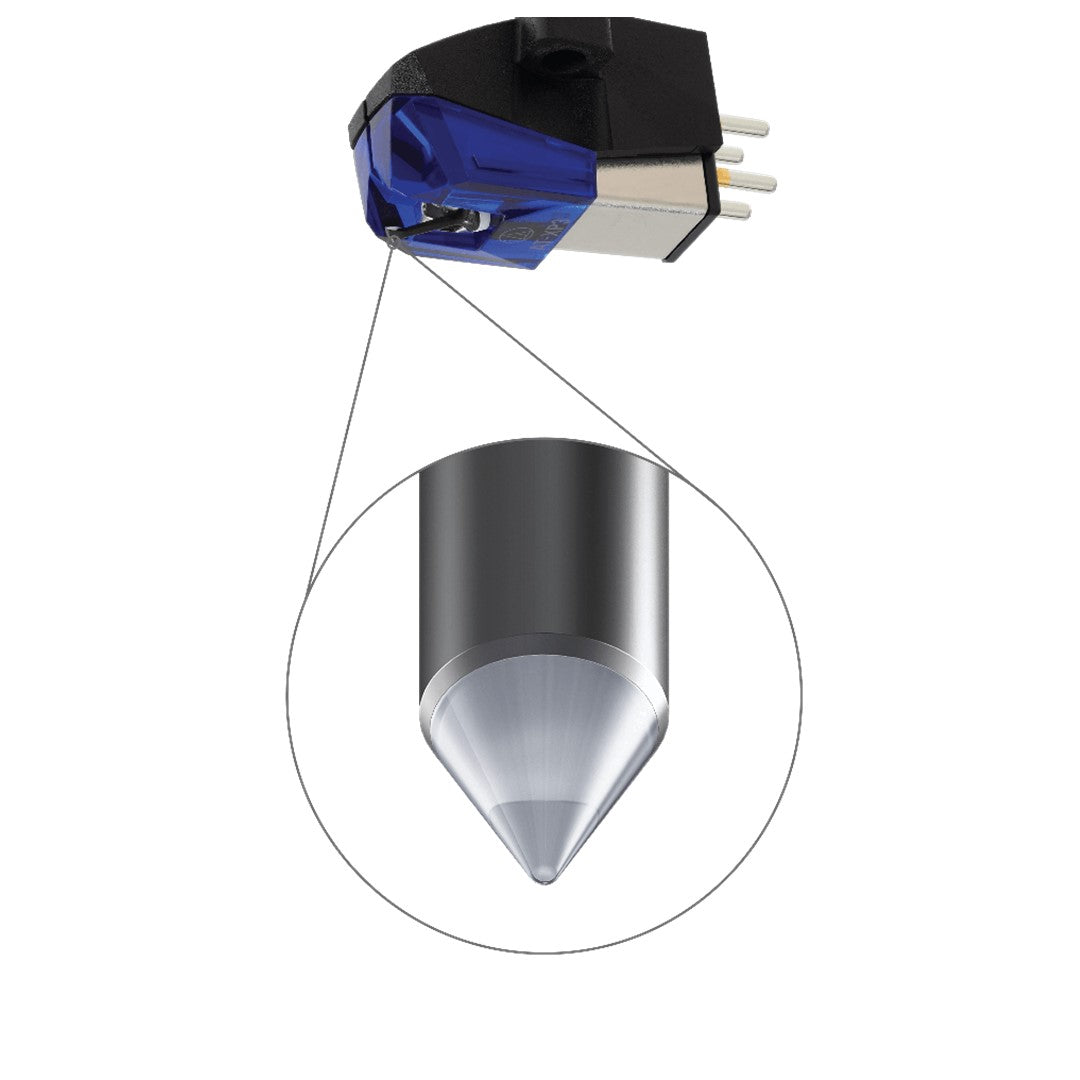

• 0.6 Mil Conical Stylus: The bonded stylus follows record grooves accurately, helping minimise distortion during playback.
• Adjustable Tracking Force: A 2.0 to 4.0 g range allows suitable tracking adjustment for different records.
• Improved Stylus Visibility: The cartridge design makes the stylus tip easier to see during positioning and adjustments.
• XP and VM95 Stylus Compatibility: Compatibility with XP and VM95 Series replacement styli provides greater replacement flexibility.
• Complete Mounting Accessories: Included screws, washers, nuts, and screwdriver make half- inch cartridge installation straightforward.
Specifications:
• Model: AT-XP3
• Stylus Shape: Conical
• Mounting: Half-inch
• Stylus Size: 0.6 mil
• Replacement Stylus: ATN-XP3
• Frequency Response: 20 to 18,000 Hz
• Channel Separation: 20 dB (1 kHz)
• Vertical Tracking Angle: 20 degrees
• Vertical Tracking Force: 2.0 to 4.0 g (standard 3g)
• Stylus Construction: Bonded Round Shank
• Recommended Load Impedance: 47,000 Ω
• Coil Impedance: 6,700 ohms (1 kHz)
• Coil Inductance: 550 mH (1 kHz)
• Output Voltage: 5.5 mV (at 1 kHz, 5 cm/sec)
• Output Channel Balance: 2.0 dB (1 kHz)
• Cantilever: Carbon reinforced ABS
• Static Compliance: 20 x 10 - 6 cm / dyne
• Dynamic Compliance: 6.0 x 10 - 6 cm / dyne (100 Hz)
• Cartridge Weight: 6.2g
• Dimensions: 17.2 x 17.8 x 28.3 mm (H x W x D)
• Recommended Load Capacitance: 100-200 pF

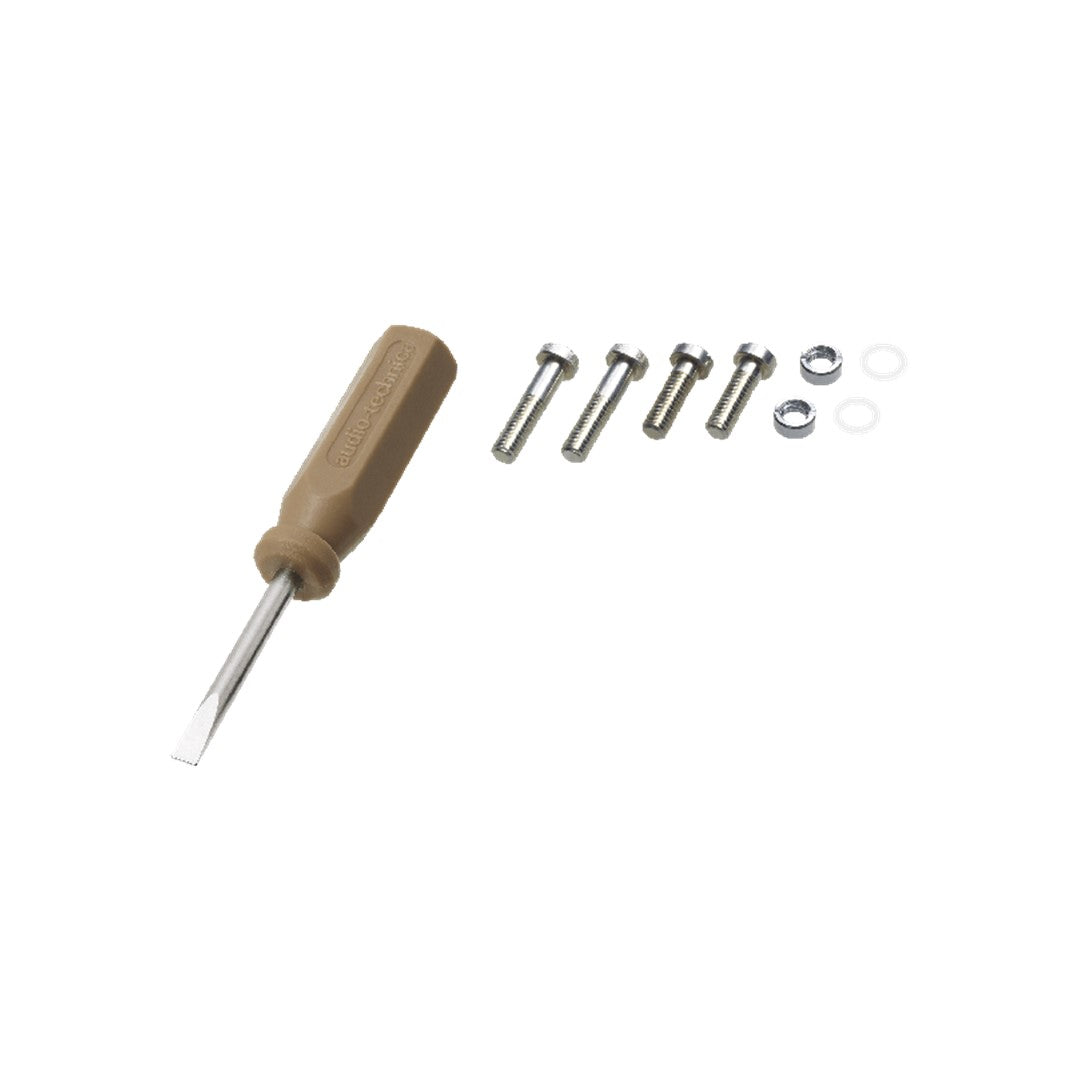

What's Included:
• Two 11 mm installation screws
• Two 8 mm installation screws
• Two washers
• Two nuts
• Non-magnetic screwdriver
A Practical Cartridge for DJ Performance:
The Audio-Technica AT-XP3 DJ Cartridge suits DJs who need dependable tracking and strong output. Its durable construction supports demanding use, while the compatible replacement stylus options add flexibility. The included hardware also makes installation more convenient.
