Audio-Technica AT-XP7 – Elliptical Stylus DJ Cartridge
Overview:
The Audio-Technica AT-XP7 Elliptical Stylus DJ Cartridge is designed for demanding DJ performance and accurate vinyl playback. Its rigid PPS and glass fiber body provides stability during use. A 0.3 x 0.7 mil elliptical bonded stylus delivers precise groove tracking and detailed sound. The 6.0 mV output provides strong, dynamic audio. Adjustable tracking force also lets DJs fine-tune the cartridge for their setup.
Key Features:
• Rigid PPS and Glass Fiber Body: The sturdy body improves stability and durability during demanding DJ performances.
• 6.0 mV High Output: The strong output delivers clear, dynamic audio for live DJ and club setups.

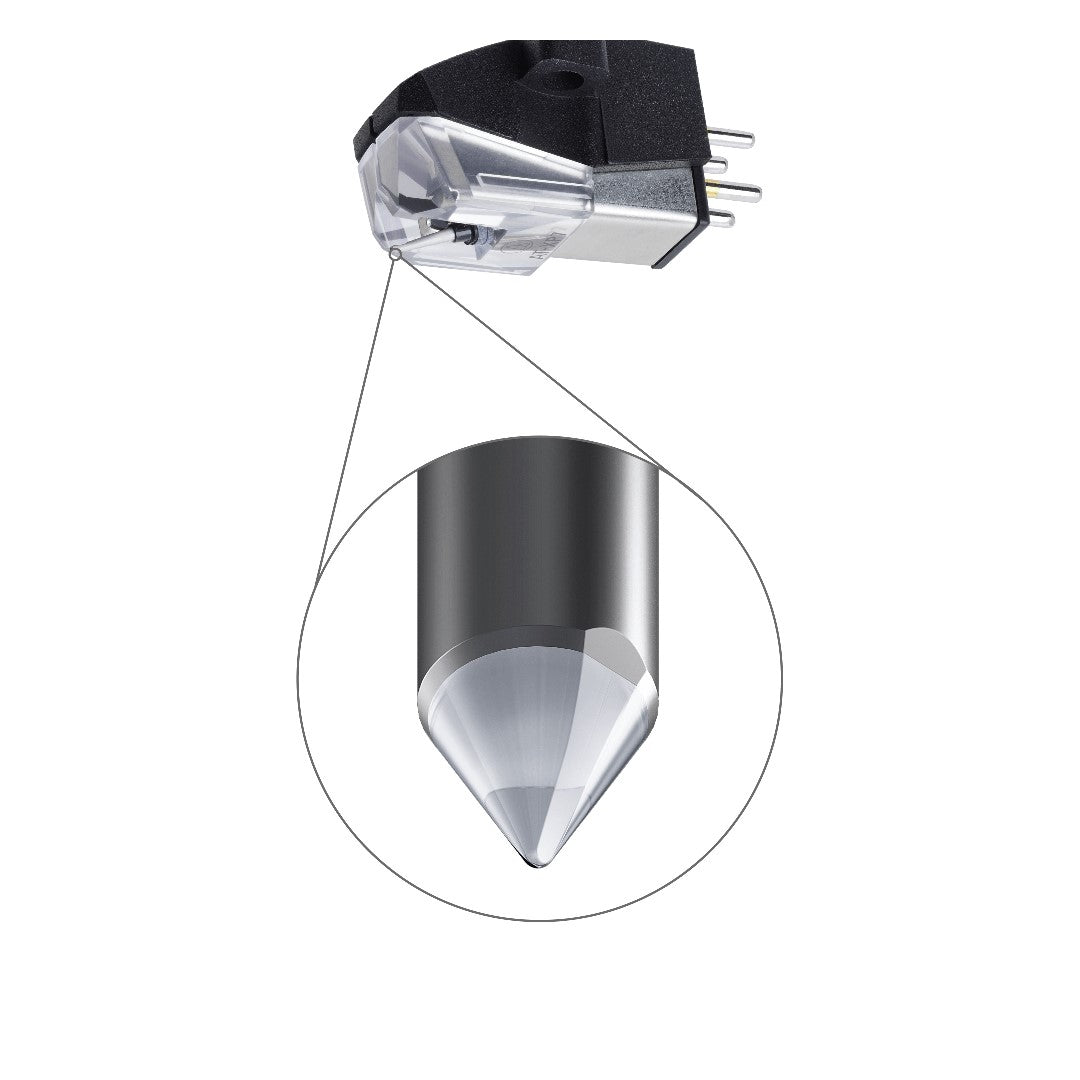

• 0.3 x 0.7 Mil Elliptical Stylus: The elliptical bonded stylus tracks grooves accurately, supporting detailed and faithful sound reproduction.
• Adjustable Tracking Force: The 2.0–4.0 g range lets DJs adjust tracking for controlled vinyl performance.
• Maximum Stylus Visibility: The visible stylus tip makes cueing and positioning easier during DJ performances.
• Advanced Suspension System: Stainless wire suspension and a double-layered rubber damper improve tracking and reduce distortion.
• Tapered Aluminum Cantilever: The tapered cantilever improves tracking precision while helping maintain clear, responsive audio.
Specifications:
• Type: VM Dual Magnet
• Stylus Shape: 0.3 x 0.7 mil elliptical bonded
• Mounting Type: Half-inch
• Replacement Stylus: ATN-XP7
• Dimensions: 17.2 mm (0.68″) H × 17.8 mm (0.67″) W × 28.3 mm (1.20″) D
• Weight: 6.2 g (0.22 oz)
• Stylus Construction: Bonded round shank
• Cantilever: Tapered aluminum pipe
• Output Voltage: 6.0 mV (1 kHz, 5 cm/sec)
• Frequency Response: 20-20,000 Hz
• Channel Separation: 22 dB (1 kHz)
• Output Channel Balance: 2.0 dB (1 kHz)
• Vertical Tracking Angle: 20°
• Tracking Force Range: 2.0-4.0 g (3.0 g standard)
• Static Compliance: 20 x 10⁻⁶ cm/dyne
• Dynamic Compliance: 8.0 x 10⁻⁶ cm/dyne (100 Hz)
• Coil Impedance: 6.7 kΩ (1 kHz)
• DC Resistance: 990 Ω
• Coil Inductance: 1.0 H (1 kHz)
• Recommended Load Impedance: 47,000 Ω
• Recommended Load Capacitance: 100-200 pF
What's Included:
• Cartridge installation slotted screws (11.0 mm x 2)
• Cartridge installation slotted screws (8.0 mm x 2)
• Washers x 2
• Round nuts x 2
• Non-magnetic screwdriver x 1
Precision Tracking for DJ Performance:
The Audio-Technica AT-XP7 suits DJs who demand accurate tracking and strong audio output. Its durable construction supports demanding use, while the elliptical stylus delivers detailed playback. Furthermore, adjustable tracking force and improved stylus visibility provide greater control during cueing, mixing, and performance.
