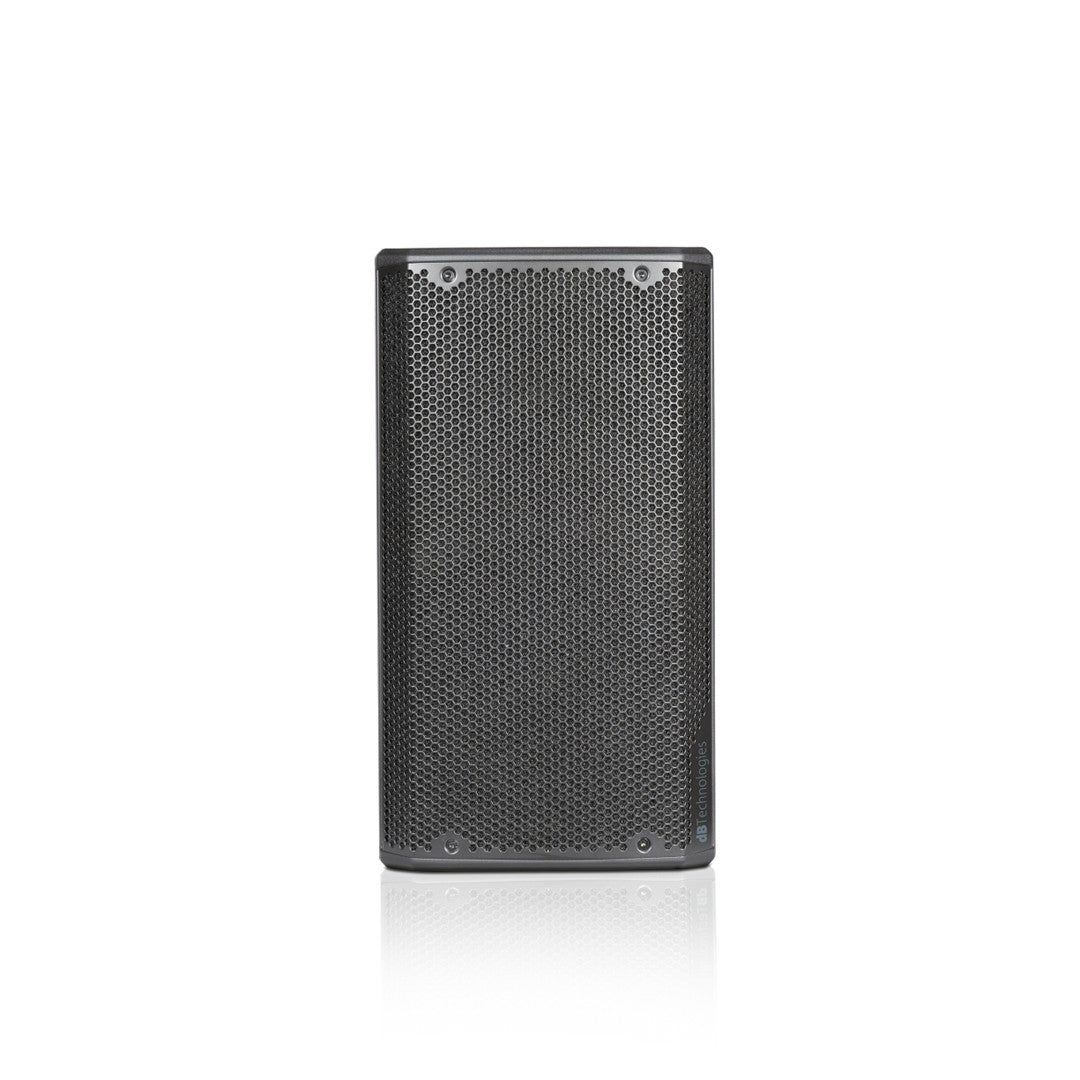

dB Technologies OPERA 10 - 10" 2-Way Active Speaker Front

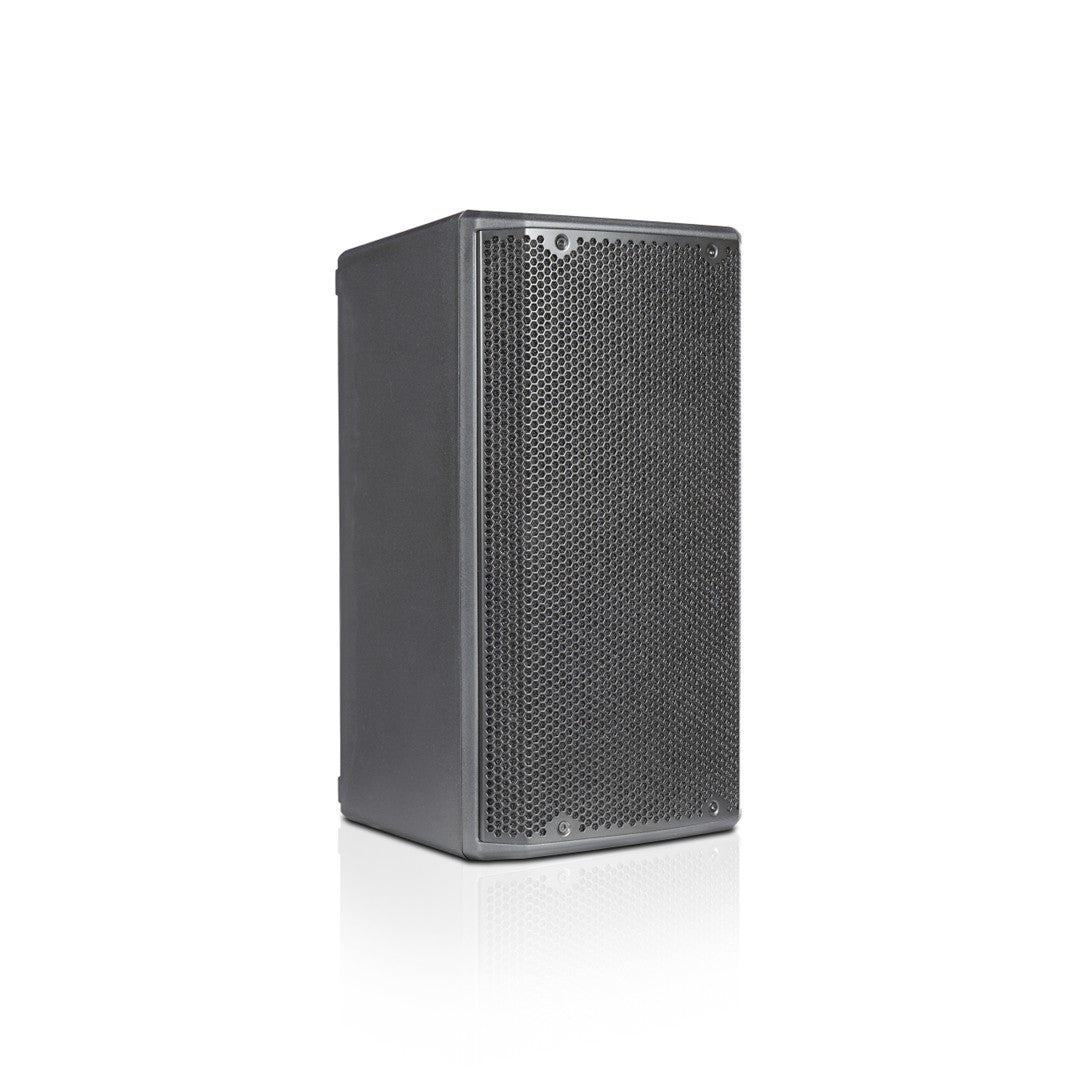

dB Technologies OPERA 10 - 10" 2-Way Active Speaker Front Left

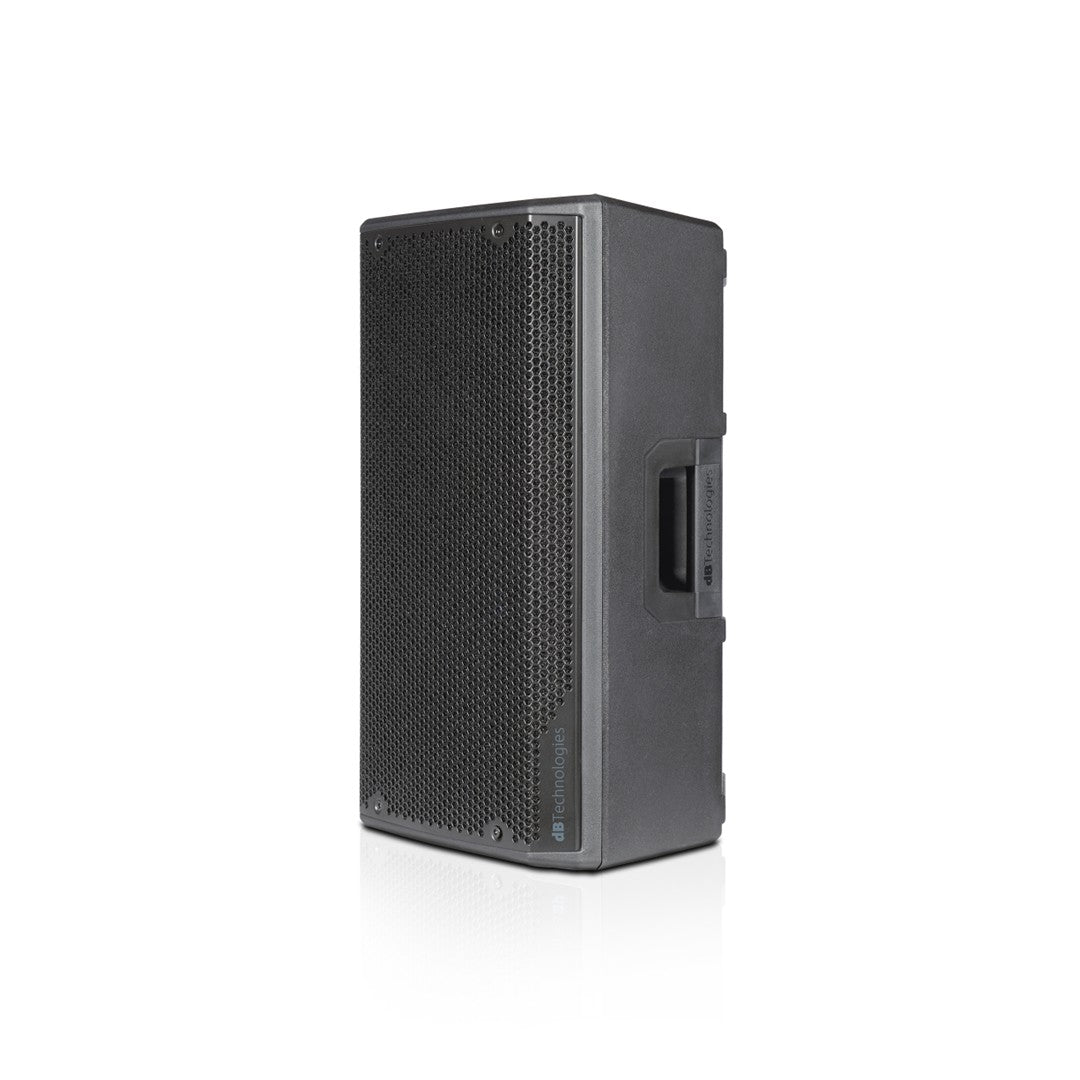

dB Technologies OPERA 10 - 10" 2-Way Active Speaker Front Right

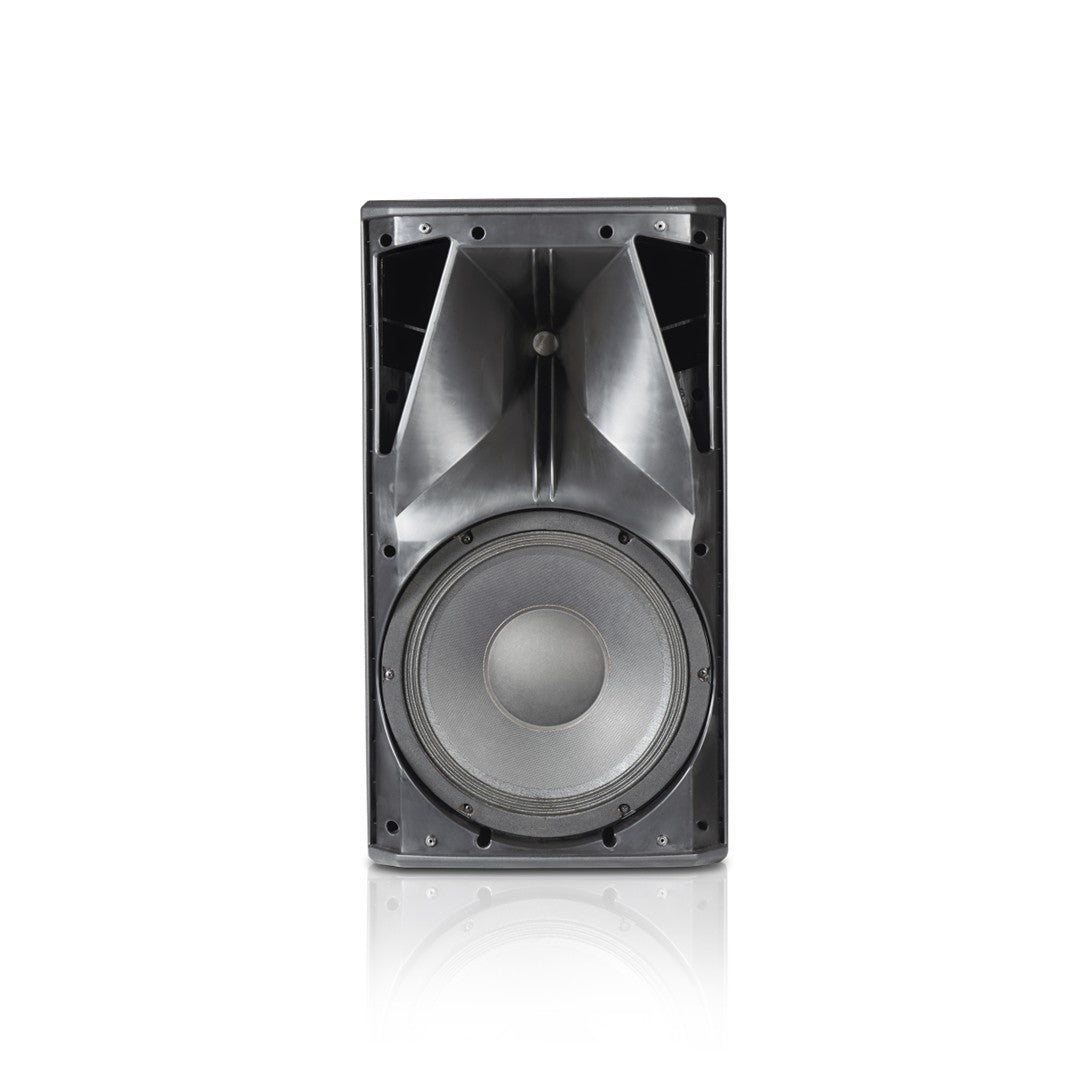

dB Technologies OPERA 10 - 10" 2-Way Active Speaker Front No Grille

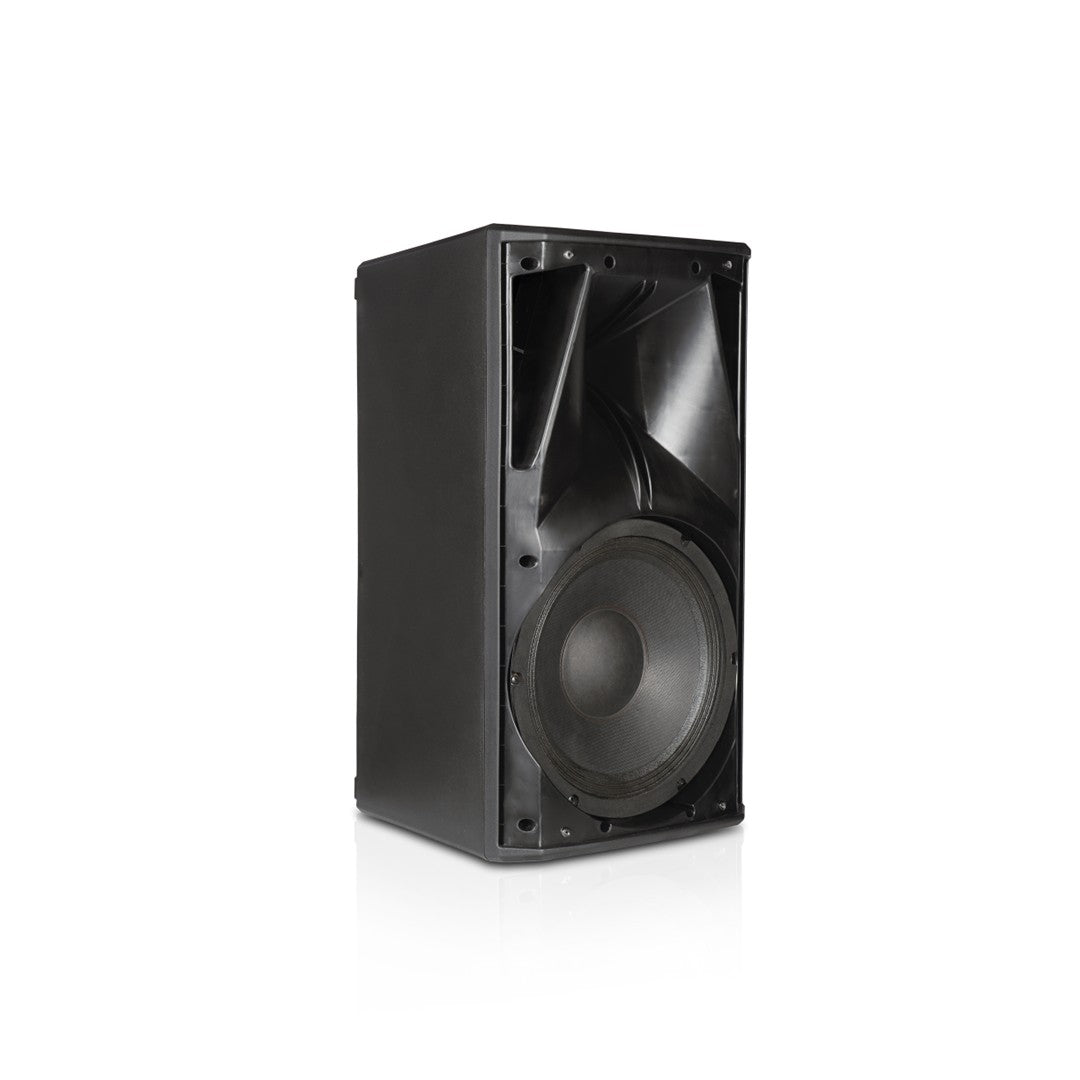

dB Technologies OPERA 10 - 10" 2-Way Active Speaker Front Left No Grille

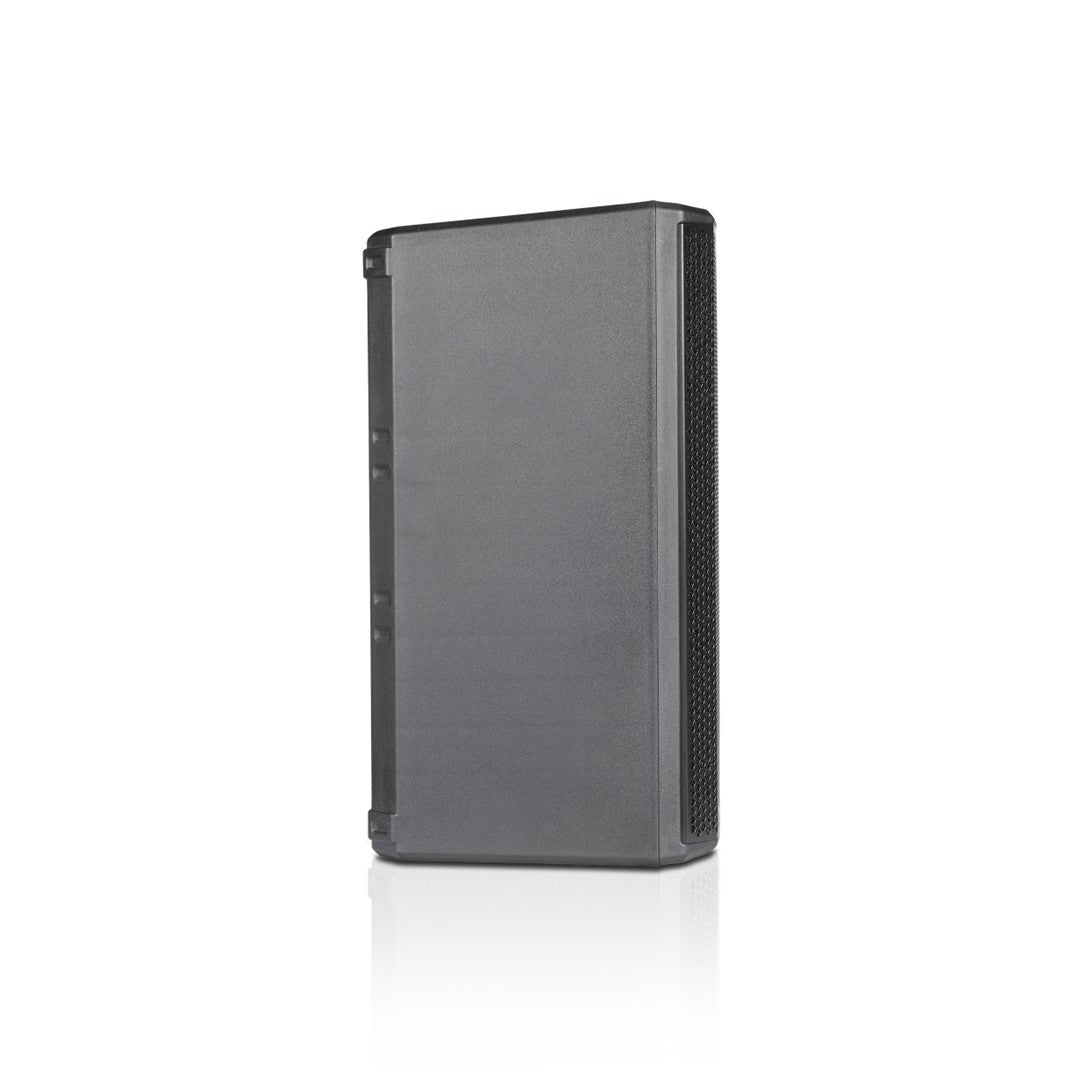

dB Technologies OPERA 10 - 10" 2-Way Active Speaker Left Side

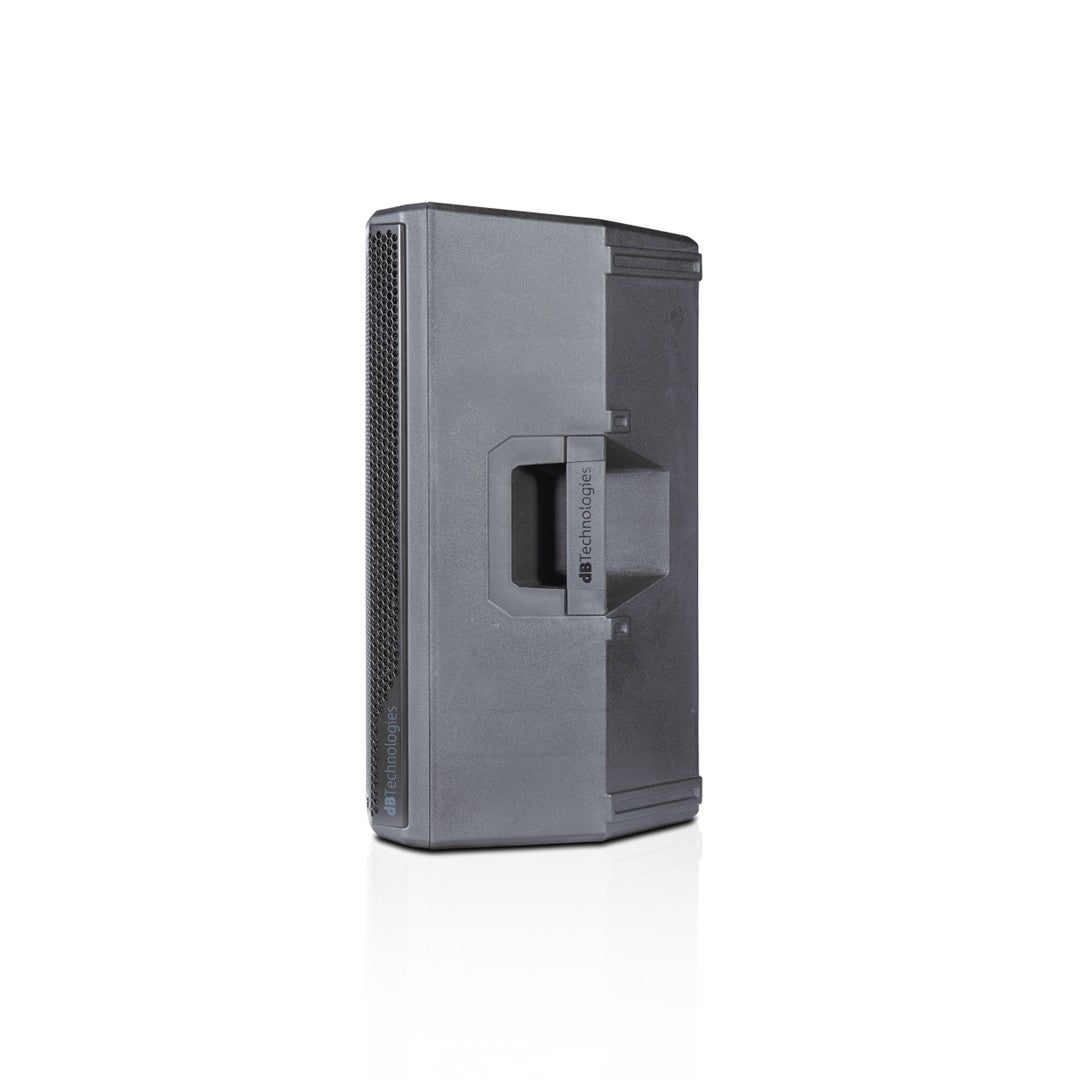

dB Technologies OPERA 10 - 10" 2-Way Active Speaker Right Side
dB Technologies OPERA 10 - 10" 2-Way Active Speaker Front Top Side

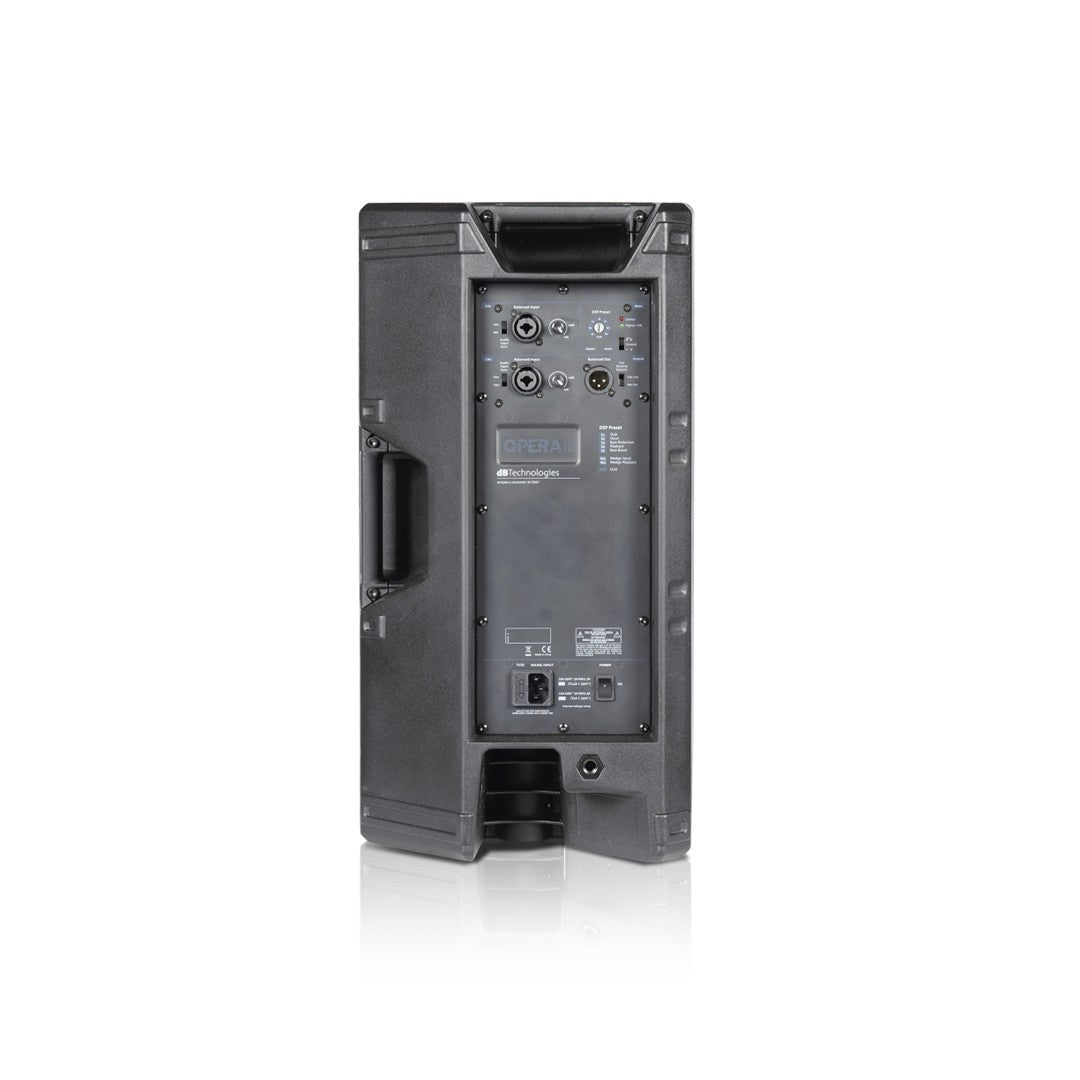

dB Technologies OPERA 10 - 10" 2-Way Active Speaker Rear

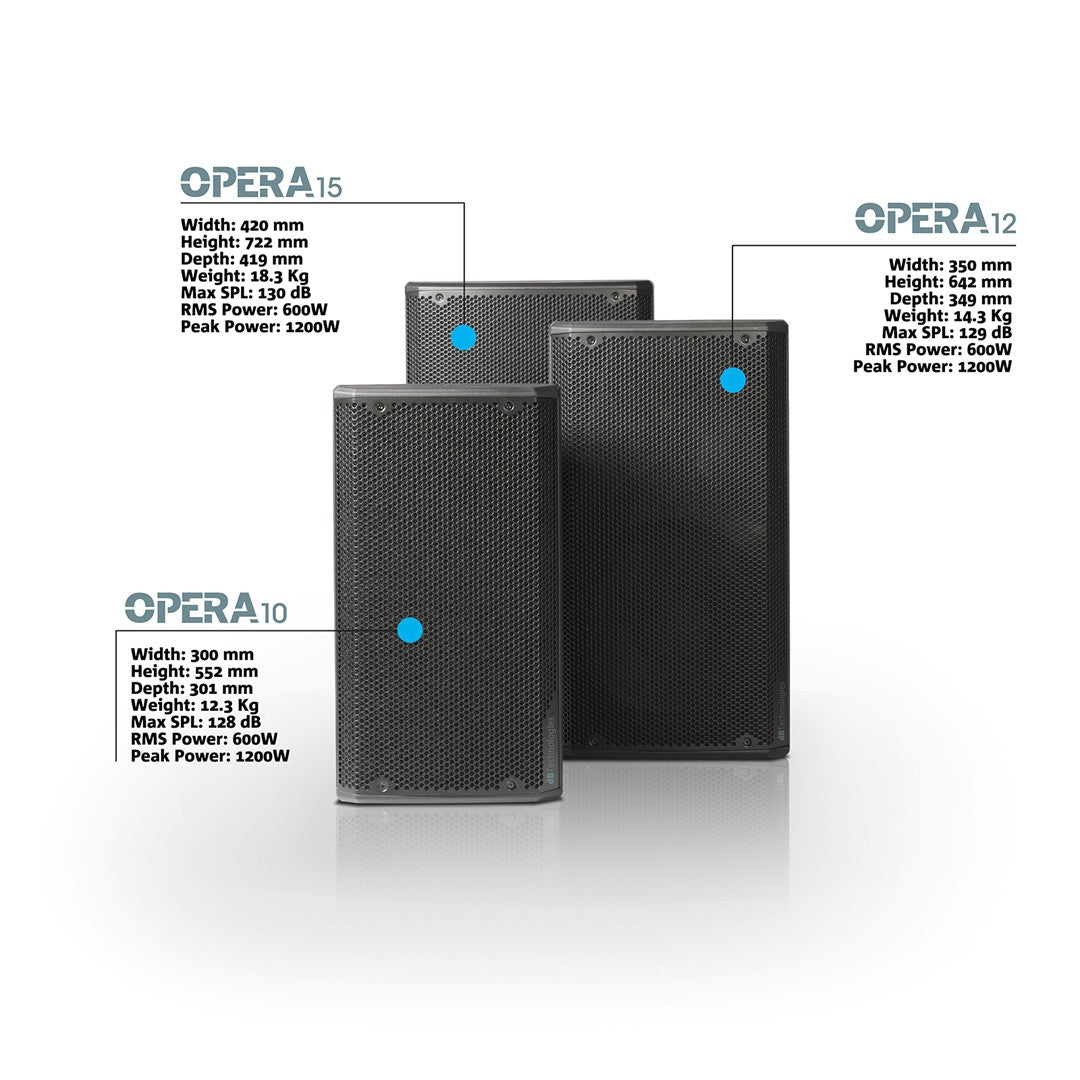

dB Technologies OPERA 10 - 10" 2-Way Active Speaker OPERA Series
DB Technologies

dB Technologies OPERA 10 - 10" 2-Way Active Speaker

Overview:

The dB Technologies OPERA 10 10" 2-Way Active Speaker combines powerful amplification with flexible sound control. Its 10-inch woofer and 1-inch compression driver deliver dynamic audio for playback and live music. A redesigned asymmetrical horn improves coverage across different listening positions. Meanwhile, advanced DSP processing helps maintain consistent output. The durable polypropylene cabinet and ergonomic handles also make the speaker practical for mobile setups.

Key Features:

•    600W RMS Class D Amplification: The Class D amplifier produces powerful output, providing             600W RMS and 1200W peak power.
•    Advanced DSP Control: A 56-bit DSP controller with FIR filters maintains accurate and                          consistent audio performance.
•    Redesigned Asymmetrical Horn: The horn controls vertical and horizontal dispersion, helping          deliver more even sound coverage.
•    Flexible Input Configuration: Two combo inputs accept MIC-Line and MIC-Instrument signals            for adaptable audio setups.
•    Eight EQ Presets: The rotary encoder accesses eight EQ presets, helping users adjust sound              for different environments.
•    Durable Portable Cabinet: Polypropylene construction and ergonomic handles support reliable        use while simplifying transportation and setup.

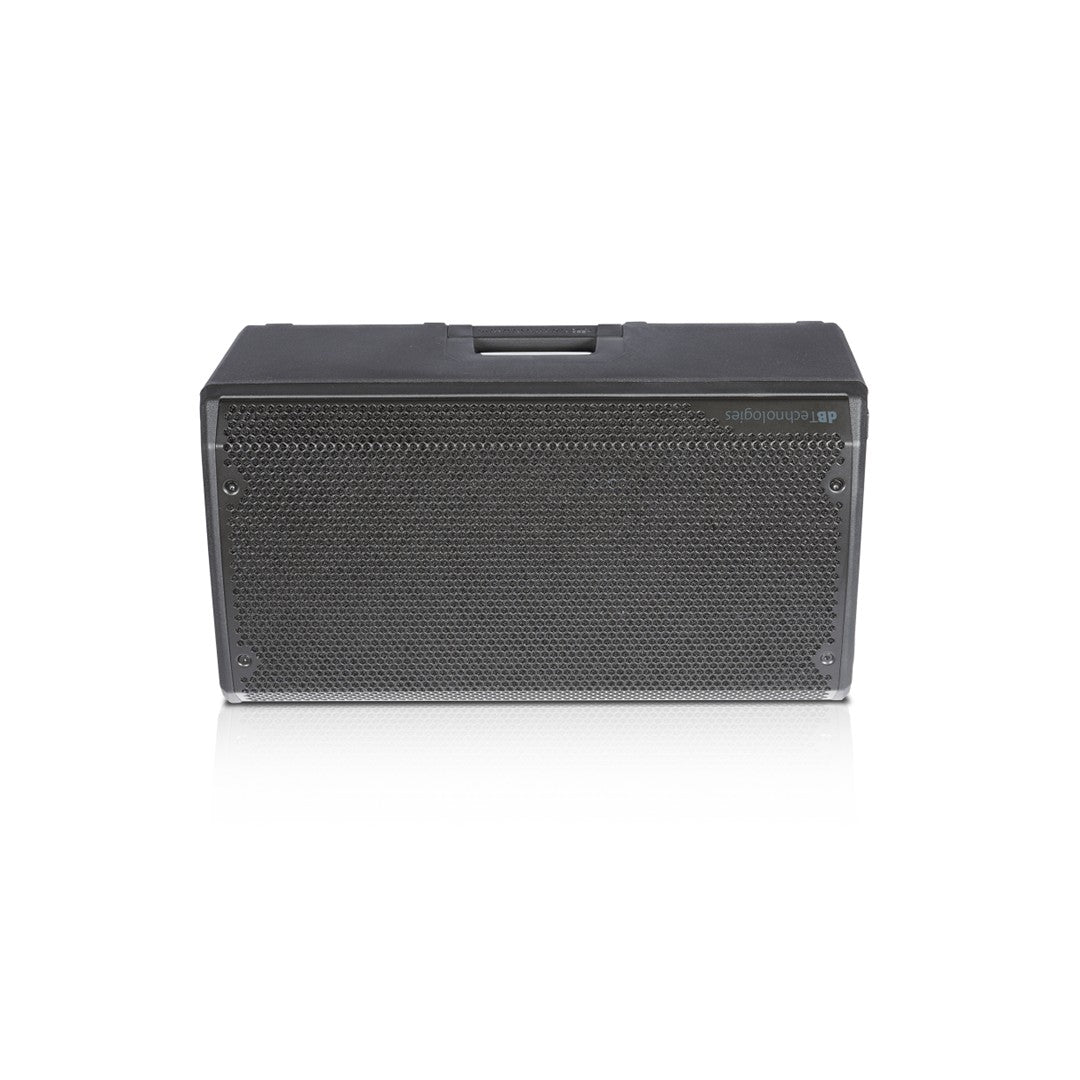

•    Stage Monitor Function: The OPERA 10 works as a stage monitor with a 45° tilt angle for                        performer monitoring.

Specifications:

•    Speaker Type: 2-Way Active Speaker
•    Frequency Response (-10 dB): 58 – 20,000 Hz
•    Frequency Response (-3 dB): 70 – 19,600 Hz
•    Max SPL: 128 dB
•    High-Frequency Driver: 1″ exit, 1.4″ voice coil compression driver
•    Low-Frequency Driver: 10″ woofer with 2″ voice coil
•    Amplifier Class: Class D
•    RMS Power: 600 W
•    Peak Power: 1200 W
•    DSP Controller: 56-bit
•    AD/DA Converter: 24-bit/48 kHz
•    Crossover Frequency: 2000 Hz
•    Limiter: Peak, RMS, Thermal
•    Input: 1x Combo (XLR/6.3 mm Jack) MIC/Line; 1x Combo (XLR/6.3 mm Jack) MIC
•    Output: Selectable Link CH1 or Mix CH 1+2
•    EQ Presets: 8
•    Housing: Polypropylene
•    Grille: Full grille design
•    Dimensions: 300 mm (W) x 552 mm (H) x 301 mm (D)
•    Weight: 12.3 kg
•    Stage Monitor Angle: 45°

Built for Flexible Live Audio Applications:

The dB Technologies OPERA 10 suits professionals handling live music, playback, and stage monitoring. Its powerful output, adaptable inputs, DSP control, and portable construction support a wide range of audio setups.
