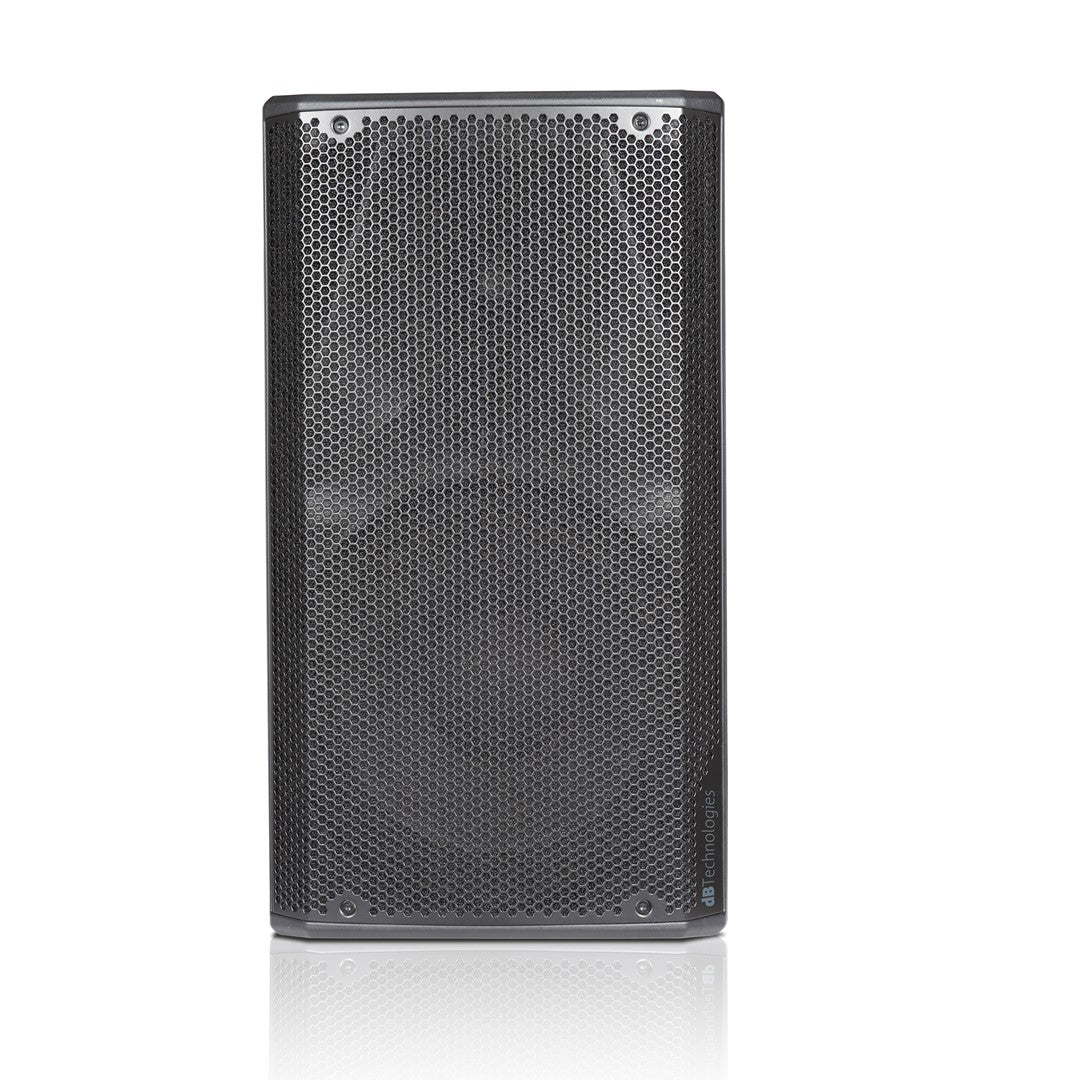

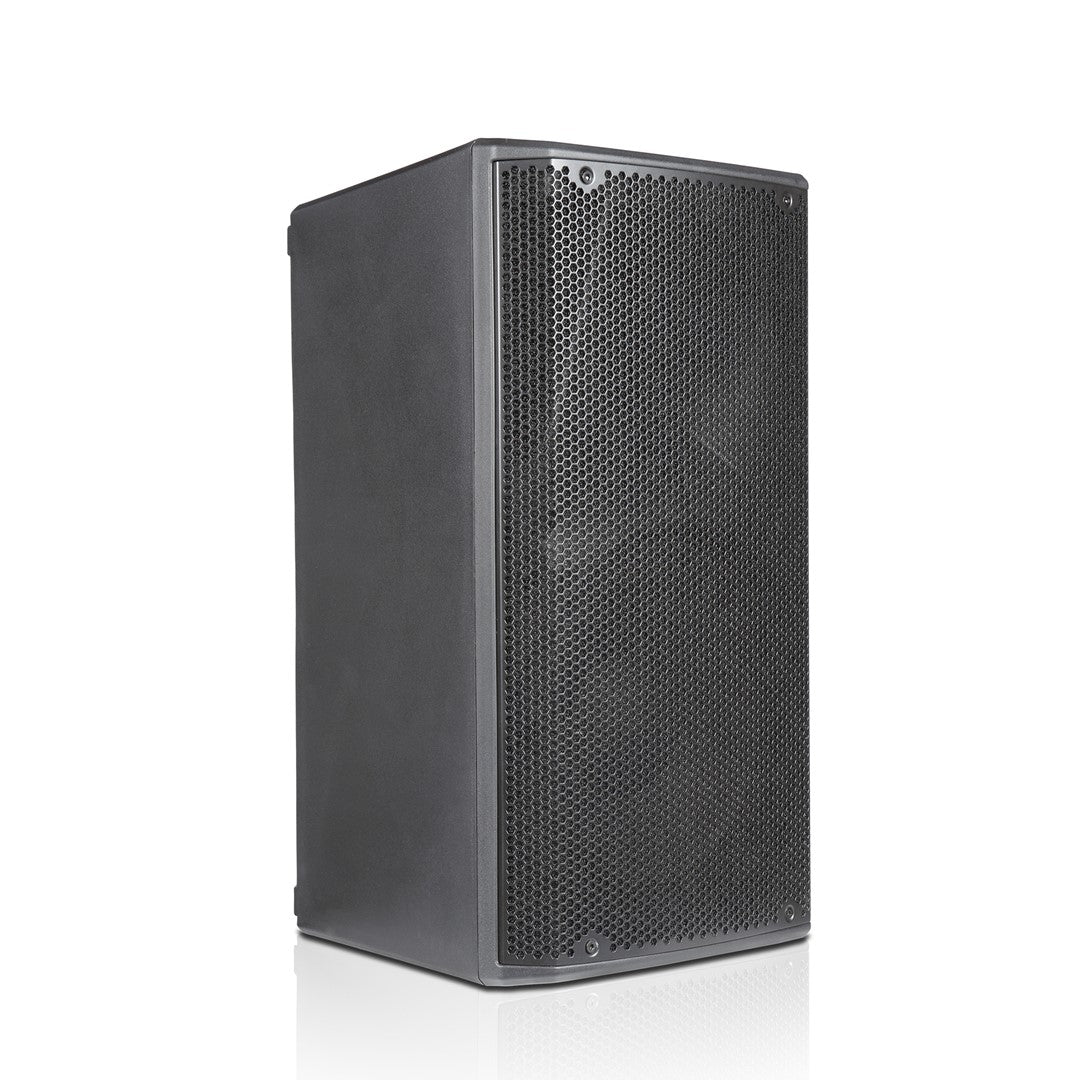

dB Technologies OPERA 12 - 12" 2 Way Active Speaker
Overview:
The dB Technologies OPERA 12 12" 2-Way Active Speaker provides powerful audio for playback and live music. Its 600 W RMS Class D amplifier delivers up to 1200 W peak power. Advanced DSP processing and Linear Phase FIR Filters support clear, coherent sound. The redesigned asymmetrical horn improves sound distribution across different listening areas. A durable polypropylene cabinet and practical handles also make setup easier.
Key Features
• 600 W RMS Class D Amplification: The Class D amplifier delivers 600 W RMS and reaches 1200 W peak power for demanding performances.
• Redesigned Asymmetrical Horn: The asymmetrical horn shapes vertical and horizontal dispersion for more controlled sound coverage.
• Advanced DSP Processing: The 56-bit DSP uses Linear Phase FIR Filters to support accurate and coherent audio reproduction.
• Flexible Input Configuration: Two combo inputs accept MIC/Line and MIC/Instrument signals for versatile audio system connections.
• Selectable Signal Output: Choose CH1 Link or Mix CH 1+2 output to suit different live sound routing requirements.
• Eight EQ Presets: The rotary encoder provides eight presets, allowing quick adjustments for different performance environments.

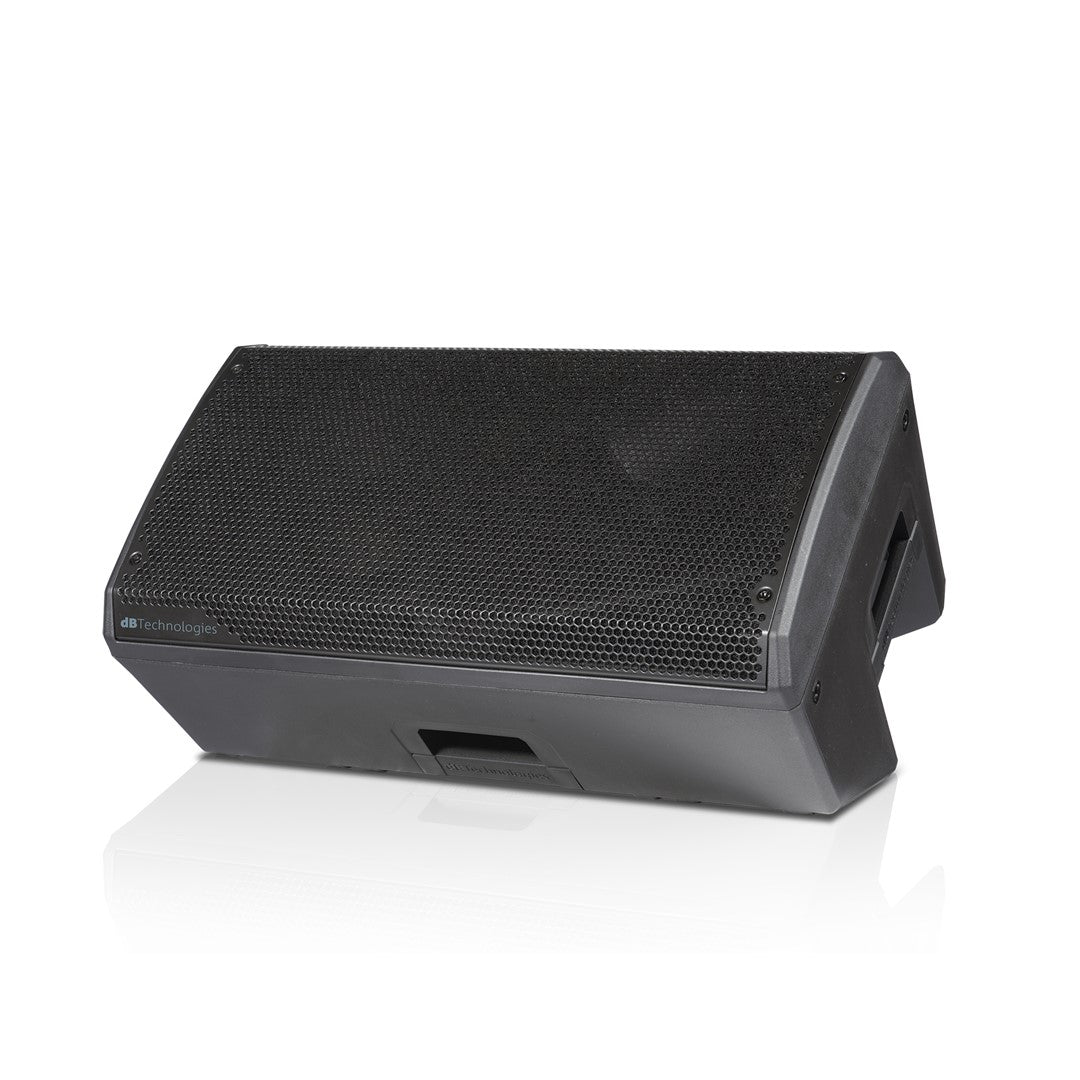

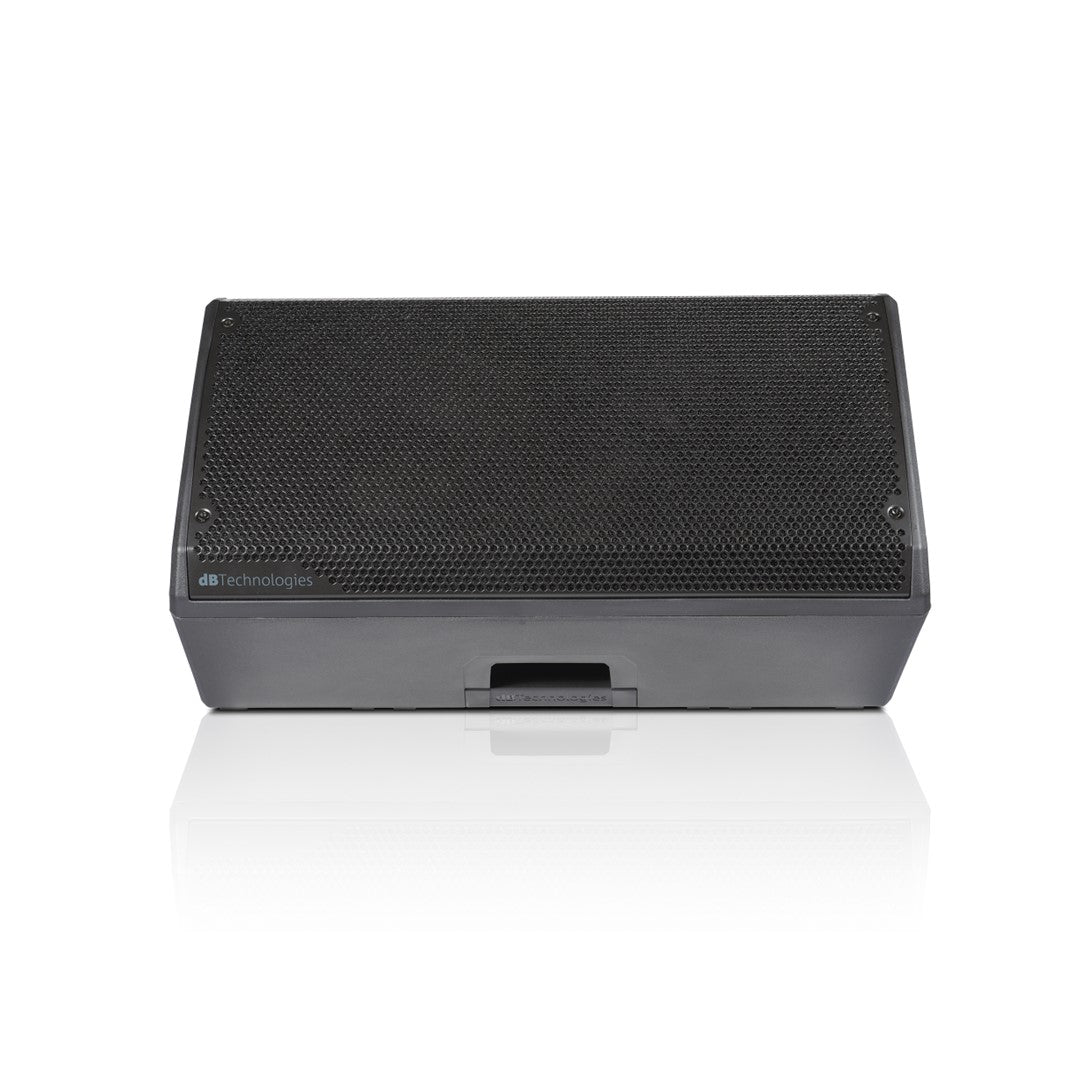

• Stage Monitor Function: The 45° monitor angle lets performers use the speaker for practical on-stage monitoring.
Specifications:
• Speaker Type: 2-Way Active Speaker
• Frequency Response [-10dB]: 52 – 20,000 Hz
• Frequency Response [-3dB]: 67 – 19,600 Hz
• Max SPL: 129 dB
• HF Driver: 1″ Exit, 1.4″ Voice Coil
• HF Type: Compression Driver
• Horizontal Directivity: 100° (85° up / 120° down)
• Vertical Directivity: 85° (+25° / -60°)
• Horn: Asymmetrical Horn
• LF Driver: 12″, 2″ Voice Coil
• Amplifier Technology: SMPS Power Supply Dual Range
• Amplifier Class: Class D
• RMS Power: 600 W
• Peak Power: 1200 W
• Controller: DSP 56-bit
• AD/DA Converter: 24 bit / 48 kHz
• System Presets: Rotary Encoder (8 Presets)
• Crossover Frequency: 2000 Hz
• Limiter: Peak, RMS, Thermal
• Advanced DSP Functions: Linear Phase FIR Filters
• Signal Input: 1x Combo (XLR/Jack 6.3 mm) MIC/Line
• Signal Input: 1x Combo (XLR/Jack 6.3 mm) MIC/Instrument
• Signal Output: 1x XLR Male (CH1 Link/Mix OUT) Selectable
• Housing Material: Polypropylene (PP)
• Grille: Full Grille

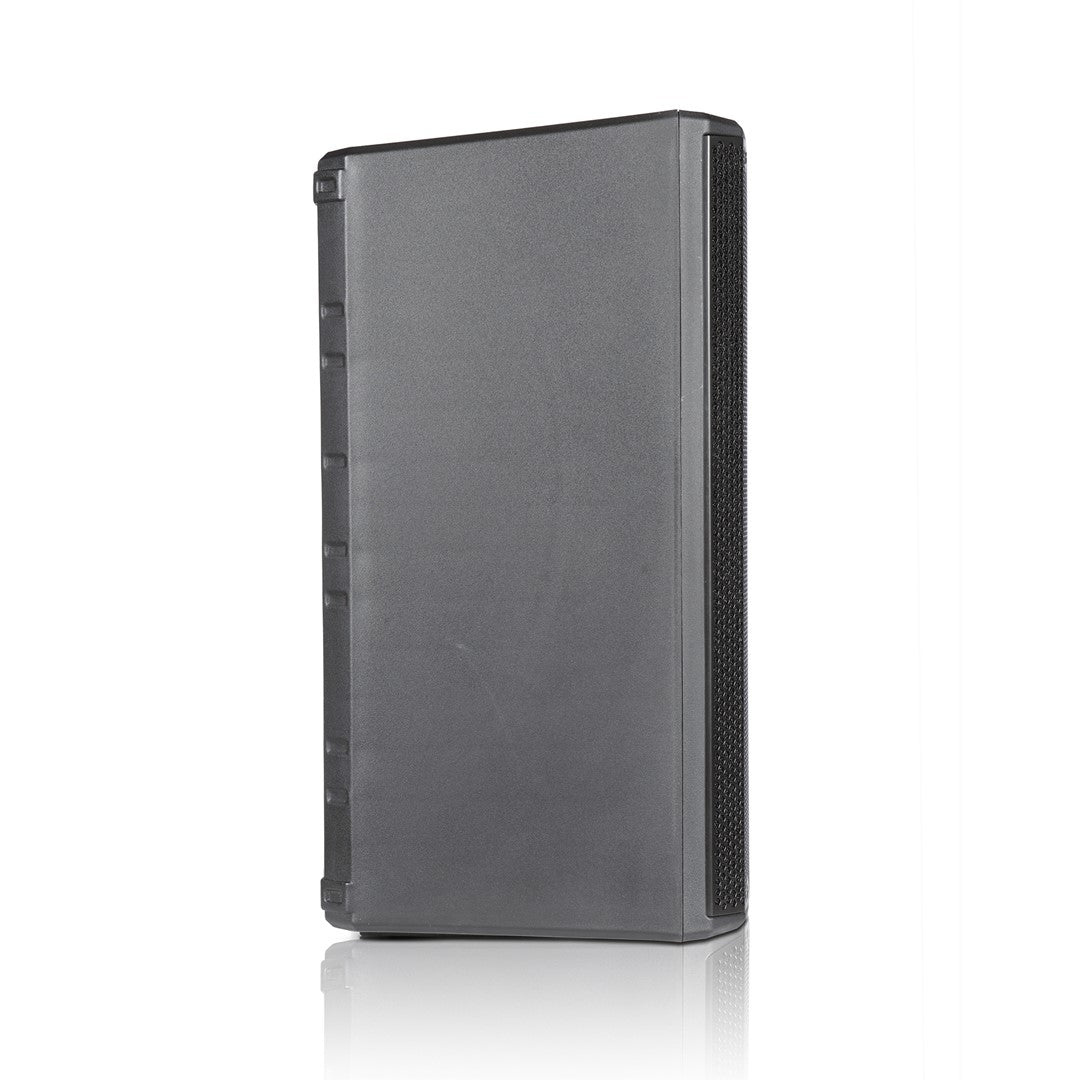

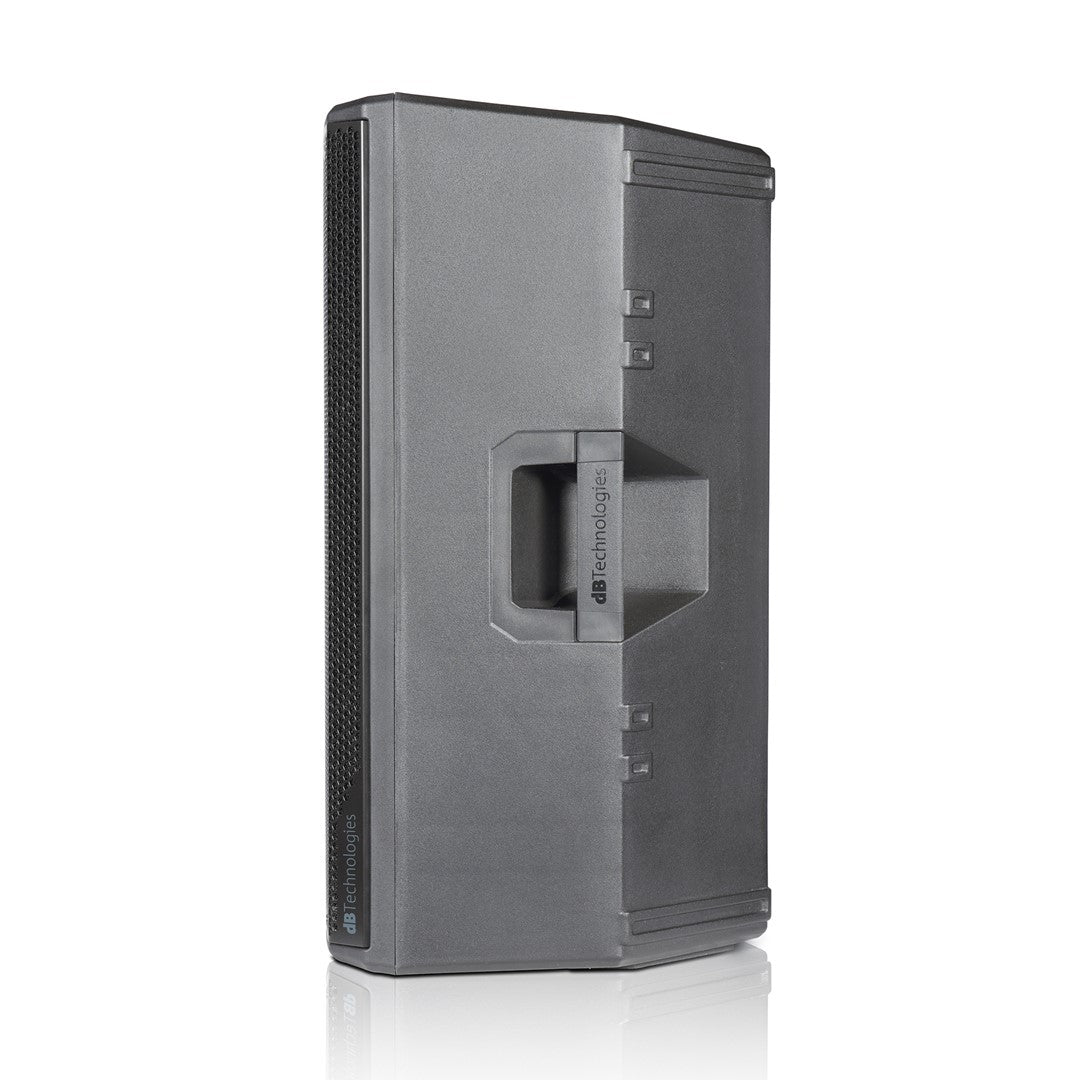

• Handles: 1 on Left Side, 1 on Top
• Rigging Points: 2x M10 on Top, 1x M10 on Back
• Pole Mount: 36 mm
• Monitor Angles: 45°

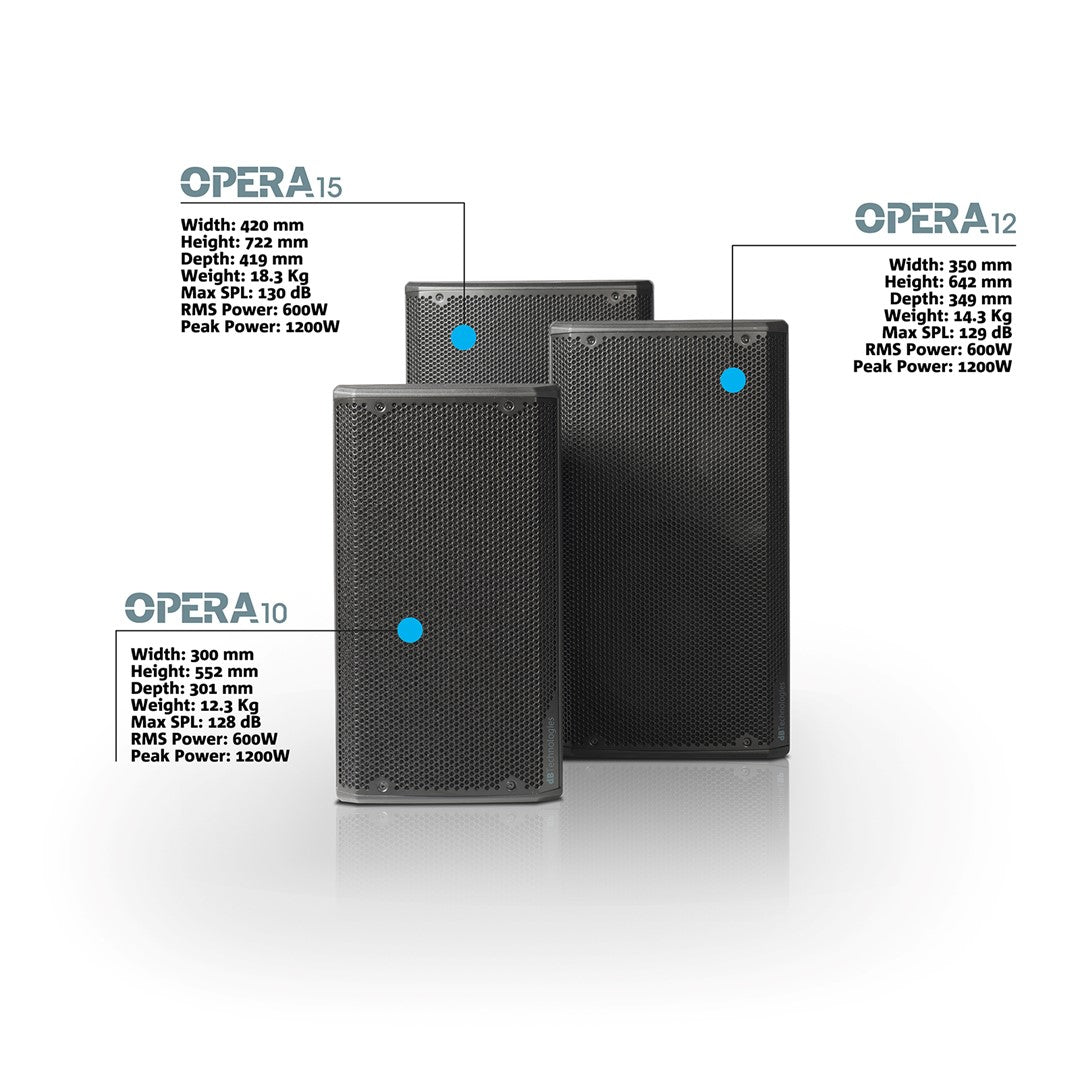

• Width: 350 mm (13.78 in)
• Height: 642 mm (25.28 in)
• Depth: 349 mm (13.74 in)
• Weight: 14.3 kg (31.53 lbs)
A Practical Choice for Live Sound:
The dB Technologies OPERA 12 suits sound engineers and performers requiring powerful, flexible audio. Its amplification, DSP processing, versatile inputs, and monitor capability support varied live sound applications. The 14.3 kg polypropylene cabinet also provides practical handling for setup and transport.
