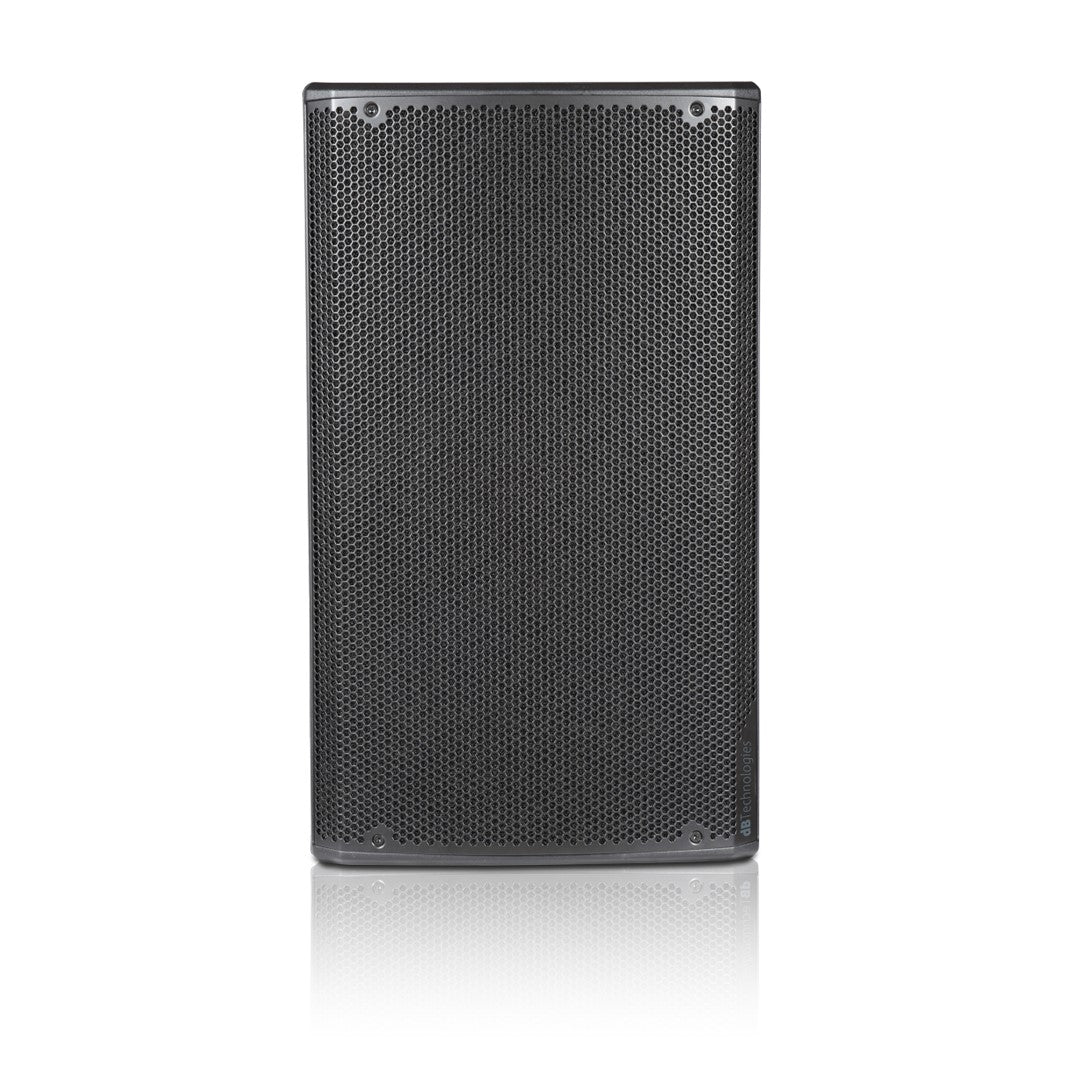

dB Technologies OPERA 15 - 15" 2 Way Active Speaker Front

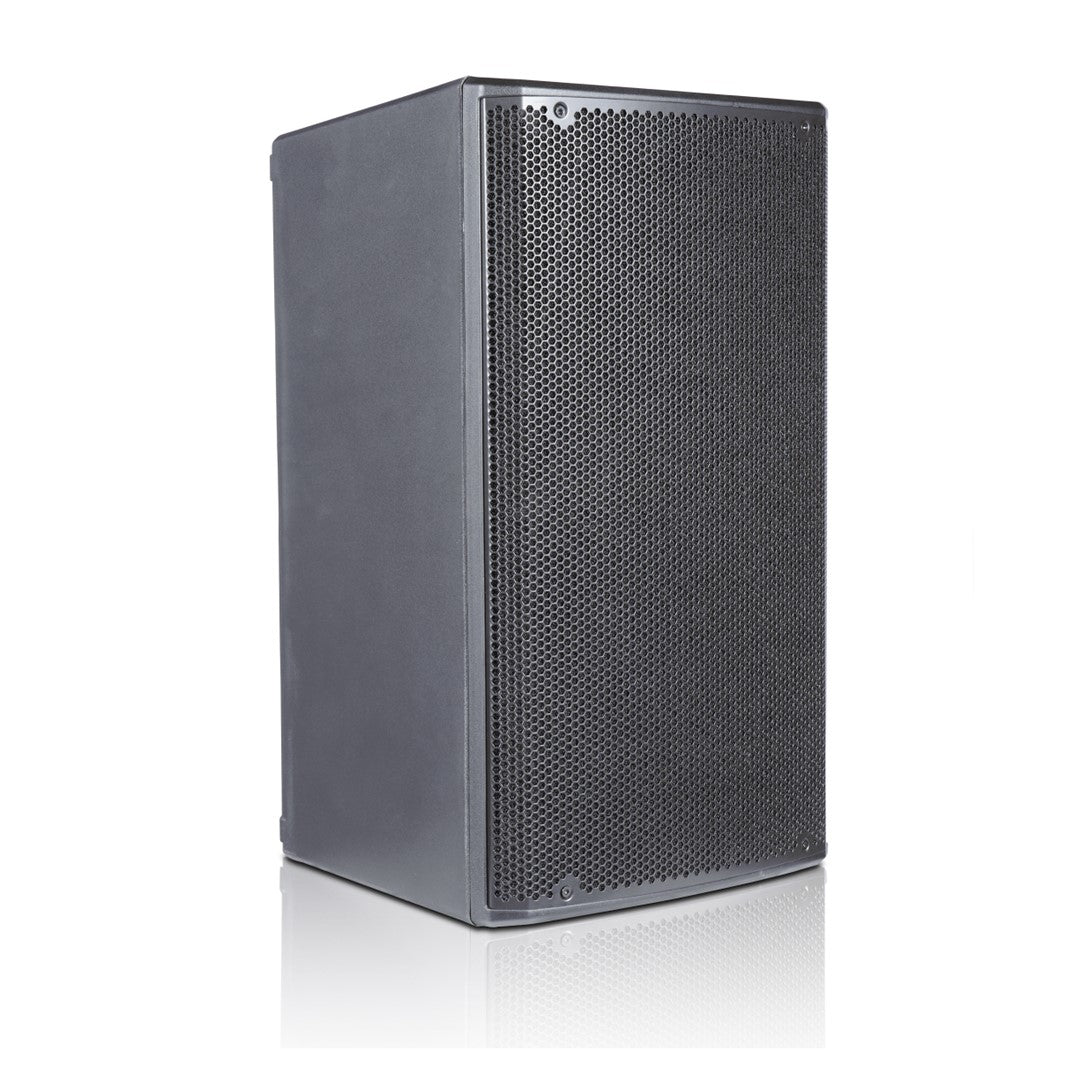

dB Technologies OPERA 15 - 15" 2 Way Active Speaker Front Left

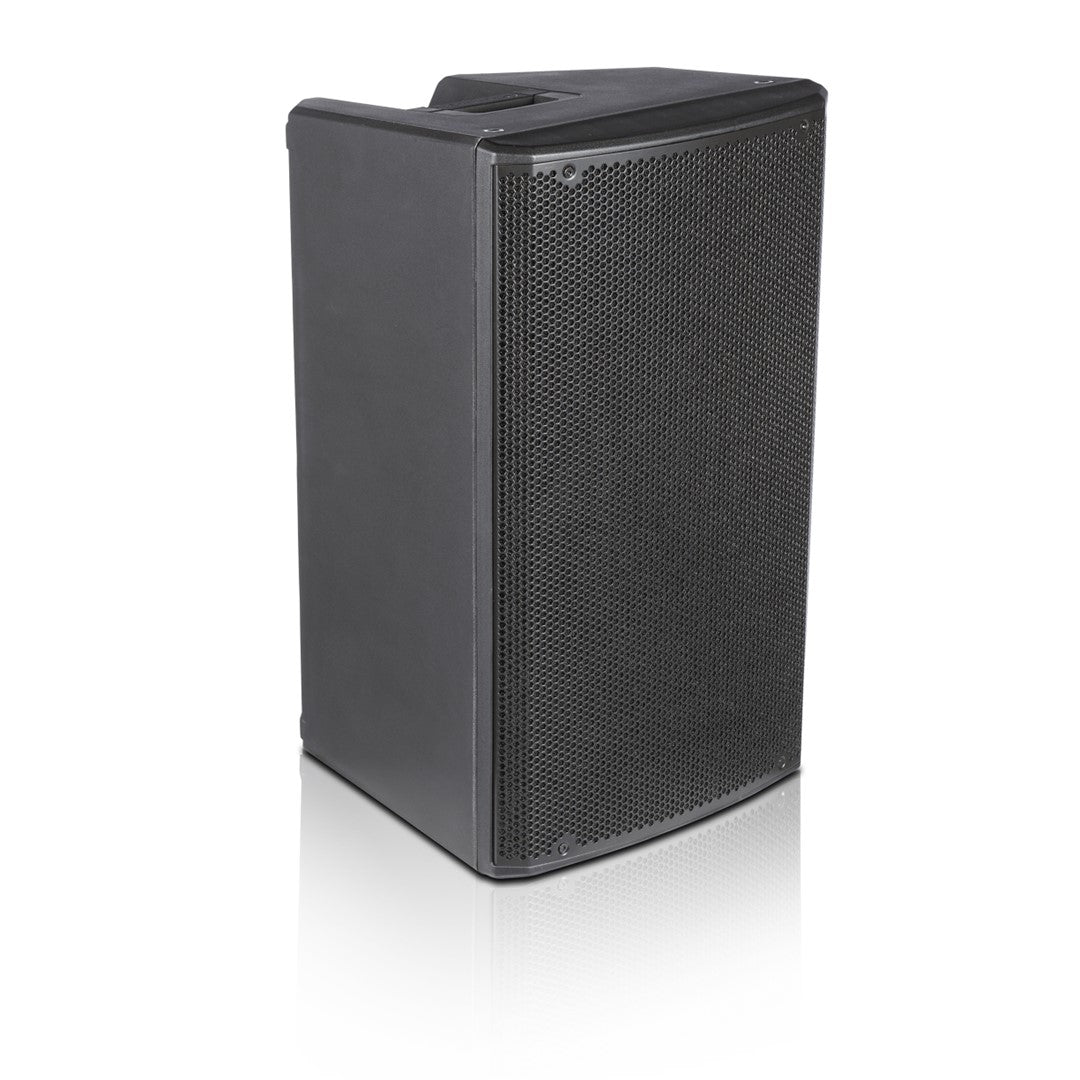

dB Technologies OPERA 15 - 15" 2 Way Active Speaker Top Front Left

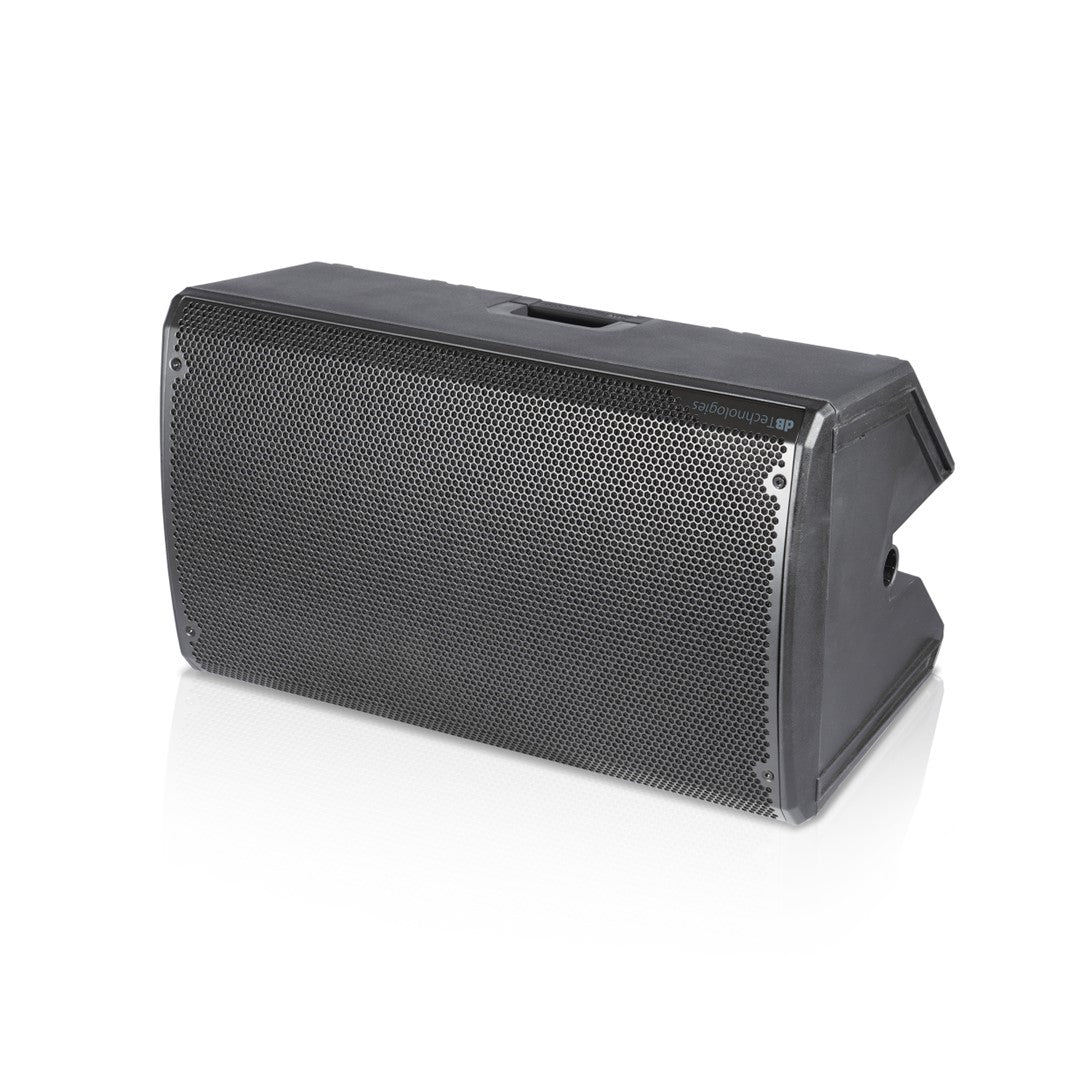

dB Technologies OPERA 15 - 15" 2 Way Active Speaker Front Side Right

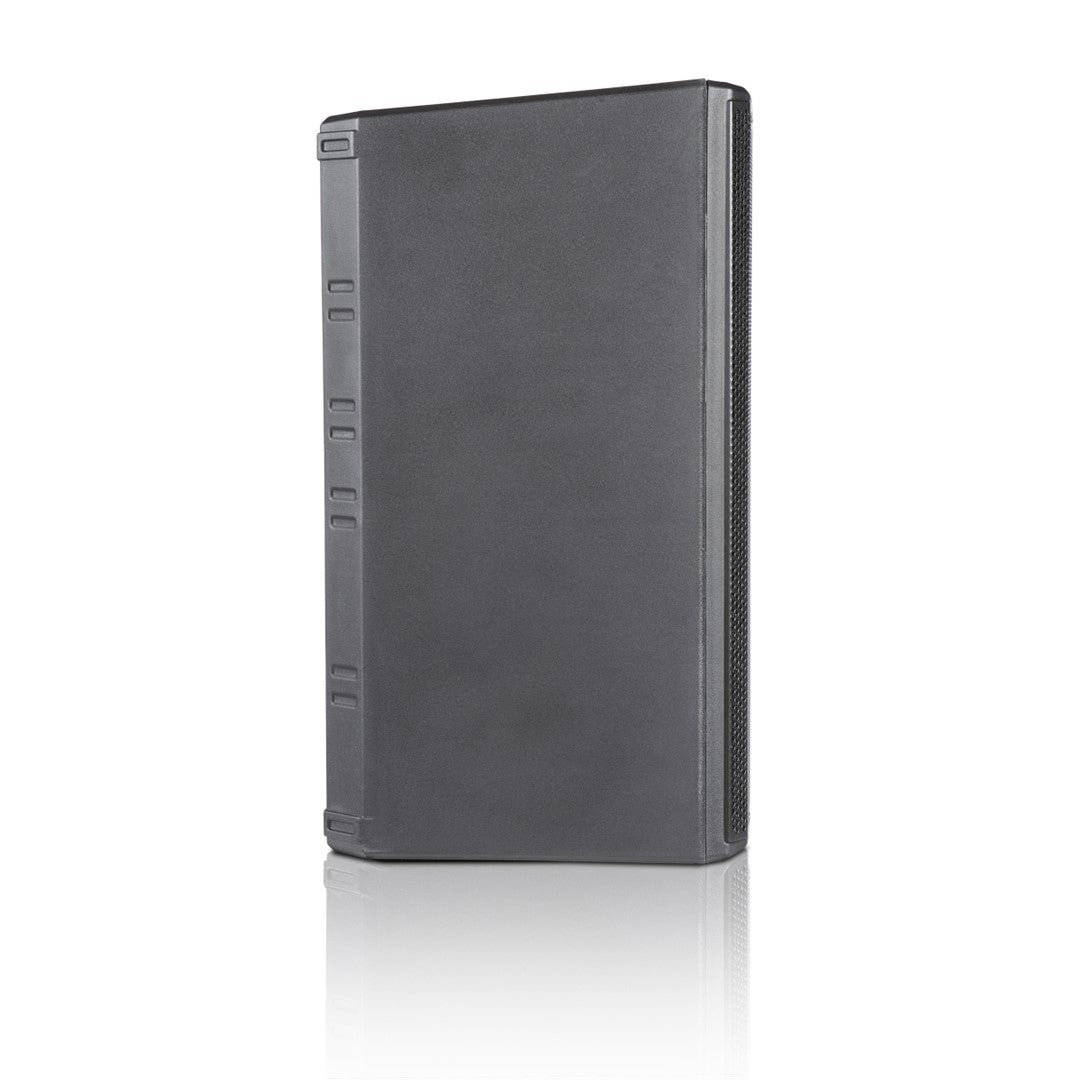

dB Technologies OPERA 15 - 15" 2 Way Active Speaker Left Side

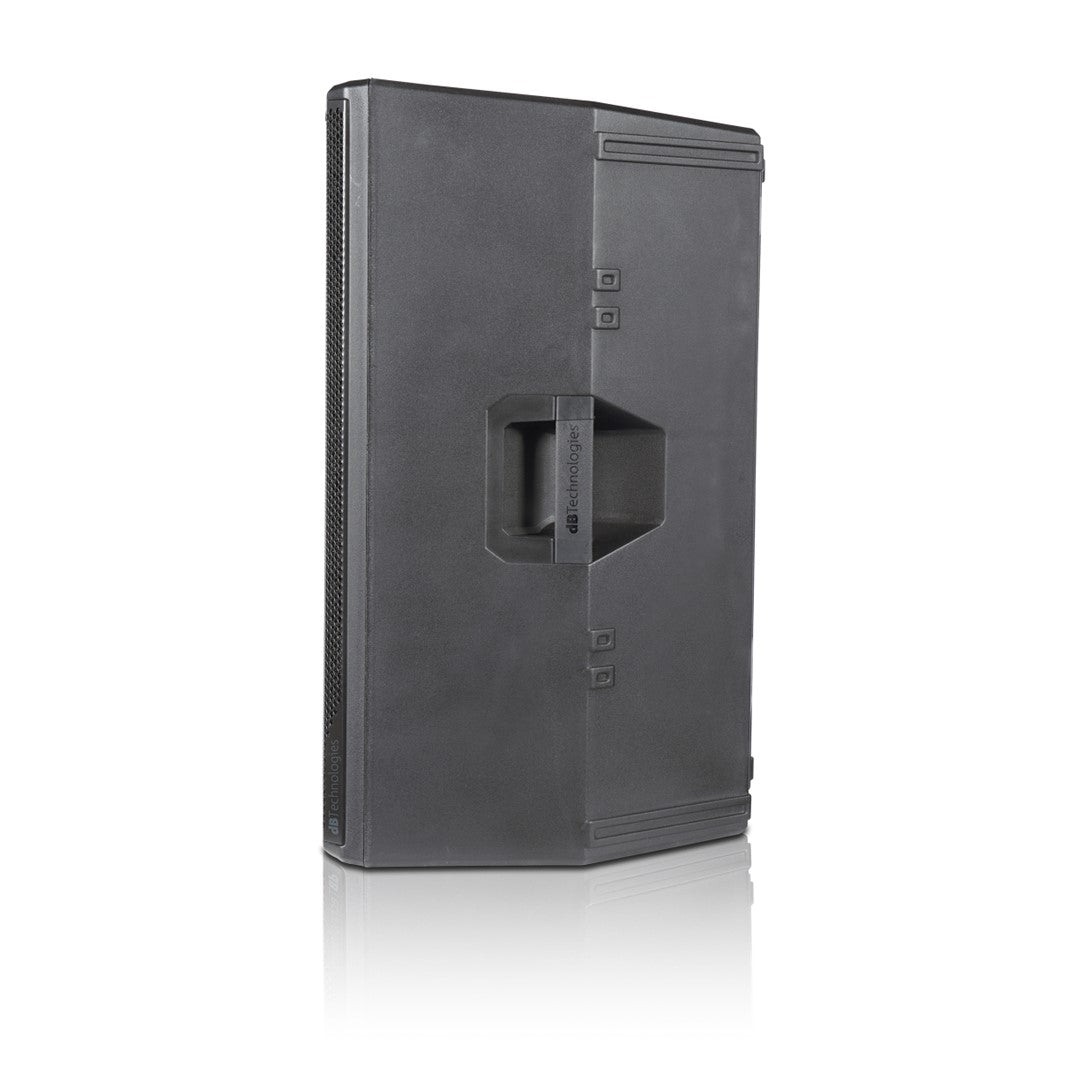

dB Technologies OPERA 15 - 15" 2 Way Active Speaker Right Side

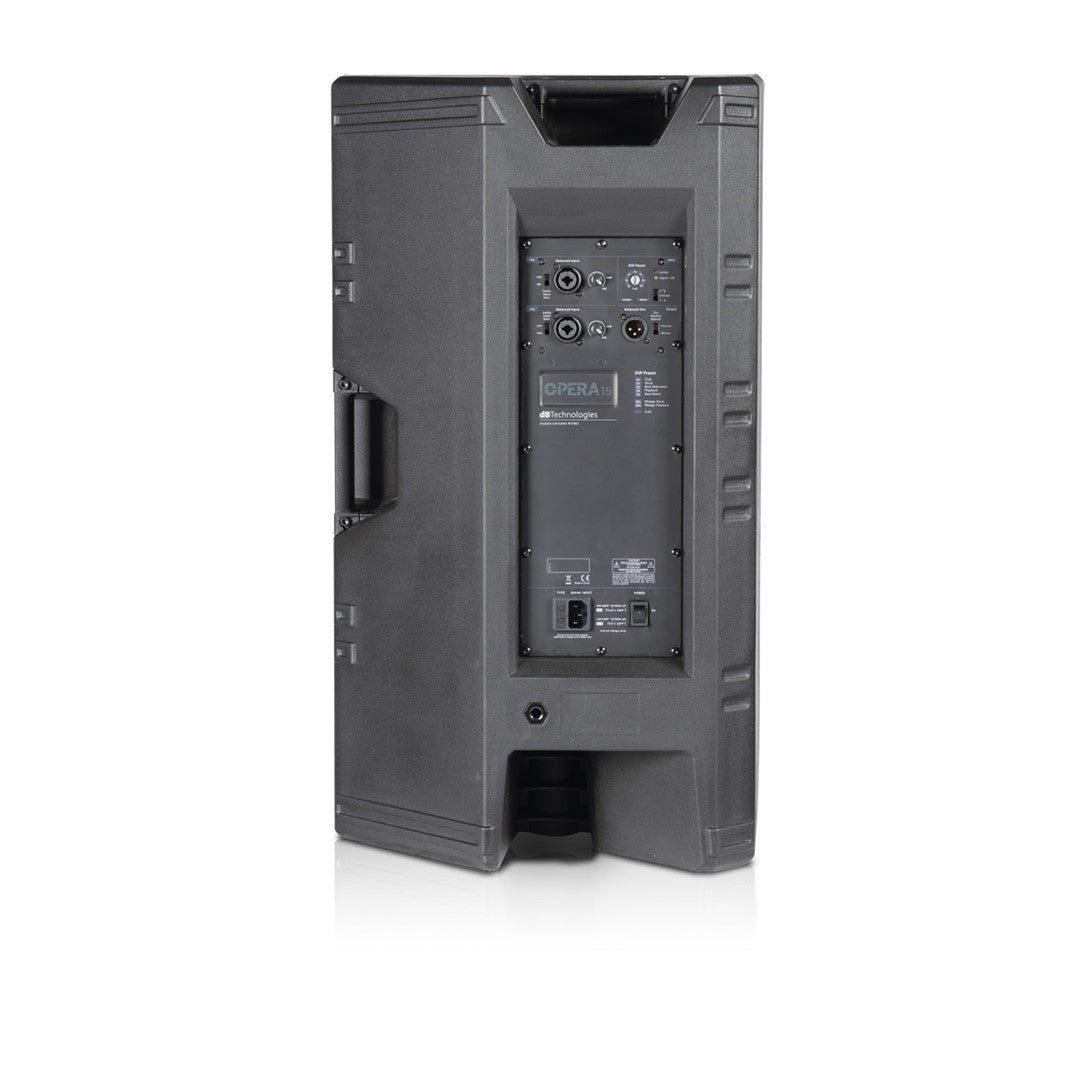

dB Technologies OPERA 15 - 15" 2 Way Active Speaker Rear

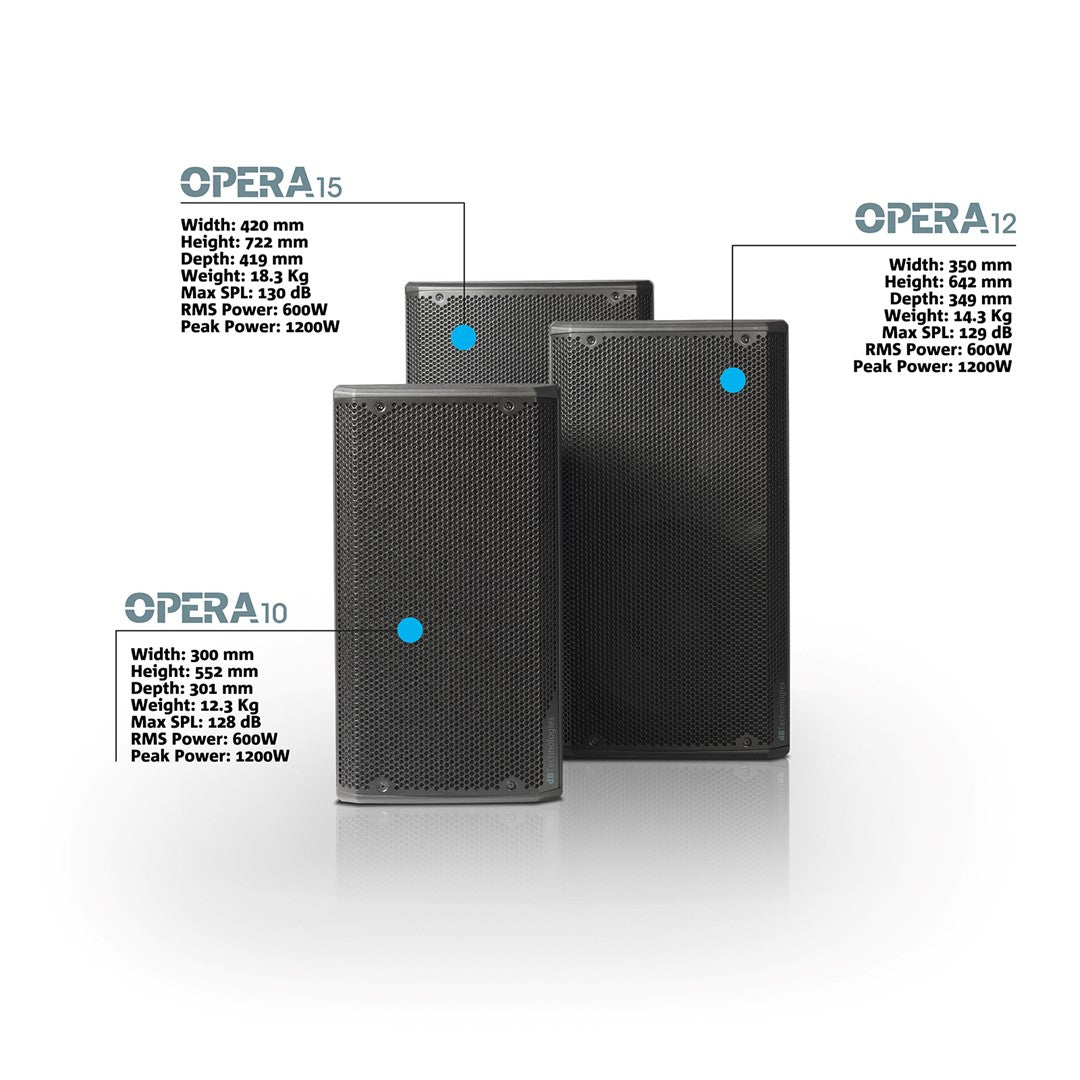

dB Technologies OPERA 15 - 15" 2 Way Active Speaker OPERA Collection
DB Technologies

dB Technologies OPERA 15 - 15" 2 Way Active Speaker

Overview:

The dB Technologies OPERA 15 15" 2-Way Active Speaker delivers powerful audio for live performances and playback. Its 600 W Class D amplifier provides 1200 W peak power for demanding applications. Advanced DSP and Linear Phase FIR Filters support clear, consistent sound reproduction. The redesigned asymmetrical horn improves sound distribution across the venue. Its polypropylene cabinet, integrated handles, and 18.3 kg weight also simplify transportation and setup.

Key Features

•    600 W RMS and 1200 W Peak Power: The amplifier provides substantial output, giving                           performers powerful sound for live and playback applications.
•    Redesigned Asymmetrical Horn: The horn controls horizontal and vertical dispersion, helping         distribute audio more evenly across venues.
•    56-bit DSP Processing: Advanced DSP and Linear Phase FIR Filters support accurate, coherent       sound across the frequency range.
•    Dual Combo Inputs: Two combo XLR/Jack inputs accommodate MIC/Line and MIC/Instrument          sources for flexible system configurations.
•    Selectable Output Routing: Choose CH1 Link or Mix CH 1+2 output to accommodate different              live sound setups.
•    Eight EQ Presets: Eight presets provide quick sound adjustments, helping users adapt the                 speaker to different applications.
•    Stage Monitor Configuration: The 45° monitor angle allows the OPERA 15 to serve as an                       effective stage monitor.

Specifications:
•    Speaker Type: 2-Way Active Speaker
•    Frequency Response (-10 dB): 50 Hz – 20,000 Hz
•    Frequency Response (-3 dB): 56 Hz – 19,000 Hz
•    Max SPL: 130 dB
•    High-Frequency Driver (HF): 1″ exit, 1.4″ voice coil, compression driver
•    Horizontal Directivity: 100° (85° up / 120° down)
•    Vertical Directivity: 85° (+25° / -60°)
•    Horn: Newly designed asymmetrical horn
•    Low-Frequency Driver (LF): 15″, 2″ voice coil
•    Amp Class: Class D
•    RMS Power: 600 W
•    Peak Power: 1200 W
•    Amp Technology: SMPS power supply with dual range
•    Controller: DSP 56-bit
•    AD/DA Converter: 24-bit / 48 kHz
•    System Presets: 8 presets via rotary encoder
•    Crossover Frequency: 1800 Hz
•    Limiter: Peak, RMS, thermal protection
•    Advanced DSP Functions: Linear phase FIR filters
•    Signal Input: 1x Combo (XLR/Jack 6.3 mm) MIC/Line
•    Signal Input: 1x Combo (XLR/Jack 6.3 mm) MIC/Inst
•    Signal Output: 1x XLR Male (CH1 Link/Mix OUT), selectable
•    Housing Material: Polypropylene with internal frame
•    Grille: Full metal grille design
•    Handles: 1 handle on left side, 1 on top
•    Rigging Points: 2x M10 on top, 1x M10 on back
•    Pole Mount: D36 mm
•    Monitor Angle: 45° for stage monitor use
•    Dimensions (W x H x D): 420 mm x 722 mm x 419 mm (16.54 in x 28.43 in x 16.50 in)
•    Weight: 18.3 kg (40.34 lbs)

Built for Flexible Live Sound:

The dB Technologies OPERA 15 suits sound engineers and performers needing powerful, adaptable audio. Its 15-inch LF driver, 600 W RMS output, DSP processing, and flexible connectivity support live and playback applications. The 45° monitor configuration adds further versatility for performance setups.
