dB Technologies SUB 615 - 15" 600W Active Subwoofer

Overview:

The dB Technologies SUB 615 15" 600W Active Subwoofer adds powerful low-frequency performance to professional sound systems. Its 15″ driver and 600 W RMS Class D amplifier deliver up to 131 dB SPL. The compact plywood cabinet also makes transport and setup easier. With flexible signal routing, DSP control, and FLAT or BOOST modes, the SUB 615 adapts easily to live performances, DJ systems, and fixed installations.

Key Features:

•    600 W RMS Class D Amplifier: The efficient amplifier delivers powerful bass while helping                   maintain reliable performance during demanding use.
•    15″ Low-Frequency Driver: The 15″ transducer produces deep low-end response, adding weight       and impact to your sound system.
•    Flexible Stereo Signal Routing: Selectable balanced inputs support mono or stereo                               configurations for easier system integration and setup.
•    Link or Crossover Output: Choose link or crossover output modes to connect additional                       speakers without requiring external processing equipment.
•    FLAT or BOOST Modes: Select FLAT for natural response or BOOST for stronger low                               frequencies and added bass impact.
•    Polarity Control: The polarity switch helps align the subwoofer with other speakers for more               coherent overall system performance.
•    Portable Plywood Construction: The sturdy plywood enclosure weighs 25.5 kg, making                          transportation and installation more manageable.

Specifications:

•    Speaker Type: Active Subwoofer
•    Frequency Response: [-10 dB] 42 – 124 Hz
•    Max SPL (1 m): 131 dB
•    Directivity: Omnidirectional
•    LF Driver Size: 15″
•    LF Voice Coil Diameter: 2.5″
•    Amplifier Technology: SMPS digital amplifier
•    Amplifier Class: Class D
•    RMS Power: 600 W
•    Peak Power: 1200 W
•    Controller: 28/56 bit DSP
•    Limiter: Peak, Thermal, RMS

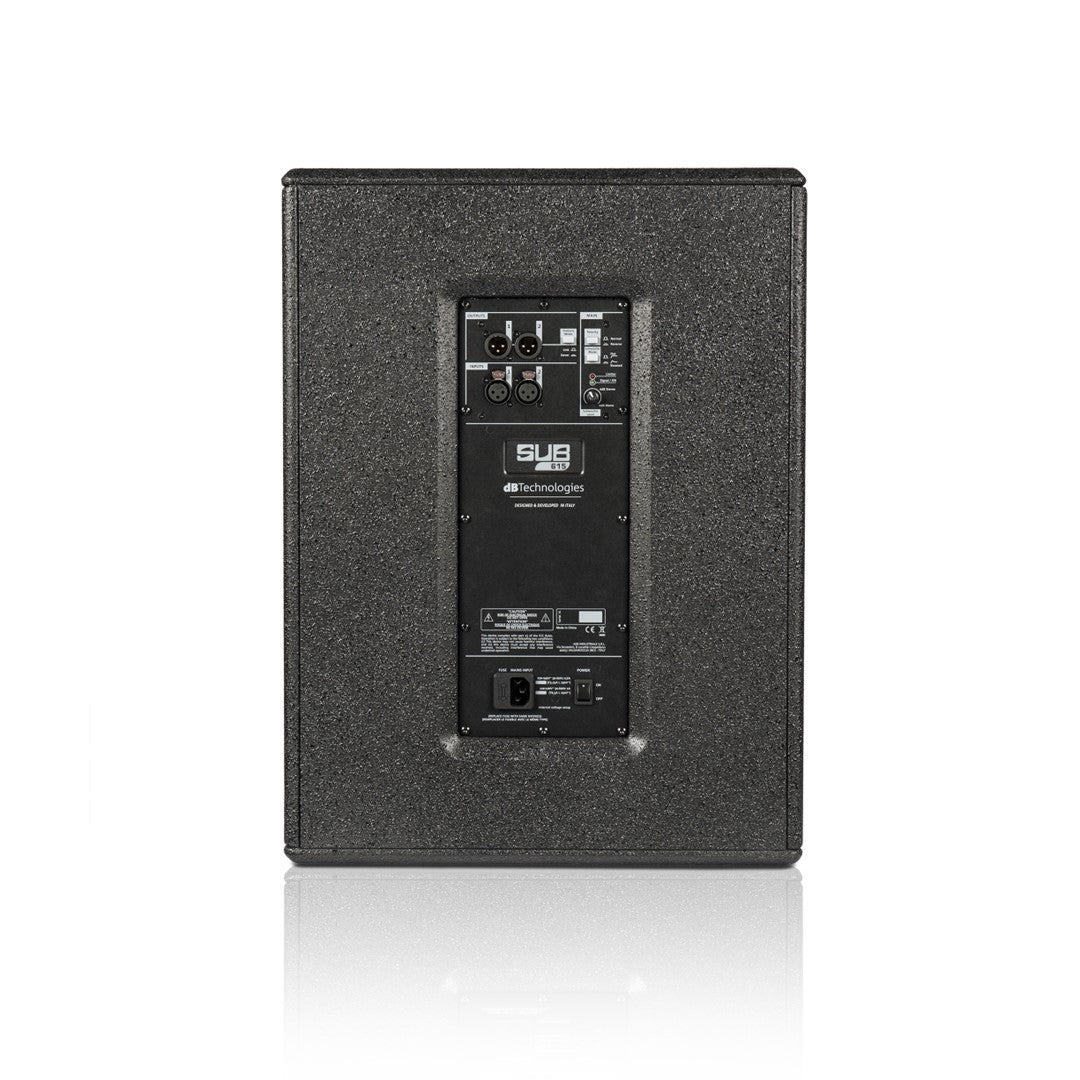

•    Controls: Subwoofer level, outputs mode, polarity, subwoofer mode (FLAT or BOOST)
•    Signal Input: 2x XLR (balanced)
•    Signal Output: 2x XLR (balanced)
•    Housing: Plywood
•    Grille: Full metal grid

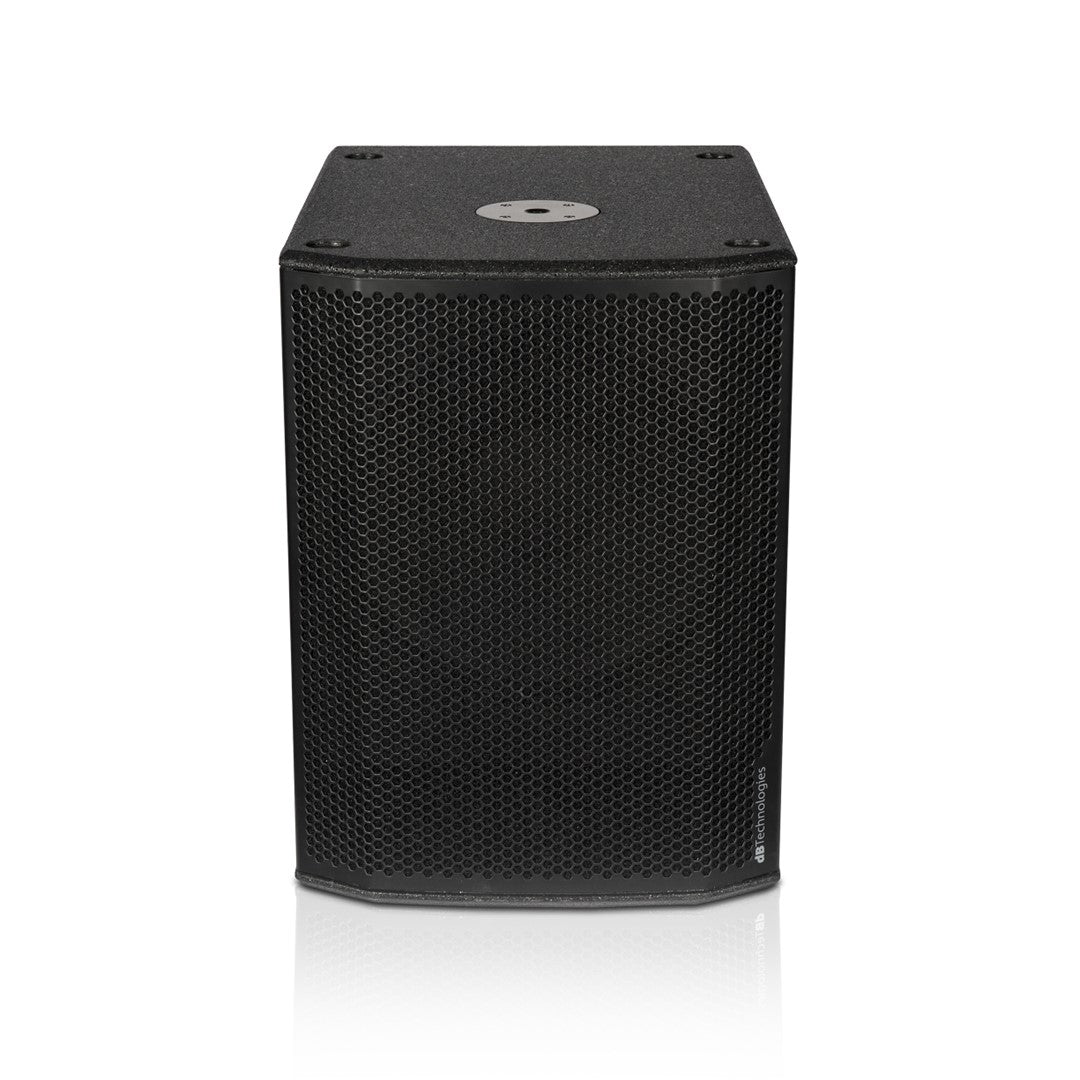

•    Pole Mount: M20
•    Width: 430 mm (16.92 in)
•    Height: 580 mm (22.83 in)
•    Depth: 600 mm (23.62 in)
•    Weight: 25.5 kg (56.22 lbs)

Built for Powerful Sound Reinforcement:

The dB Technologies SUB 615 suits DJs, live performers, and fixed sound installations. Its powerful amplification, flexible controls, and durable cabinet support practical professional setups. The M20 pole mount also allows integration with compatible full-range speaker configurations.
