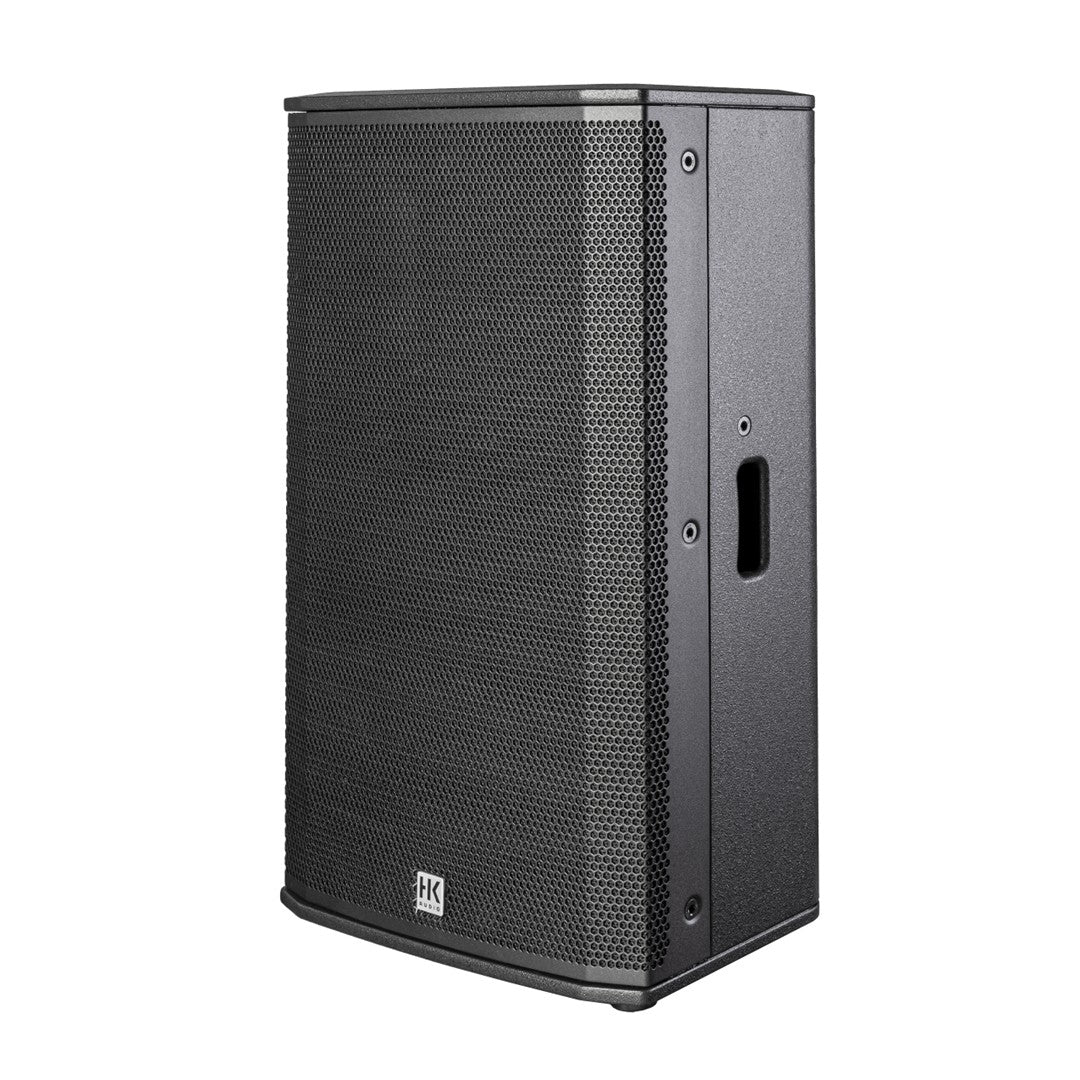

HK Audio LUNAR 115 XA - Active 2-way 15" Speaker

Overview:

The HK Audio LUNAR 115 XA 15” Active 2-way Speaker combines powerful output with detailed, controlled sound. Its 32-bit DSP with FIR filtering supports accurate phase correction and natural audio reproduction. The speaker offers 1,200 W peak Class-D amplification, Bluetooth 5.4 with TWS, and flexible operating modes. It works as a full-range speaker, stage monitor, or top with an external subwoofer.

Key Features:

•    32-Bit DSP with FIR Filtering: Provides phase correction and detailed audio reproduction for              clear, natural sound.
•    Four Integrated Presets: Music, Monitor, Voice, and External Sub settings simplify sound                      adjustment.
•    Fanless Class-D Amplification: Delivers 600 W RMS and 1,200 W peak output without fan noise.
•    Bluetooth 5.4 with TWS: Supports wireless playback and True Wireless Stereo pairing between        two speakers.
•    Flexible Speaker Configuration: Use it as a full-range speaker, stage monitor, or top with a                  subwoofer.
•    German-Built Cabinet: MDF construction, acrylic enamel finish, DuoTilt flanges, and four M8                rigging points support installation.
•    PORTABLE SUB Compatibility: Expand the system with HK Audio PORTABLE SUB series                        subwoofers for larger sound setups.

Specifications:

System & DSP

•    Concept: Active 2-way loudspeaker (bass reflex)
•    DSP: 32-bit digital signal processor with FIR filter and phase correction
•    Sample Rate: 48 kHz
•    Latency: Approx. 3 ms
•    Speaker Protection: Subsonic filter, multiband limiter, peak & RMS limiter

Drivers

•    Low/Mid: 1 × 15” cone speaker with 2.5” voice coil
•    High: 1 × 1” compression driver with 1.4” voice coil
•    Horn: Constant directivity horn

Performance

•    Maximum SPL (peak): 130 dB
•    Sensitivity (1 W/1 m): 110 dB
•    Frequency Range (-6 dB): 60 Hz – 21 kHz
•    Frequency Range (-10 dB): 56 Hz – 22 kHz
•    Dispersion Angle: 90° horizontal × 55° vertical

Amplification & Power

•    Power Amplifier: Class-D, bi-amped
•    RMS Power Output: 600 W
•    Peak Power Output: 1200 W
•    Power Consumption: ~0.5 A @ 220–240 V AC (1/8 output)
•    Power Consumption: ~0.9 A @ 100–120 V AC (1/8 output)

Inputs & Outputs

•    Analog Input: 1 × XLR/TRS combo (Mic/Line), switchable sensitivity
•    Thru Output: 1 × XLR
•    Mix Out: 1 × XLR, summed analog + Bluetooth signal
•    Bluetooth: Bluetooth 5.4 with True Wireless Stereo (TWS)

Presets & Controls

•    Filter Presets: Music, Monitor, Voice, External Sub
•    Crossover Frequency: 1.9 kHz FIR X-Over with 60 dB/octave

Mechanical & Rigging

•    Cabinet Material: MDF
•    Cabinet Surface: Acrylic enamel finish
•    Colour: Jet Black (RAL 9005)
•    Front Grille: 1.5 mm steel grille backed with acoustic foam
•    Rigging Points: 4 × M8
•    DuoTilt Flanges: 3° / 7° tilt options
•    Monitor Angle: 33° integrated
•    Optional: U-bracket mounting points for ceiling installations

Mobility

•    Carrying Handles: 2 × SingleGrip

Dimensions & Weight

•    Dimensions (Imperial): 16-59/64 × 28-4/64 × 15-33/64 inches
•    Dimensions (W × H × D): 43 × 71.3 × 39.5 cm
•    Weight: 25.3 kg (55.78 lbs)

Streaming Compatibility:

Bluetooth 5.4
True Wireless Stereo (TWS)

Built for Flexible Sound Systems:

The HK Audio LUNAR 115 XA suits DJs, musicians, event venues, schools, and speech reinforcement. Its flexible configuration, high output, DSP control, and installation options support mobile and fixed applications.
