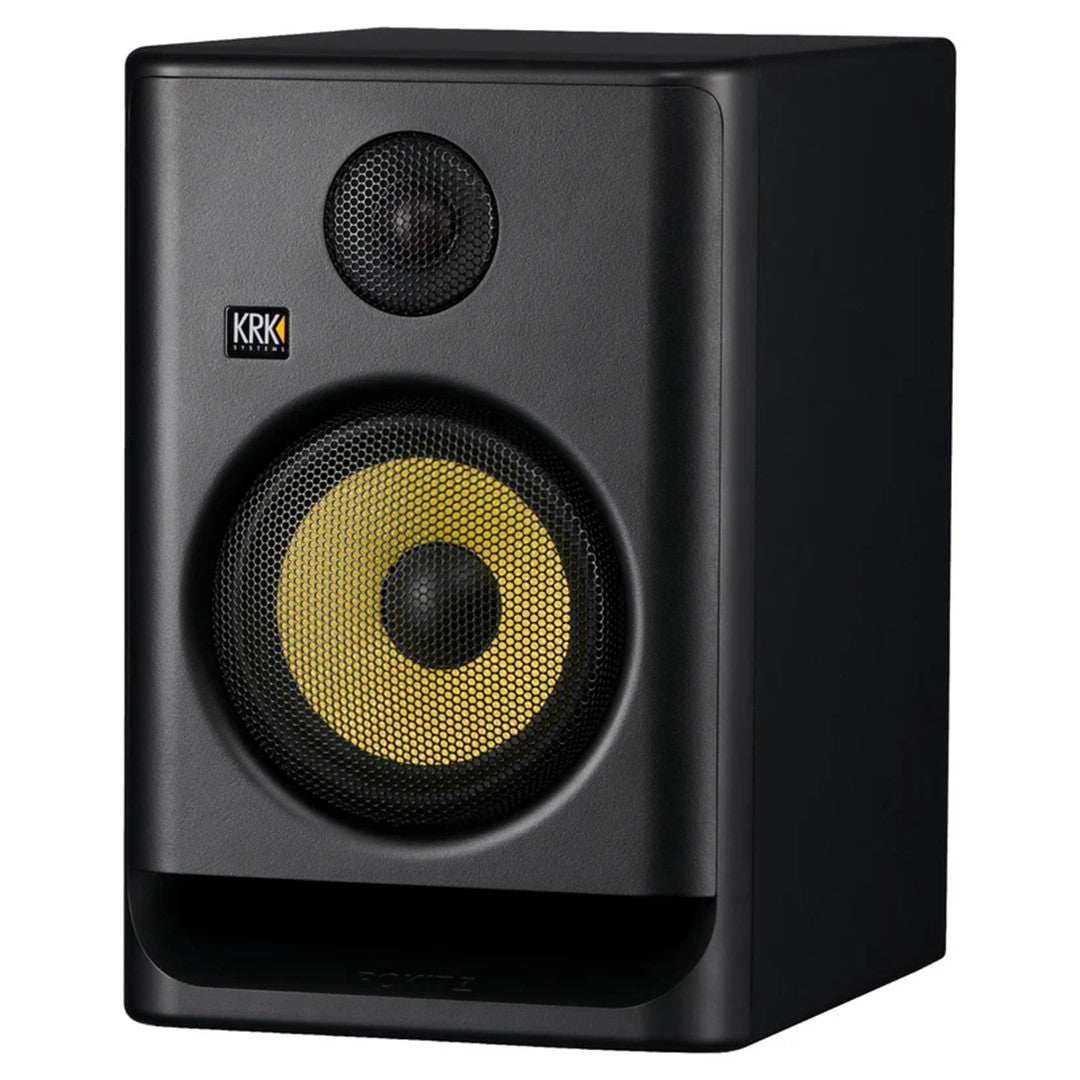

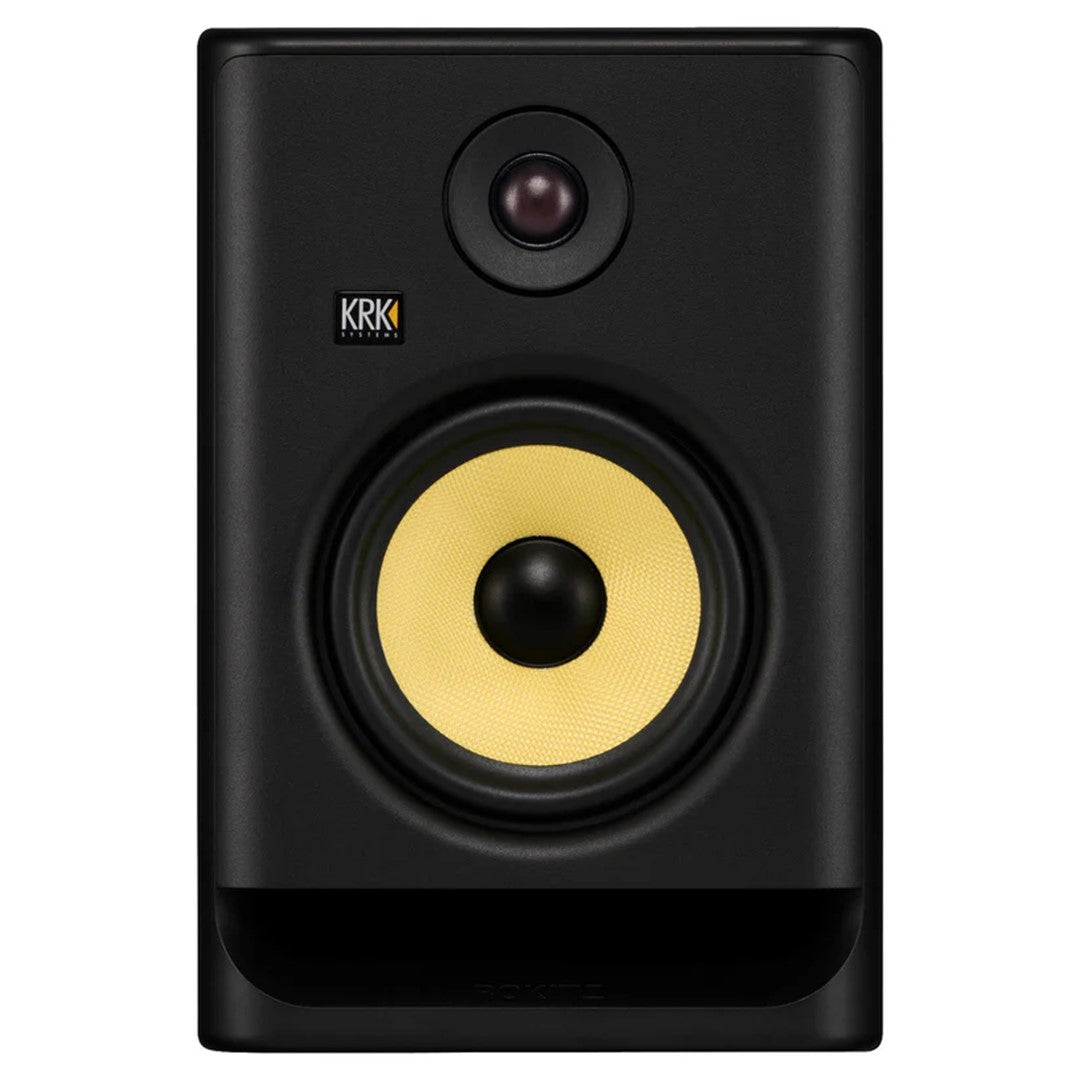

KRK RP7G5 - 7" Powered ROKIT Generation Five Studio Monitor
Overview:
The KRK RP7G5 7" Rokit Generation Five Powered Studio Monitor provides detailed monitoring for professional and personal audio projects. Its 7-inch Kevlar® woofer and 1-inch silk dome tweeter cover an extended frequency range. Three Voicing Modes adapt the monitor to different production tasks. Meanwhile, 25 boundary and tuning EQ combinations help you adjust performance for your acoustic environment.
Key Features:
• Three Voicing Modes: Mix, Create, and Focus Modes provide different monitoring approaches for production and critical listening.
• Mix Mode: Mix Mode delivers a flat frequency response, supporting accurate mixing and mastering decisions.
• Create Mode: Create Mode provides an inspirational sound profile for writing and producing music.
• Focus Mode: Focus Mode emphasizes midrange frequencies, helping you examine vocals and instruments in greater detail.
• Flexible Acoustic Tuning: Twenty-five boundary and tuning EQ combinations help address acoustic issues within different studio environments.
• 7-inch Kevlar® Woofer: The woven Kevlar® aramid fiber cone offers controlled damping and modal breakup control for detailed low frequencies.
• 1-inch Silk Dome Tweeter: The silk dome tweeter extends high frequencies up to 40 kHz for clear and detailed monitoring.
• Bi-Amplified Class D Power: Separate Class D amplification delivers efficient power to the LF and HF drivers for dynamic reproduction.
• Low Diffraction Baffle Design: The low diffraction baffle reduces distortion and supports improved stereo imaging during critical listening.
• Front-Ported Bass Reflex Enclosure: The front-ported design supports low-frequency performance while allowing flexible placement within suitable studio setups.
• Versatile Connectivity: Balanced XLR and 1/4″ TRS Combo inputs allow connection with mixers, interfaces, and other audio equipment.
Specifications:
• Configuration: 2-Way Bass Reflex
• System Type: Active Studio Monitor
• Low-Frequency Driver: 7-inch, woven Kevlar® aramid fiber cone, ferrite magnet
• High-Frequency Driver: 1-inch, Silk Dome, Copper Cap, ferrite magnet
• Frequency Response: (+/- 3 dB) 45 Hz – 36 kHz
• Frequency Range: (+3/-10 dB) 36 Hz – 40 kHz
• Crossover Frequency: 1.64 kHz
• Amplifier Configuration: Bi-amplified (Class D)
• HF Amp Power Output: 48 Watts (Rated Amplifier Power Output measured at 1% THD+N)
• LF Amp Power Output: 97 Watts (Rated Amplifier Power Output measured at 1% THD+N)
• Total Power: 145 Watts (Rated Amplifier Power Output measured at 1% THD+N)
• Total Dynamic Power Output: 234 Watts (Rated Dynamic Power Output as instantaneous peak power at 10% THD+N)
• Max SPL: 110 dB (Calculated as a function of driver sensitivity (1W @ 1M) and Dynamic Power rating)
• Coverage Angles: 155° Horizontal x 133° Vertical (Averaged -6 dB down points from 900 Hz to 9 kHz)

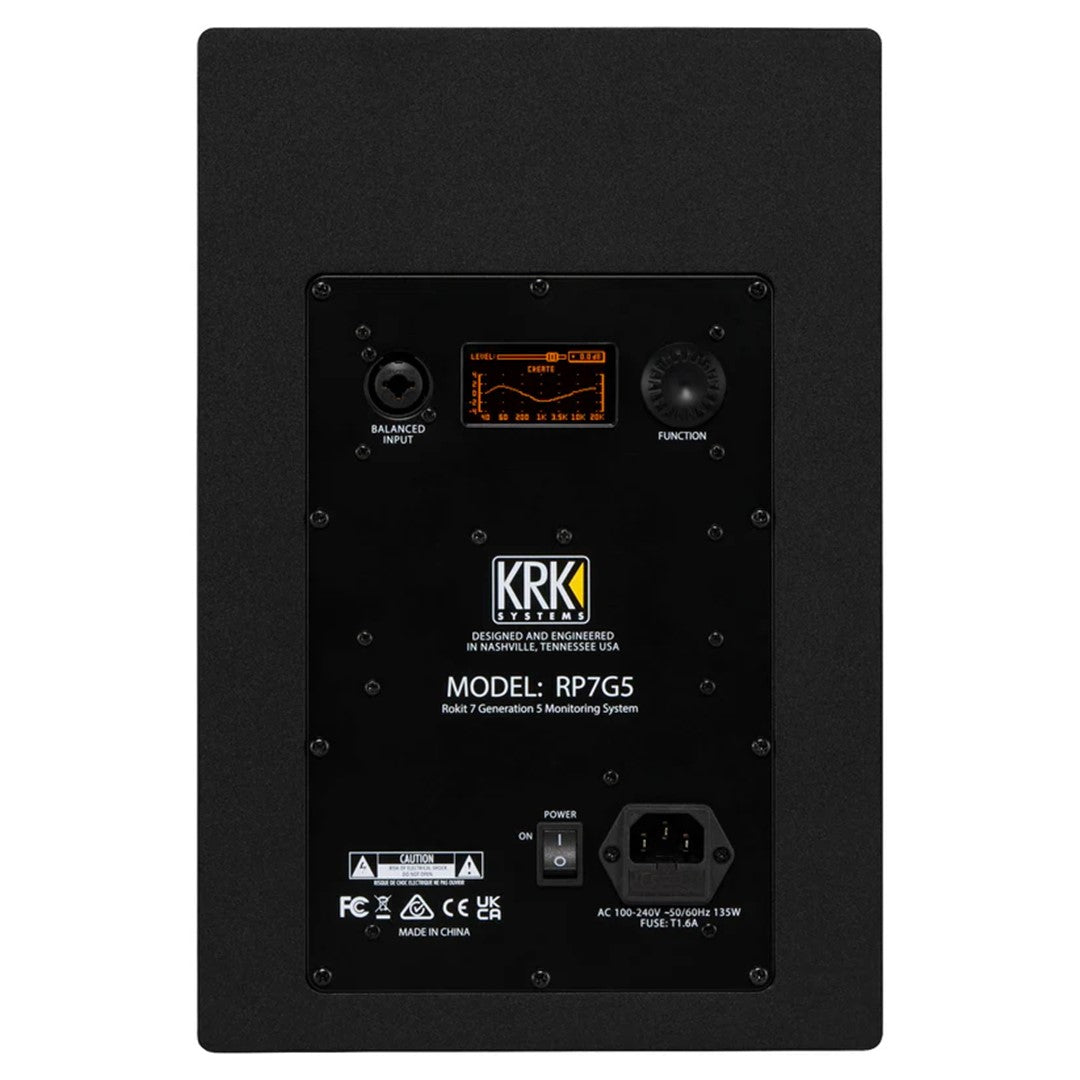

• Analog Input Connector: Balanced XLR / 1/4″ TRS Combo
• SNR (Signal to Noise Ratio): >91.5 dB (Low Sensitivity setting, balanced), >89 dB (High Sensitivity, unbalanced)
• AC Input Voltage: 100 – 240VAC (+/- 10%), 50/60 Hz
• Fuse Type: 5×20 mm T1.6A 250V
• Enclosure Construction: PVC Vinyl Wrapped MDF
• Baffle Construction: Structurally Reinforced High Impact Polystyrene
• Product Dimensions (H x W x D): 13.35” (339 mm) x 8.86” (225 mm) x 11.42” (290 mm)
• Product Weight: 16.87 lbs. (7.65 Kg.)
• Packaged Dimensions (H x W x D): 18.11” (460 mm) x 12.20” (310 mm) x 14.57” (370 mm)
• Packaged Weight: 21.16 lbs. (9.6 Kg.)
Software Compatibility:
• KRK Audio Tools App
• KRK App
A Powerful Choice for Studio Monitoring:
The KRK RP7G5 7" Rokit Generation Five Powered Studio Monitor suits producers, musicians, sound engineers, and audio professionals. Its flexible Voicing Modes, acoustic tuning options, and detailed driver design support demanding monitoring tasks. The combination of powerful amplification and broad frequency coverage makes it a versatile studio monitoring solution.
