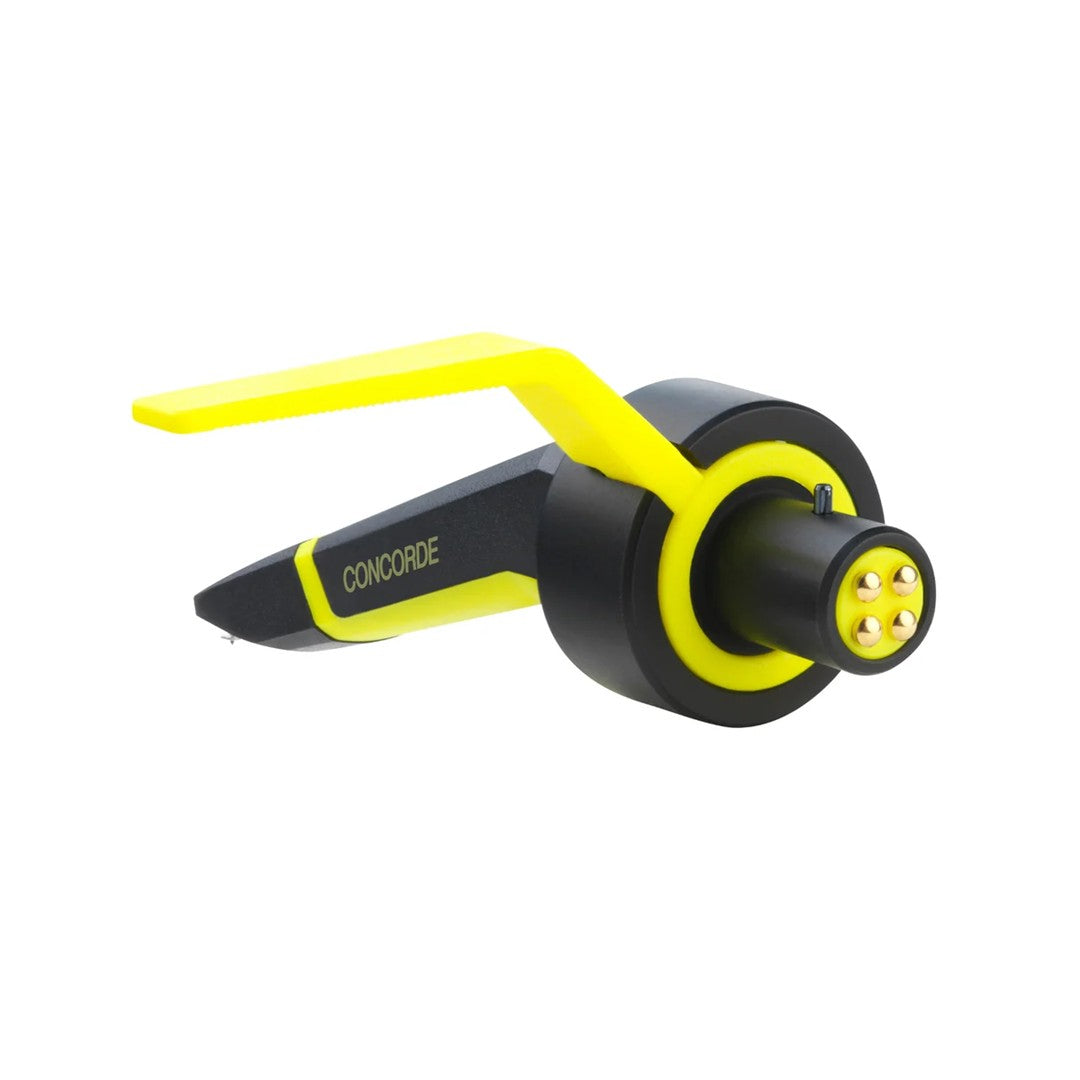

Ortofon CC MKII CLUB – Concorde MKII CLUB Cartridge
Overview:
The Ortofon CC MKII CLUB Concorde MKII CLUB Cartridge combines detailed vinyl reproduction with a strong 8 mV output. Its Special Elliptical diamond extracts musical detail while maintaining accurate groove contact. Additionally, the aluminium cantilever supports consistent stylus movement during playback. The cartridge suits DJs, studios, broadcasts, vinyl digitisation, and listeners seeking powerful, detailed performance from compatible turntable systems.
Key Features:
• Special Elliptical Diamond: The Special Elliptical diamond captures detailed groove information, giving listeners more precise vinyl reproduction.
• Elevated 8 mV Output: The 8 mV output provides a strong signal while reducing preamplifier gain requirements during operation.
• Aluminium Cantilever: The aluminium cantilever supports controlled stylus movement, helping maintain accurate contact with record grooves.
• 100 μm Tracking Ability: The cartridge achieves 100 μm tracking ability at 315 Hz for dependable groove following.
• Detailed Vinyl Playback: The stylus design extracts intricate musical information, making the cartridge suitable for focused vinyl listening.
• Live Performance Support: The elevated output reduces feedback susceptibility, helping the cartridge perform reliably during demanding live applications.
• Concorde Bayonet/SME Mount: The Bayonet/SME mounting format provides a practical solution for compatible turntable and DJ tonearm systems.
Specifications:
• Brand: Ortofon
• Product: Ortofon Concorde MKII CLUB
• Cartridge Type: Moving Magnet
• Optimised For: Detailed and powerful sound
• Mounting Type: Bayonet/SME
• Cartridge Weight: 18.5 g
• Stylus Type: Special Elliptical diamond
• Stylus Tip Radius: r/R 13/25 μm
• Cantilever Material: Aluminium
• Output Voltage at 1 kHz, 5 cm/sec: 8 mV
• Channel Balance at 1 kHz: 1 dB
• Channel Separation at 1 kHz: 25 dB
• Tracking Ability at 315 Hz: 100 μm
• Compliance, Dynamic, Lateral: 14 μm/mN
• Tracking Force Range: 2-4 g
• Recommended Tracking Force: 3 g
• Tracking Angle: 20°
• Internal Impedance / DC Resistance: 1000 Ohm
• Internal Inductance: 650 mH
• Recommended Load Resistance: 47 kOhm
• Recommended Load Capacitance: 200-600 pF
• Replacement Stylus: Stylus CC MKII Club

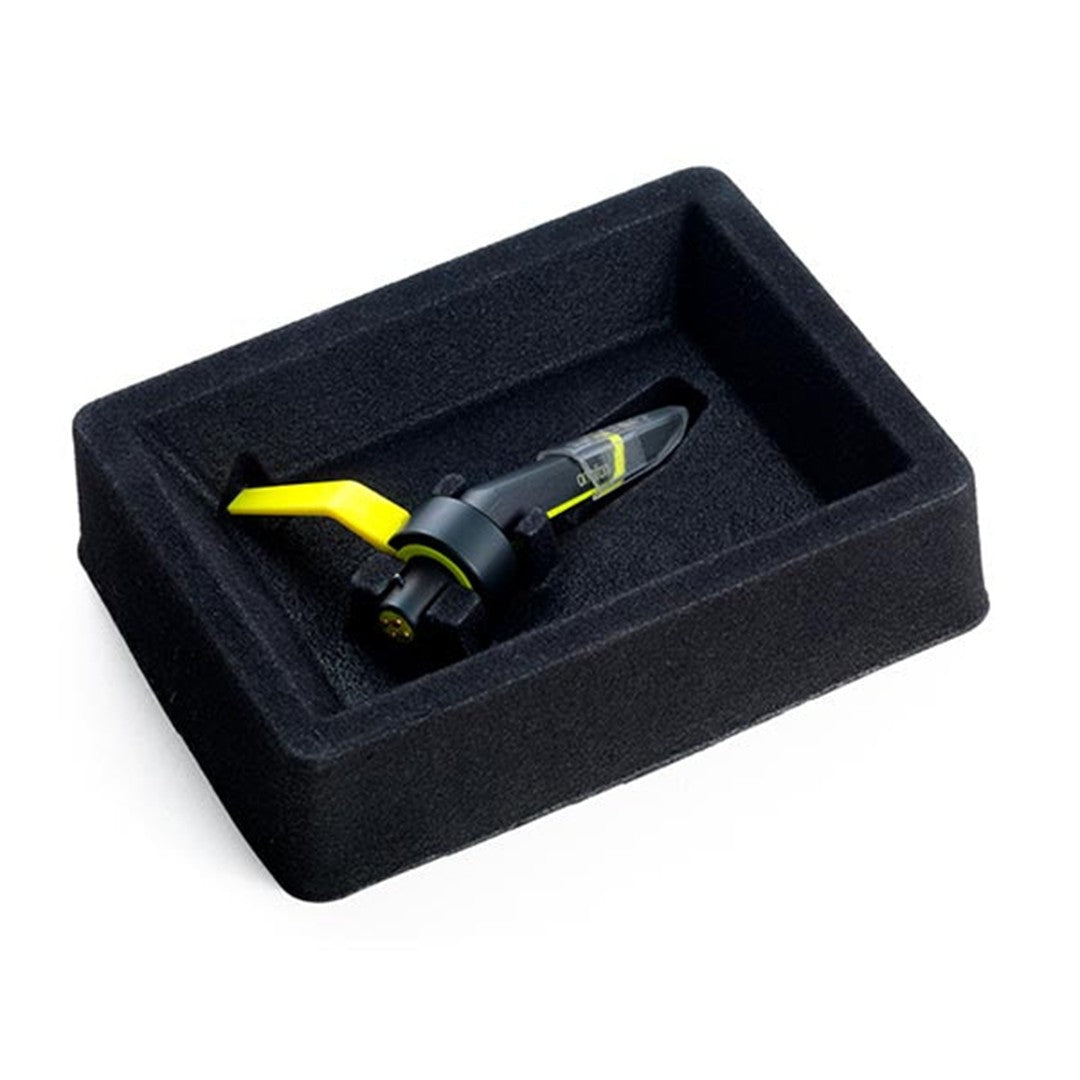

What's Included:
• Ortofon Concorde MKII CLUB cartridge
• Preinstalled Stylus
Detailed Vinyl Performance:
The Ortofon CC MKII CLUB suits DJs and vinyl enthusiasts who value strong output and detailed groove reproduction. Its Special Elliptical stylus supports precise vinyl playback, while the 8 mV output provides a powerful signal. It also suits vinyl digitisation, studio, broadcast, and live applications where detailed performance matters.
