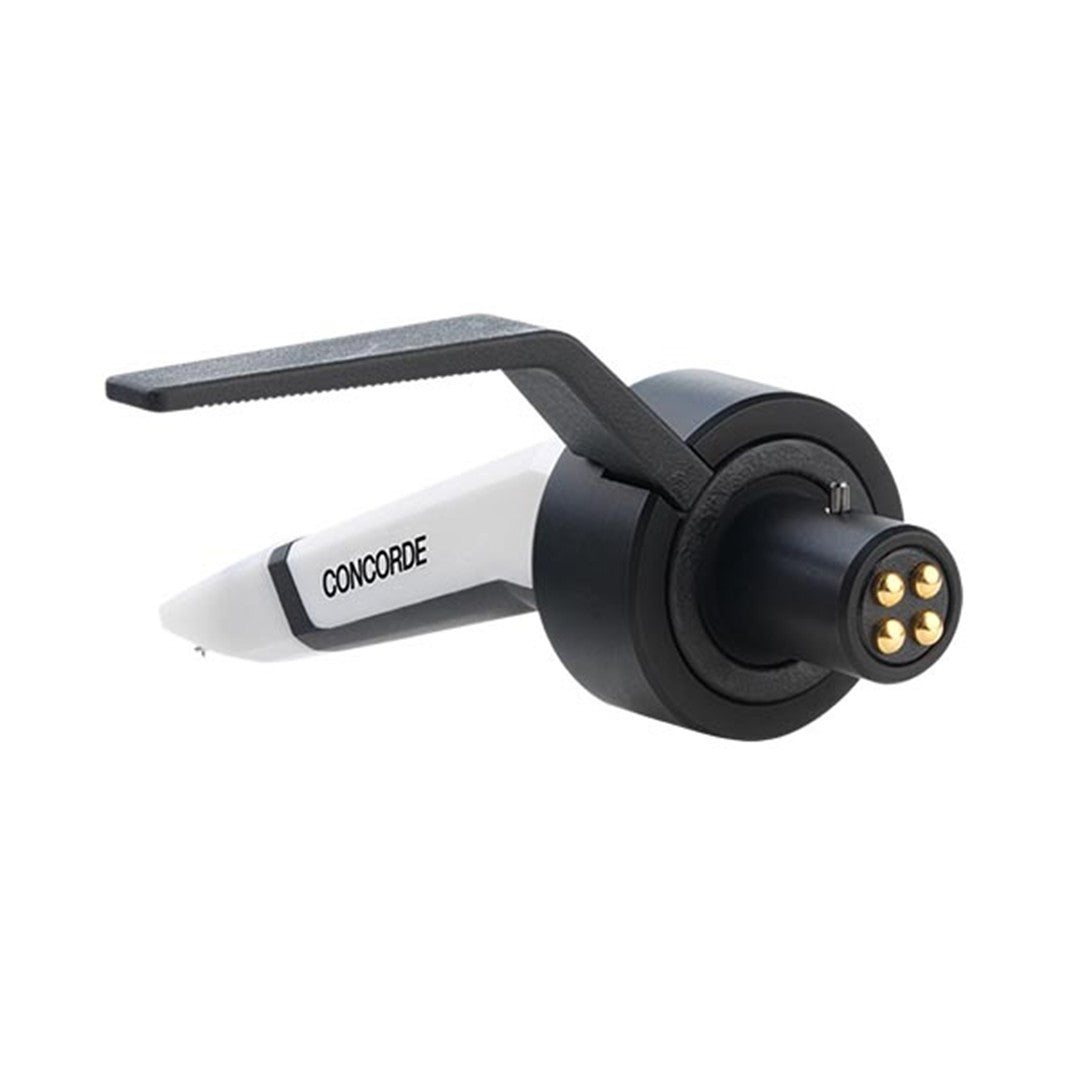

Ortofon CC MKII SCRATCH – Concorde MKII Scratch Cartridge
Overview:
The Ortofon CC MKII SCRATCH Concorde MKII Scratch Cartridge is built for DJs performing scratches and back-cueing. Its spherical diamond supports reliable groove contact during record manipulation. Meanwhile, the aluminium cantilever provides stable stylus movement. The exceptionally high 10 mV output creates a strong signal for energetic performances. Additionally, 120 μm tracking ability helps maintain dependable contact during demanding turntablist techniques.
Key Features:
• Spherical Diamond Stylus: The spherical diamond maintains consistent groove contact, supporting scratching and back-cueing techniques during performances.
• 120 μm Tracking Ability: The high tracking ability follows demanding record movements, helping maintain reliable stylus contact during scratch routines.
• Exceptionally High 10 mV Output: The 10 mV output produces a powerful signal, reducing the need for excessive preamplifier gain.
• Aluminium Cantilever: The aluminium cantilever creates a stable platform for controlled stylus movement during vinyl manipulation.
• Scratch-Focused Sound: Solid bass and extended highs deliver an energetic presentation suited to different musical styles.
• 3-5 g Tracking Range: The flexible tracking range supports the cartridge's specialised design across demanding scratching and back-cueing applications.
• Concorde Mounting Format: The Concorde / compatible bayonet mount provides a practical connection for suitable DJ turntable systems.
Specifications:
• Product: Ortofon Concorde MKII Scratch
• Cartridge Type: Moving Magnet
• Application: Scratching and back-cueing
• Stylus Type: Spherical diamond
• Stylus Tip Radius: R 18 μm
• Cantilever Material: Aluminium
• Output Voltage at 1 kHz, 5 cm/sec: 10 mV
• Channel Separation at 1 kHz: 22 dB
• Channel Balance at 1 kHz: 1 dB
• Tracking Ability at 315 Hz: 120 μm
• Dynamic Lateral Compliance: 14 μm/mN
• Tracking Force Range: 3-5 g
• Recommended Tracking Force: 4 g
• Internal Impedance / DC Resistance: 1200 Ohm
• Internal Inductance: 850 mH
• Recommended Load Resistance: 47 kOhm
• Recommended Load Capacitance: 200-400 pF
• Cartridge Weight: 18.5 g
• Mounting Type: Concorde / compatible bayonet mount
• Replacement Stylus: Stylus CC MKII Scratch
What's Included:

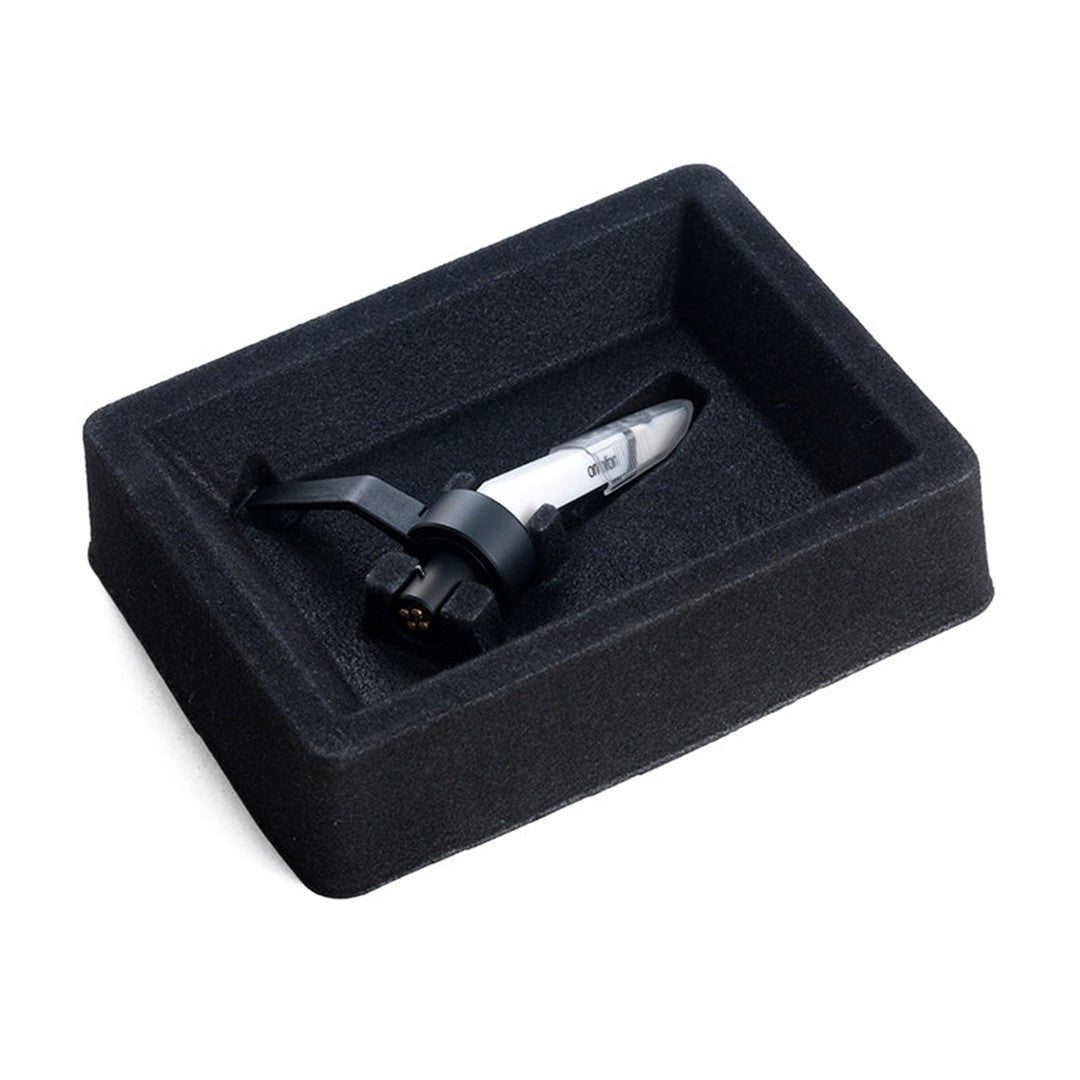

• Ortofon Concorde MKII Scratch cartridge
• Preinstalled Stylus
Scratch Performance Built for Turntablists:
The Ortofon CC MKII SCRATCH suits DJs who prioritise scratching and back-cueing performance. Its spherical stylus, high tracking ability, and 10 mV output support demanding vinyl techniques. Furthermore, the Concorde format provides a practical solution for compatible DJ turntable setups.
