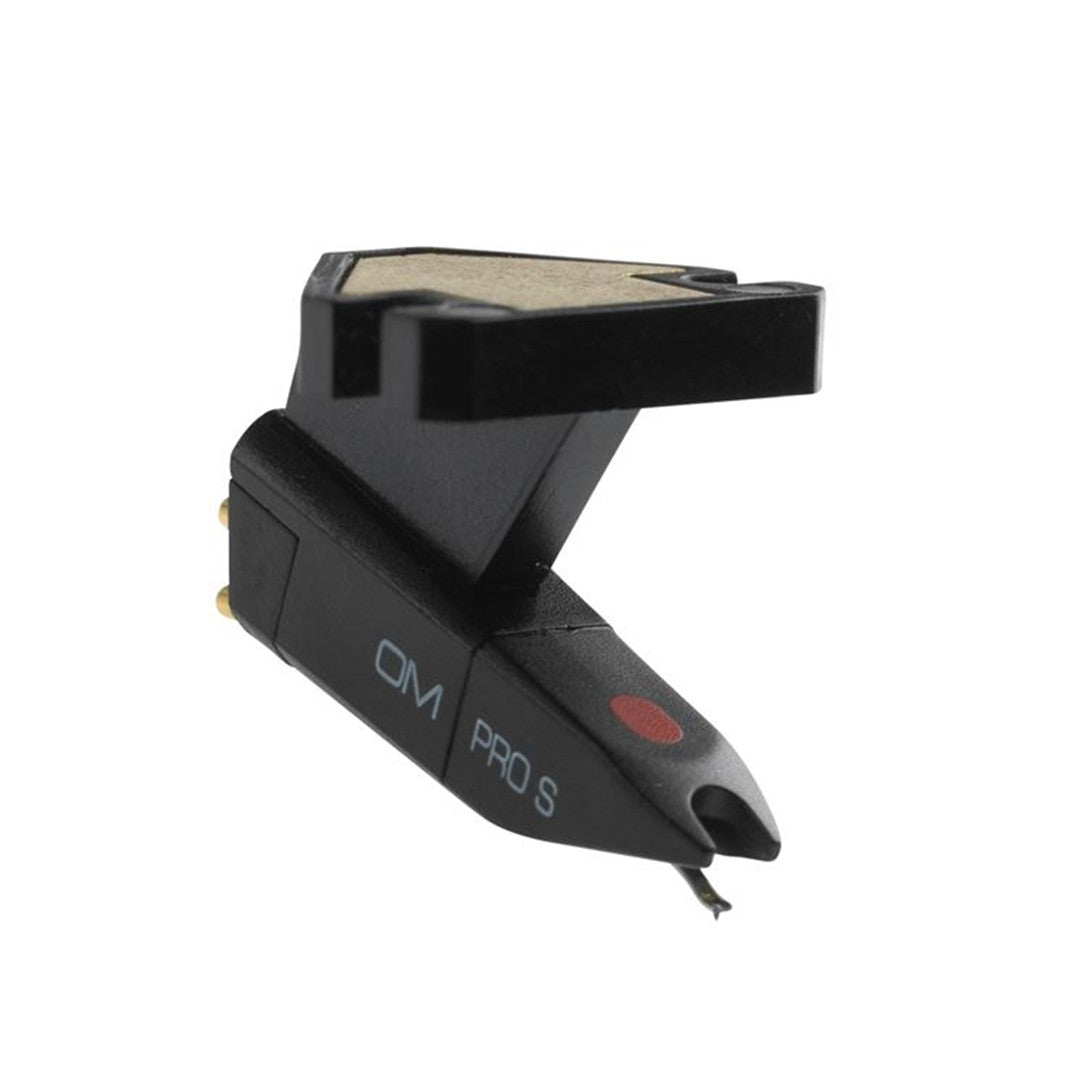

Ortofon OM PRO S – All-round Entry Level Cartridge

Overview:

The Ortofon OM PRO S is an all-round entry-level DJ cartridge for newcomers developing their vinyl skills. Its spherical diamond stylus helps minimise scratching during regular playback and DJ use. A solid aluminium cantilever supports active turntable sessions. Additionally, 70 μm tracking ability and 5 mV output provide dependable performance across various DJ applications and music styles.

Key Features:

•    Entry-Level DJ Design: The OM PRO S provides a practical starting point for newcomers                        exploring vinyl DJ performance.
•    Spherical Diamond Stylus: The 18 μm spherical stylus helps minimise scratching while                          supporting consistent groove contact during playback.
•    Solid Aluminium Cantilever: The aluminium cantilever handles active turntable use, supporting        DJs during energetic vinyl sessions.
•    Reliable Tracking: The cartridge achieves 70 μm tracking ability at 315 Hz for                                                consistent groove tracking.
•    Versatile DJ Performance: Its all-round design suits various settings and music styles, making          it useful for developing DJs.
•    5 mV Output: The 5 mV output provides a suitable signal level for compatible DJ equipment                and phono inputs.
•    Flexible Tracking Force: The cartridge supports a 3-5 g tracking range, with 4 g                                          recommended by Ortofon.

Specifications:

•    Product: OM PRO S
•    Product Type: Entry-level DJ cartridge
•    Optimised For: All-round DJ use
•    Stylus Type: Spherical
•    Stylus Tip Radius: R 18 μm
•    Cantilever Material: Aluminium
•    Output Voltage at 1 kHz, 5 cm/sec: 5 mV
•    Tracking Ability at 315 Hz: 70 μm
•    Dynamic Lateral Compliance: 7 μm/mN
•    Channel Separation at 1 kHz: 20 dB
•    Channel Balance at 1 kHz: 2 dB
•    Recommended Tracking Force: 4 g
•    Tracking Angle: 20°
•    Internal Impedance / DC Resistance: 750 Ohm
•    Internal Inductance: 450 mH
•    Recommended Load Resistance: 47 kOhm
•    Recommended Load Capacitance: 200-600 pF
•    Cartridge Weight: 5 g
•    Replacement Stylus: Stylus PRO S
•    Mounting Type: Half inch mount

What's Included:

•    Ortofon OM PRO S cartridge
•    Stylus PRO S

A Practical Start for Vinyl DJs:

The Ortofon OM PRO S suits newcomers building confidence with vinyl DJing. Its durable construction, spherical stylus, and reliable tracking characteristics support regular use. Furthermore, the replaceable Stylus PRO S provides a specified option for continued cartridge use.
