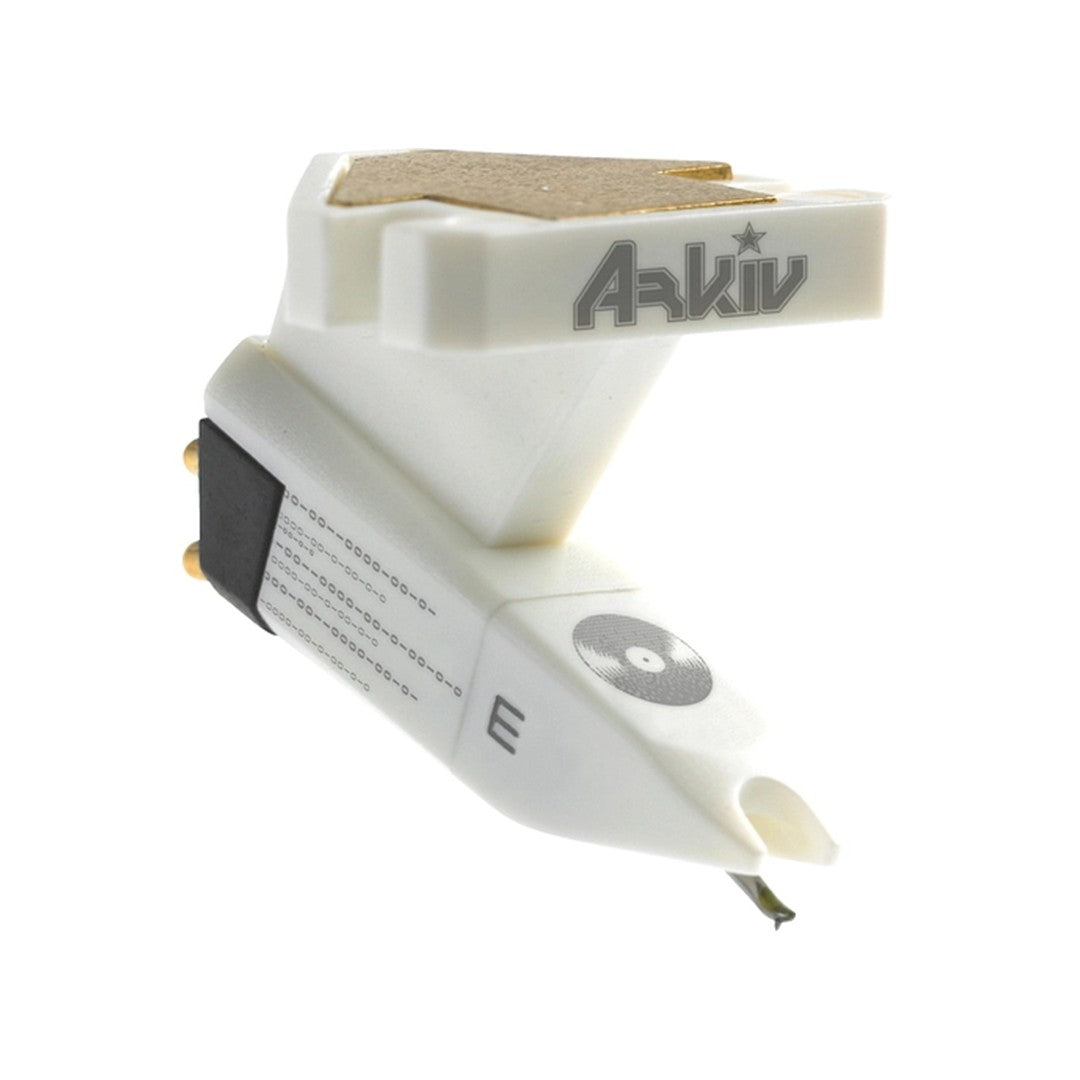

Ortofon STYLUS ARKIV – Replacement Stylus for Vinyl-to-digital Transcription
Overview:
The Ortofon STYLUS ARKIV is a Special Elliptical replacement stylus for the CONCORDE & OM ARKIV CARTRIDGE. It supports vinyl-to-digital transcription, sampling, and professional recording applications. Its elliptical profile provides detailed groove tracing, while the 6 mV output supports a strong signal. Additionally, 23 dB channel separation helps preserve stereo detail during accurate vinyl playback.
Key Features:
• Special Elliptical Profile: The 13/25 μm profile traces record grooves precisely, helping capture detailed musical information.
• Transcription-Focused Design: The stylus suits vinyl-to-digital workflows, supporting accurate results during sampling and recording applications.
• Detailed Audio Reproduction: Its broad frequency response supports detailed playback across the recorded programme.
• Clear Stereo Information: The 23 dB channel separation helps retain defined stereo information during playback and transcription.
• Stable Groove Tracking: An 80 μm tracking ability supports consistent stylus movement during demanding vinyl playback.
• Flexible Tracking Force: The 2.0–4.0 g range allows adjustment, with 3.0 g recommended for normal operation.
• Compatible Arkiv Replacement: Designed for the CONCORDE & OM ARKIV CARTRIDGE, it maintains the existing cartridge system.
Specifications:
• Compatible Cartridge: CONCORDE & OM ARKIV CARTRIDGE
• Stylus Type: Special Elliptical
• Stylus Tip Radius: r/R 13/25 μm
• Output Voltage at 1 kHz, 5 cm/sec: 6 mV
• Frequency Response: 20 Hz - 20 kHz, ±2 dB
• Channel Separation at 1 kHz: 23 dB
• Channel Balance at 1 kHz: 2 dB
• Tracking Ability at 315 Hz: 80 μm
• Compliance, Dynamic, Lateral: 9 μm/mN
• Recommended Tracking Force: 3.0 g (30 mN)
• Tracking Force Range: 2.0-4.0 g (20-40 mN)
• Tracking Angle: 20°
• Stylus Weight: 1 g
• Internal Impedance / DC Resistance: 750 Ohm
• Internal Inductance: 450 mH
• Recommended Load Resistance: 47 kOhm
• Recommended Load Capacitance: 200-600 pF
Vinyl Transcription Performance:
The Ortofon STYLUS ARKIV suits users who need accurate vinyl playback for recording and sampling. Its Special Elliptical profile supports detailed groove tracing and stable tracking. Furthermore, its defined stereo separation and broad frequency response support consistent transcription work. It also provides a practical replacement solution without changing the complete cartridge system.
