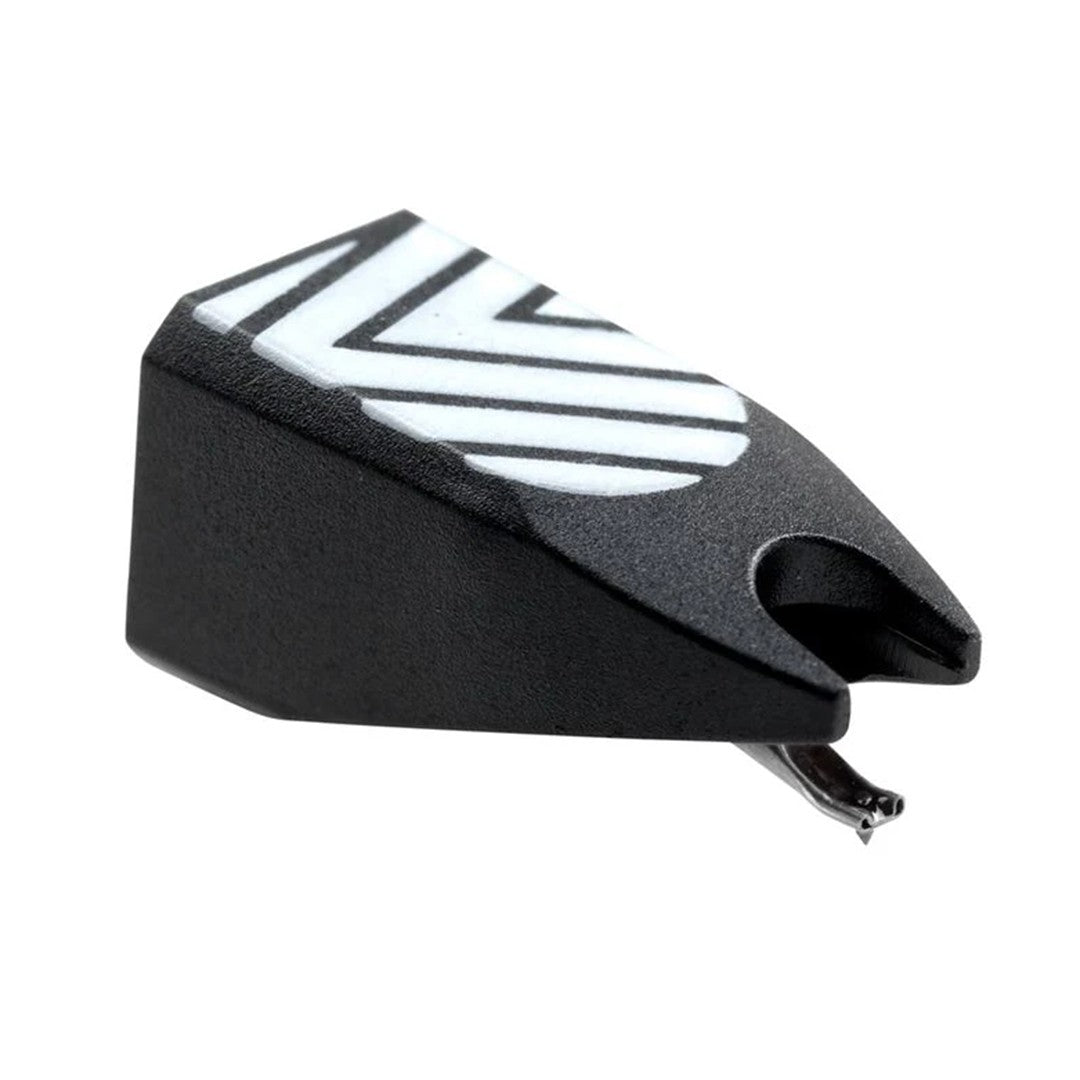

Ortofon STYLUS COCOON STD – Special Elliptical Replacement Stylus

Overview:

The Ortofon STYLUS COCOON STD is a special elliptical replacement stylus for the Ortofon-Cocoon club cartridge. It also works with OM, Concorde MKI Series, and Concorde Nightclub MkII cartridges. Its special elliptical profile supports demanding DJ techniques and heavy back-cueing. Additionally, the 8 mV output provides a strong signal, while 80 μm tracking ability supports dependable groove contact during active vinyl sessions.

Key Features:

•    Cocoon Cartridge Replacement: Designed for the Ortofon-Cocoon club cartridge, it restores              performance without replacing the complete cartridge.
•    Special Elliptical Profile: The elliptical stylus supports detailed playback while handling                        demanding club-oriented vinyl performance.
•    Heavy Back-Cueing Support: Its design accommodates repeated back-cueing, helping DJs                maintain control during active sessions.
•    Strong 8 mV Output: The 8 mV output delivers a strong signal for compatible mixers                                and preamplifiers.
•    Reliable Groove Tracking: An 80 μm tracking ability supports consistent stylus movement                    across demanding vinyl playback.
•    Controlled Stereo Performance: The 23 dB channel separation helps maintain clear and                        defined stereo reproduction.
•    Flexible Tracking Force: A 2.0–5.0 g range provides adjustment, while 3.0 g remains                                the recommended setting.

Specifications:

•    Product: Ortofon STYLUS COCOON STD
•    Stylus Type: Special Elliptical
•    Compatible Cartridge: OM, Concorde MKI Series & Concorde Nightclub MkII
•    Output Voltage at 1 kHz, 5cm/sec: 8 mV
•    Stylus Weight: 1 g
•    Channel Separation at 1 kHz: 23 dB
•    Tracking Ability at 315 Hz: 80 μm
•    Frequency Response: 20 Hz-20 kHz, +/-1.5 dB
•    Recommended Tracking Force: 3.0 g (30 mN)
•    Tracking Force Range: 2.0-5.0 g (20-50 mN)
•    Compliance, Dynamic, Lateral: 7 μm/mN
•    Channel Balance at 1 kHz: 1.5 dB

Made for Demanding Vinyl Sessions:

The Ortofon STYLUS COCOON STD suits DJs who need dependable replacement performance from compatible cartridges. Its special elliptical design supports back-cueing, reliable tracking, and strong signal output. Therefore, it provides a practical option for active vinyl DJs who want to maintain their existing setup.
