Ortofon STYLUS MADE FROM SCRATCH – MFS Spherical Replacement Stylus
Overview:

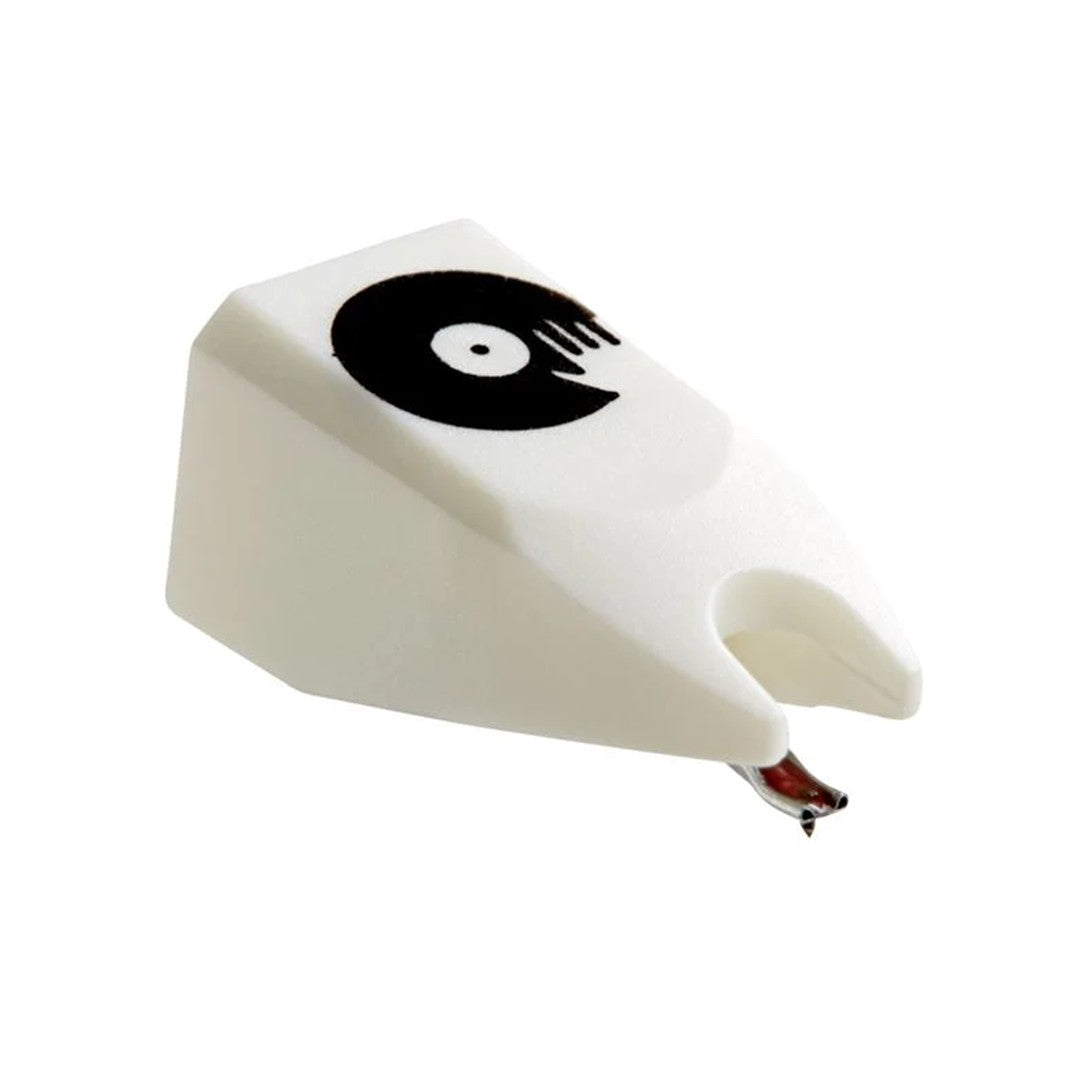

The Ortofon STYLUS MADE FROM SCRATCH MFS is a Spherical replacement stylus for the Concorde MFS Cartridge. Its spherical design supports heavy back-cueing and demanding vinyl DJ applications. The stylus delivers a strong 7 mV output for compatible mixers and preamplifiers. Additionally, its 80 μm tracking ability helps maintain dependable groove contact. A flexible tracking force range also supports different turntable setups.
Key Features:

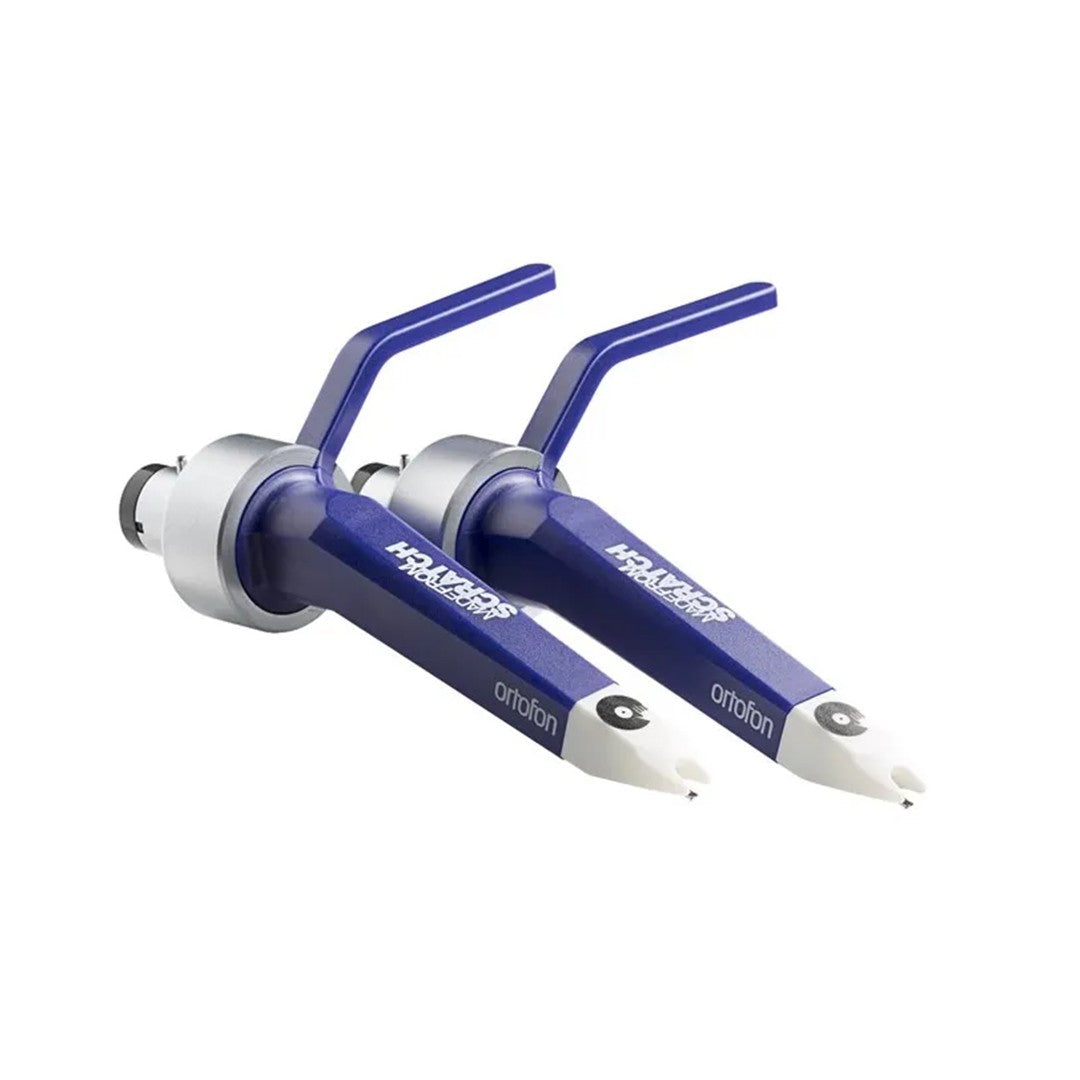

• Made for Concorde MFS: The stylus is compatible with the Concorde MFS Cartridge for supported replacement use.
• Back-Cueing Support: Its spherical profile handles heavy back-cueing while maintaining dependable contact with record grooves.
• High Signal Output: The 7 mV output provides a strong signal through compatible mixers and preamplifiers.
• Spherical Diamond Profile: An R 18 μm tip radius supports dependable groove contact during active vinyl performance.
• Dependable Tracking: The 80 μm tracking ability supports controlled stylus movement during demanding DJ applications.
• Flexible Setup Range: A 3.0-5.0 g tracking force range allows adjustment for different operating requirements.
• Clear Stereo Reproduction: The 25 dB channel separation and 1.5 dB balance support consistent stereo output.
Specifications:
• Compatible Cartridge: Concorde MFS Cartridge
• Stylus Type: Spherical
• Stylus Tip Radius: R 18 μm
• Output Voltage at 1 kHz, 5 cm/sec: 7 mV
• Tracking Ability at 315 Hz: 80 μm
• Compliance, Dynamic, Lateral: 6 μm/mN
• Recommended Tracking Force: 4.0 g (40 mN)
• Tracking Force Range: 3.0-5.0 g (30-50 mN)
• Tracking Angle: 20°
• Channel Separation at 1 kHz: 25 dB
• Channel Balance at 1 kHz: 1.5 dB
• Internal Impedance, DC Resistance: 750 Ohm
• Cartridge Weight: 18.5 g
• Recommended Load Resistance: 47 kOhm
• Internal Inductance: 450 mH
• Recommended Load Capacitance: 200-600 pF
Built for Demanding Vinyl Sessions:
The Ortofon STYLUS MADE FROM SCRATCH (MFS) suits DJs who rely on back-cueing and active vinyl techniques. Its spherical profile, strong output, and tracking capability support demanding sessions. Furthermore, its adjustable tracking range helps users configure compatible turntable systems appropriately.
