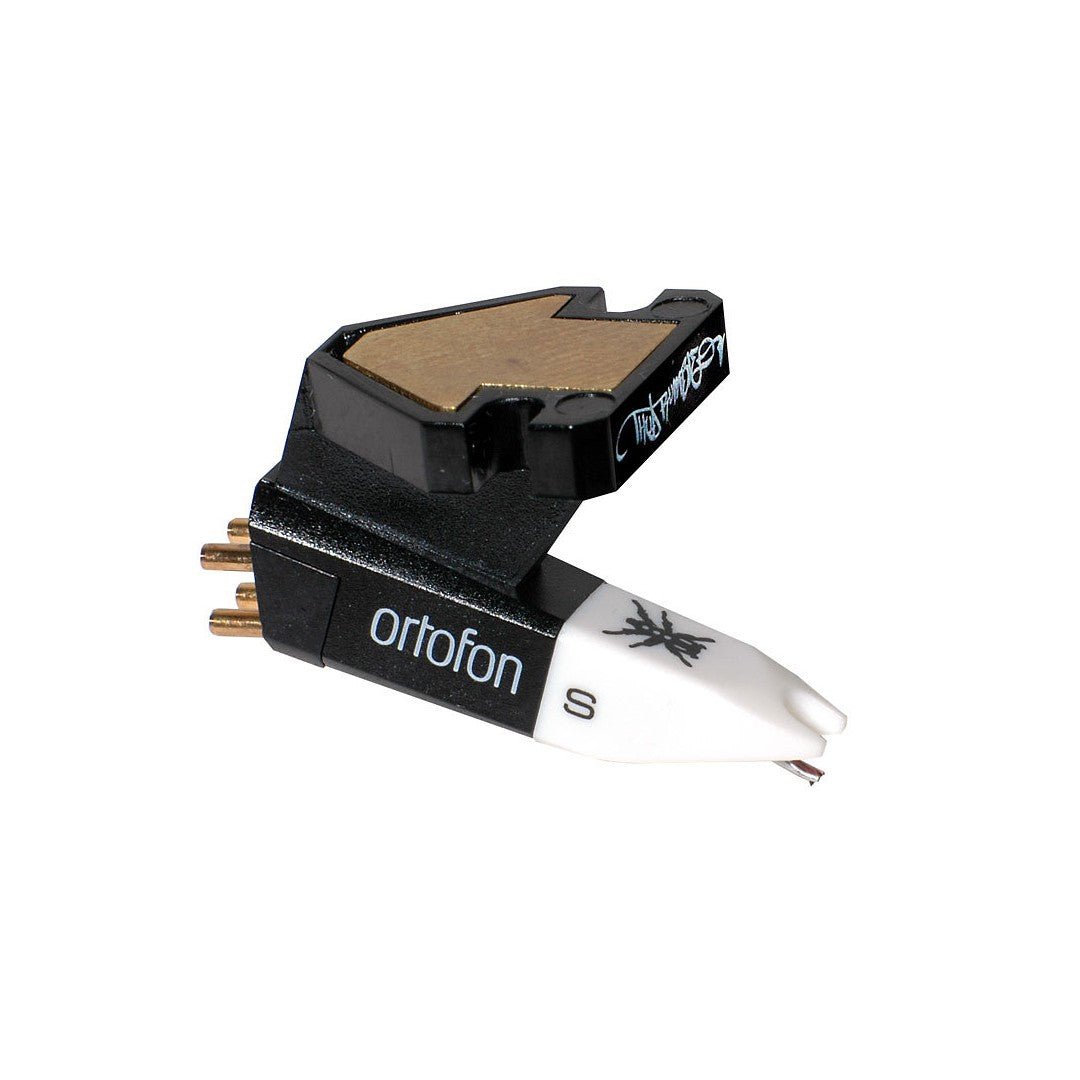

Ortofon STYLUS Q.BERT – Spherical Replacement Stylus

Overview:

The Ortofon STYLUS Q.BERT is a spherical replacement stylus for compatible OM and Concorde Q.BERT cartridges. It supports scratching, back-cueing, and demanding turntable techniques. Its spherical profile provides 90 μm tracking ability, while the 11 mV output delivers a strong signal. Additionally, its focused sonic response helps reduce surface noise and emphasise scratching during performance.

Key Features:

•    Scratch and Back-Cueing: Designed for demanding turntablism, it helps DJs maintain control            during expressive techniques.
•    Spherical Stylus Profile: The R 18 μm tip follows record grooves effectively during intensive                turntable movements.
•    90 μm Tracking Ability: Strong groove tracing helps maintain reliable tracking throughout                   demanding scratch and back-cueing sessions.
•    Ultra-High 11 mV Output: The high output delivers a strong signal for energetic DJ and                            turntable applications.
•    Focused Sonic Response: A subdued high-frequency response helps minimise surface noise            from worn vinyl.
•    Accentuated Mid-Range: The enhanced mid-range gives scratching a more prominent position        within the sound stage.
•    Flexible Tracking Force: A 2.0-4.0 g range lets DJs adjust tracking for different                                          performance requirements.

Specifications:

•    Replacement stylus unit: Q.Bert
•    Compatible cartridges: OM and Concorde Q.BERT cartridges
•    Stylus type: Spherical
•    Stylus tip radius: R 18 μm
•    Output voltage at 1 kHz, 5 cm/sec: 11 mV
•    Tracking ability at 315 Hz: 90 μm
•    Tracking force range: 2.0-4.0 g (20-40 mN)
•    Recommended tracking force: 3.0 g (30 mN)
•    Frequency response: 20 Hz-20 kHz, 3 dB
•    Channel separation at 1 kHz: 22 dB
•    Channel balance at 1 kHz: 1.5 dB
•    Compliance, dynamic, lateral: 12 μm/mN
•    Tracking angle: 20°
•    Internal impedance / DC resistance: 1,680 Ohm
•    Internal inductance: 920 mH
•    Recommended load resistance: 47 kOhm
•    Recommended load capacitance: 200-400 pF
•    Cartridge weight: 18.5 g

Who Is the Ortofon STYLUS Q.BERT For?

The STYLUS Q.BERT suits turntablists and mix DJs using compatible Q.BERT cartridges. Its strong output and reliable tracking support demanding vinyl performance. Furthermore, its scratch-focused response helps DJs perform scratching, back-cueing, and other expressive turntable techniques. It offers a practical replacement for maintaining compatible OM and Concorde Q.BERT cartridge setups.
