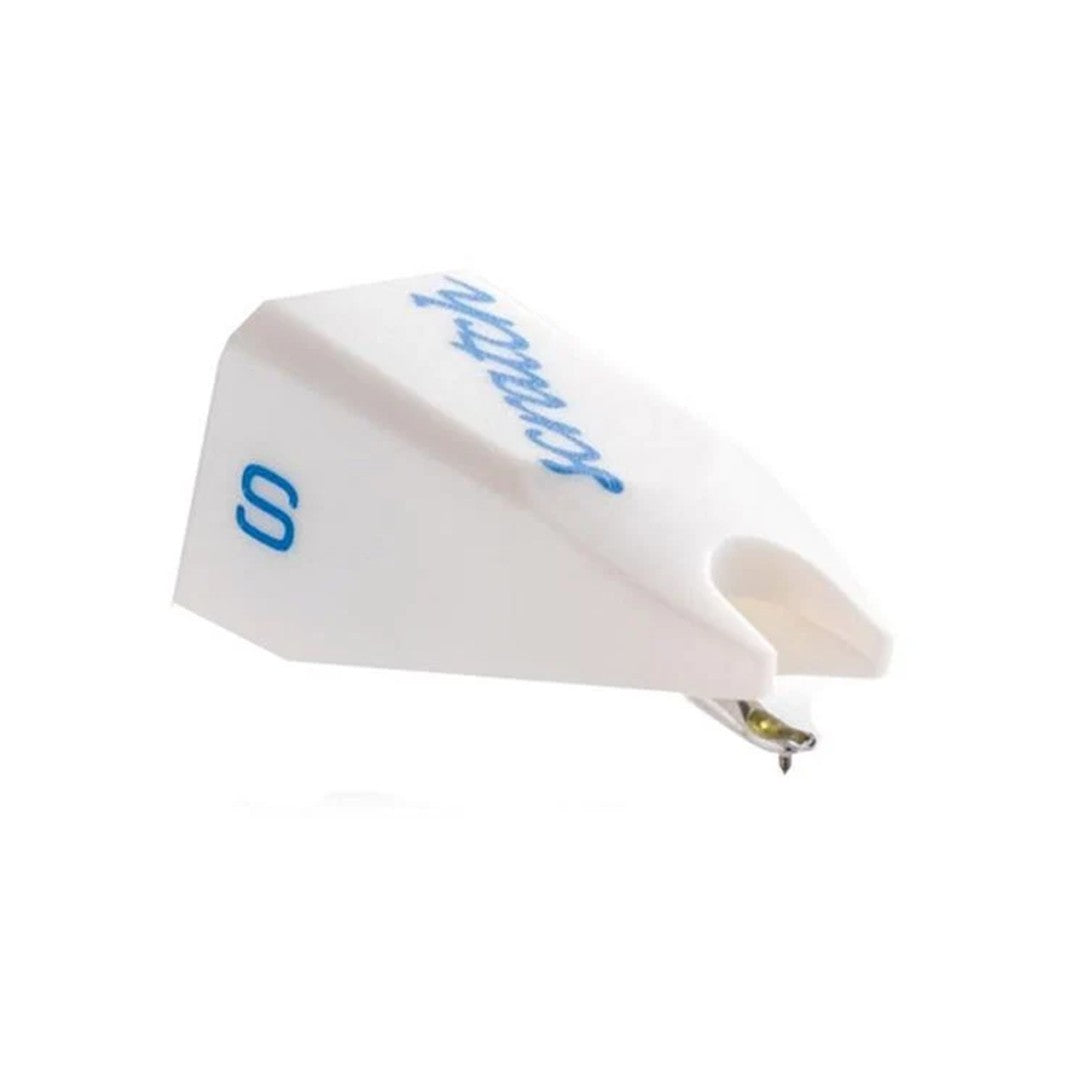

Ortofon STYLUS SCRATCH WHITE – Spherical Replacement Stylus

Overview:

The Ortofon STYLUS SCRATCH WHITE is a Spherical replacement stylus for compatible Scratch White cartridge systems. It works with the Concorde Scratch White limited edition and OM Scratch White cartridge. The spherical profile uses an R 18 μm tip radius and delivers 7 mV output. Furthermore, its 80 μm tracking ability supports demanding DJ techniques and regular vinyl playback.

Key Features:

•    Scratch White Compatibility: Designed for Concorde Scratch White limited edition and OM                  Scratch White cartridge systems.
•    Spherical Groove Contact: The R 18 μm spherical profile provides consistent contact                              within compatible vinyl setups.
•    Strong Signal Delivery: Its 7 mV output provides a strong signal under the                                                      specified measurement conditions.
•    Stereo Channel Control: The 25 dB separation and 1.5 dB balance support clear,                                          consistent stereo output.
•    Wide Playback Response: A 20 Hz–20 kHz response covers the specified frequency                                range for vinyl playback.
•    Flexible Tracking Setup: The 3.0–5.0 g range lets DJs adjust tracking force for their equipment.
•    Stable DJ Tracking: Its 80 μm tracking ability supports reliable groove contact during                            demanding turntable techniques.

Specifications:

•    Product: Ortofon Stylus Scratch White
•    Compatible Cartridge: Concorde Scratch White limited edition
•    Compatible Cartridge: OM Scratch White
•    Cartridge Weight: 5 g
•    Stylus Weight: 2 g
•    Stylus Type: Spherical
•    Stylus Tip Radius: R 18 μm
•    Channel Balance at 1 kHz: 1.5 dB
•    Output Voltage at 1 kHz, 5 cm/sec: 7 mV
•    Channel Separation at 1 kHz: 25 dB
•    Frequency Response: 20 Hz - 20 kHz, 3 dB/-2 dB
•    Tracking Ability at 315 Hz: 80 μm
•    Compliance, Dynamic, Lateral: 6 μm/m N
•    Tracking Force Range: 3.0-5.0 g (30-50 mN)
•    Recommended Tracking Force: 4.0 g (40 mN)
•    Tracking Angle: 20°
•    Internal Impedance / DC Resistance: 750 Ohm
•    Recommended Load Resistance: 47 kOhm
•    Internal Inductance: 450 mH
•    Recommended Load Capacitance: 200-600 pF

Maintain Your Scratch White Setup:

The Ortofon STYLUS SCRATCH WHITE replacement stylus suits DJs maintaining compatible Scratch White cartridge systems. Its spherical design, adjustable tracking range, and strong output support varied vinyl applications. Therefore, it offers a straightforward replacement option for continued DJ use.
