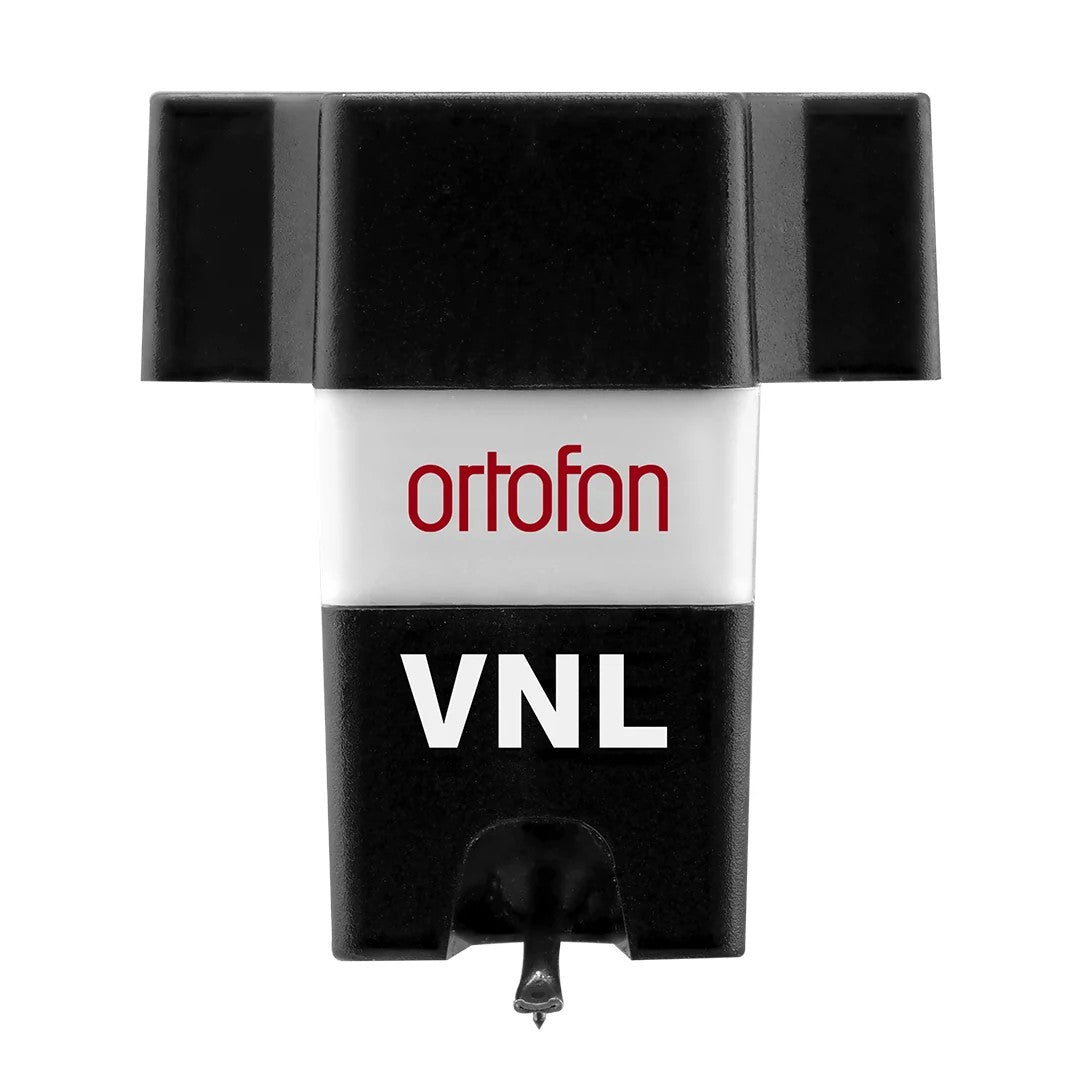

Ortofon VNL – All Round DJ Cartridge with VNL II Stylus
Overview:
The Ortofon VNL Ortofon VNL All Round DJ Cartridge with VNL II Stylus is a moving magnet cartridge designed for versatile DJ performance. It supports scratching, back-cueing, DVS, turntablism, and traditional vinyl playback. The cartridge includes a pre-mounted VNL II stylus, offering a rigid suspension characteristic for controlled handling. Additionally, its 6 mV output, spherical diamond stylus, and 90 µm tracking ability provide dependable performance during demanding sessions.
Key Features:
• Pre-Mounted VNL II Stylus: The included VNL II stylus provides a rigid suspension feel for controlled DJ performance.
• 90 µm Tracking Ability: The cartridge maintains stable groove contact, supporting scratching, back-cueing, and intensive vinyl techniques.
• Spherical Diamond Stylus: The R 18 µm stylus profile supports reliable groove handling during demanding DJ applications.
• 6 mV Output: The 6 mV output provides strong signal levels while maintaining balanced performance across compatible playback systems.
• Three Stylus Options: VNL I, VNL II, and VNL III provide different suspension characteristics for varied performance preferences.
• DVS and Vinyl Use: The cartridge supports both DVS applications and traditional vinyl playback for versatile DJ setups.
• Precision Construction: Ultrasonic welding and robotic stylus assembly promote consistent construction while helping reduce unwanted resonances.
Specifications:
• Brand: Ortofon
• Product: VNL All Round DJ Cartridge
• Cartridge Type: Moving Magnet
• Cartridge Weight: 6.5 g
• Premounted Cartridge Weight: 16.0 g
• Cartridge Colour: White
• Stylus Type: Spherical Diamond
• Replacement Stylus: Stylus VNL
• Compatible Stylus Options: VNL I, VNL II, VNL III
• Output Voltage at 1 kHz, 5 cm/sec: 6 mV
• Tracking Ability at 315 Hz: 90 µm
• Cantilever Material: Aluminium
• Stylus Tip Radius: R 18 µm
• Pre-Mounted Stylus: VNL II
• Channel Separation at 1 kHz: 20 dB
• Frequency Response: 20 Hz - 20 kHz, –2 / +4 dB
• Dynamic Lateral Compliance: 15 µm/mN
• Recommended Tracking Force: 4 g
• Tracking Force Range: 3-5 g
• Recommended Load Resistance: 47 kOhm
• Internal Impedance / DC Resistance: 700 Ohm
• Internal Inductance: 450 mH
• Recommended Load Capacitance: 200-600 pF
Flexible DJ Cartridge for Multiple Techniques:
The Ortofon VNL suits DJs who need one cartridge for varied performance styles. Its pre-mounted VNL II stylus provides a rigid suspension, while the interchangeable VNL system offers further handling options. With support for DVS, vinyl playback, scratching, and back-cueing, it provides a versatile solution for demanding DJ setups.
