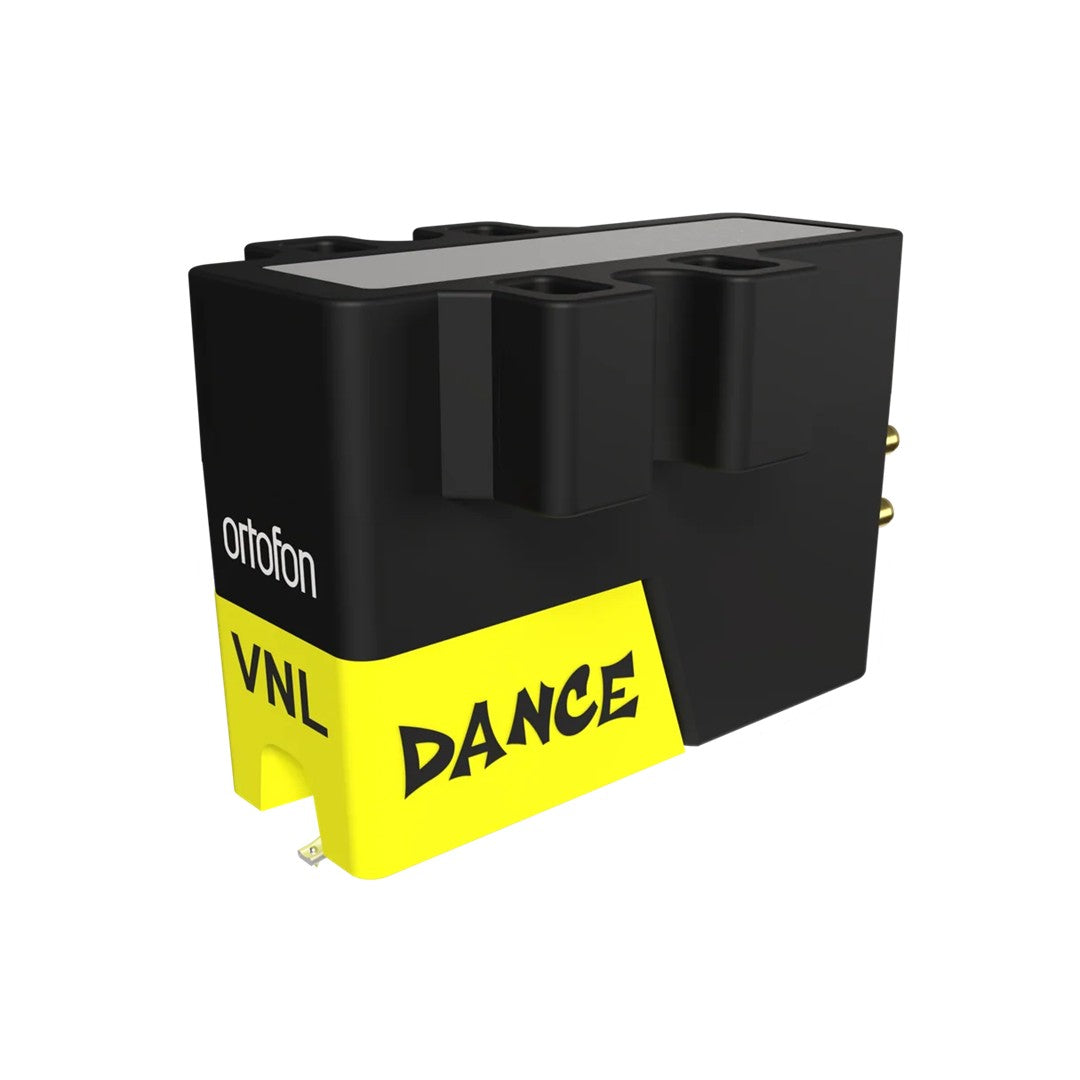

Ortofon VNL DANCE High-Output DJ Cartridge Top Front Right View
Ortofon VNL DANCE High-Output DJ Cartridge Front Right View
Ortofon VNL DANCE High-Output DJ Cartridge Side Left View
Ortofon VNL DANCE High-Output DJ Cartridge Side Right View
Ortofon VNL DANCE High-Output DJ Cartridge Stylus Cover

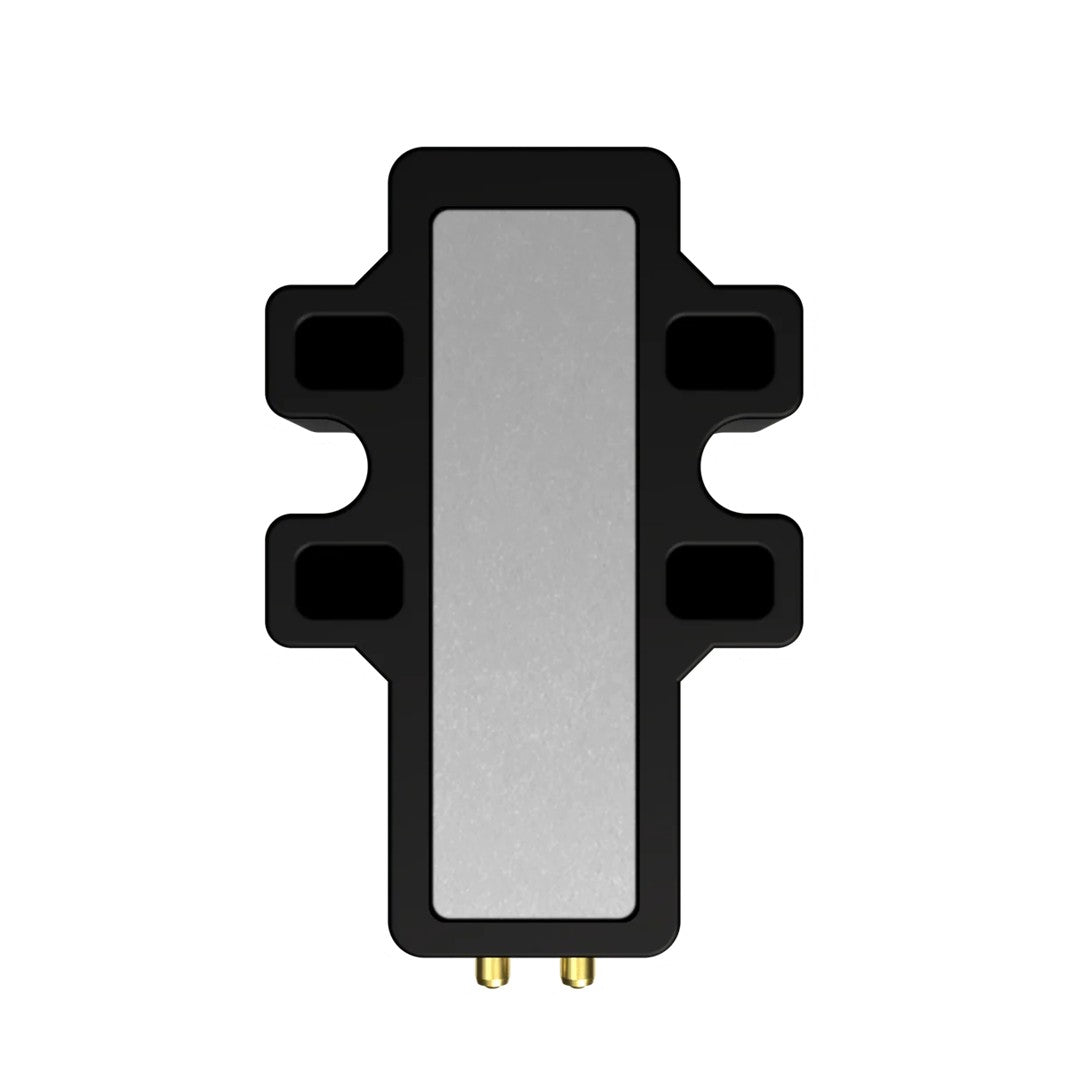

Ortofon VNL DANCE High-Output DJ Cartridge Top

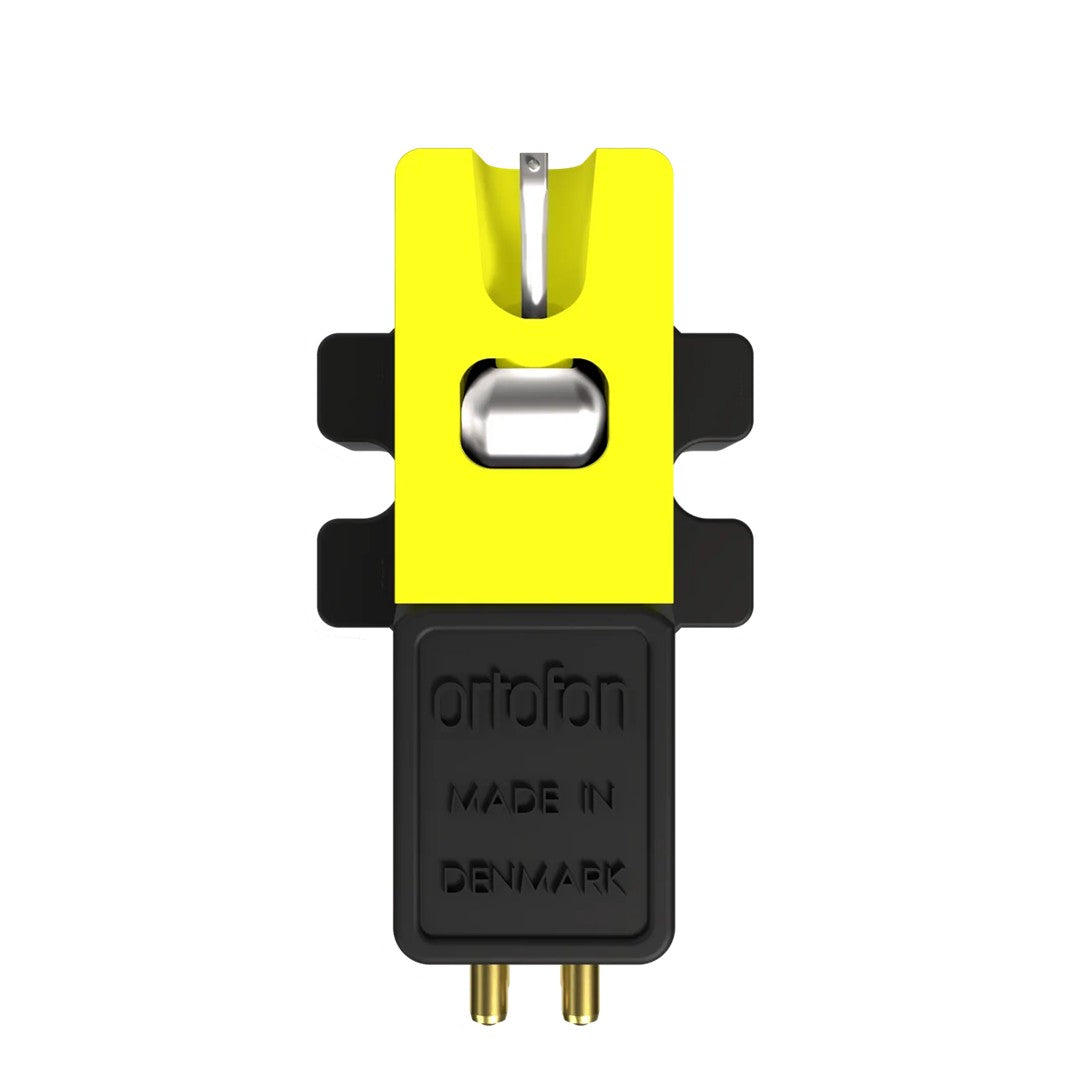

Ortofon VNL DANCE High-Output DJ Cartridge Bottom
Ortofon VNL DANCE High-Output DJ Cartridge Rear View
Ortofon

Ortofon VNL DANCE – High-Output DJ Cartridge

Overview:

The Ortofon VNL DANCE High-Output DJ Cartridge delivers strong output and precise vinyl performance for demanding DJs. Its elliptical diamond stylus captures detailed groove information while maintaining reliable tracking during active techniques. Meanwhile, the rigid aluminium cantilever and Ortofon exclusive suspension support controlled stylus movement. The fluorescent yellow stylus also provides improved visibility under UV lighting.

Key Features:

•    10 mV High Output: The 10 mV output provides strong signal levels for energetic playback                      across compatible DJ systems.
•    Elliptical Diamond Stylus: The R 18 μm stylus traces grooves precisely, helping reproduce                    sharper detail and fuller sound.
•    100 μm Tracking Ability: High tracking ability supports secure groove contact during                              scratching, back-cueing, and energetic transitions.
•    Rigid Aluminium Cantilever: The aluminium cantilever provides a stable platform for controlled        stylus movement during demanding sessions.
•    Ortofon Exclusive Suspension: The suspension helps maintain controlled groove contact                    when DJs use demanding performance techniques.
•    Fluorescent Yellow Stylus: The neon-yellow stylus glows under UV light, making it easier to                identify in darker booths.
•    Interchangeable VNL Stylus: The VNL DANCE stylus works across VNL cartridges, offering                practical flexibility for different setups.

Specifications:

•    Product: Ortofon VNL DANCE
•    Cartridge Weight: 7 grams
•    Stylus Type: Elliptical diamond
•    Output Voltage at 1 kHz, 5 cm/sec: 10 mV
•    Mounting Type: Half-inch mount
•    Stylus Tip Radius: R 18 μm
•    Frequency Response: 20 Hz - 20 kHz, ±3 dB
•    Channel Separation at 1 kHz: 22 dB
•    Tracking Ability at 315 Hz: 100 μm
•    Dynamic Lateral Compliance: 12 μm/mN
•    Cantilever Material: Aluminium
•    Stylus Suspension: Ortofon exclusive
•    Coil System: Quad coils
•    Coil Wire Material: OFC
•    Recommended Tracking Force: 4.0 grams
•    Recommended Load Resistance: 47 KΩ
•    Cartridge Colour: Black
•    Stylus Colour: Yellow
•    Replacement Stylus: Stylus VNL DANCE

What's Included:

•    Ortofon VNL DANCE Cartridge
•    Stylus VNL DANCE

Detailed Vinyl Performance for DJs:

The Ortofon VNL DANCE suits DJs who want strong output and precise groove handling from a dedicated vinyl cartridge. Its elliptical stylus delivers detailed reproduction, while 100 μm tracking ability supports demanding techniques. Additionally, the replaceable VNL stylus system provides flexibility when maintenance or configuration changes become necessary.
