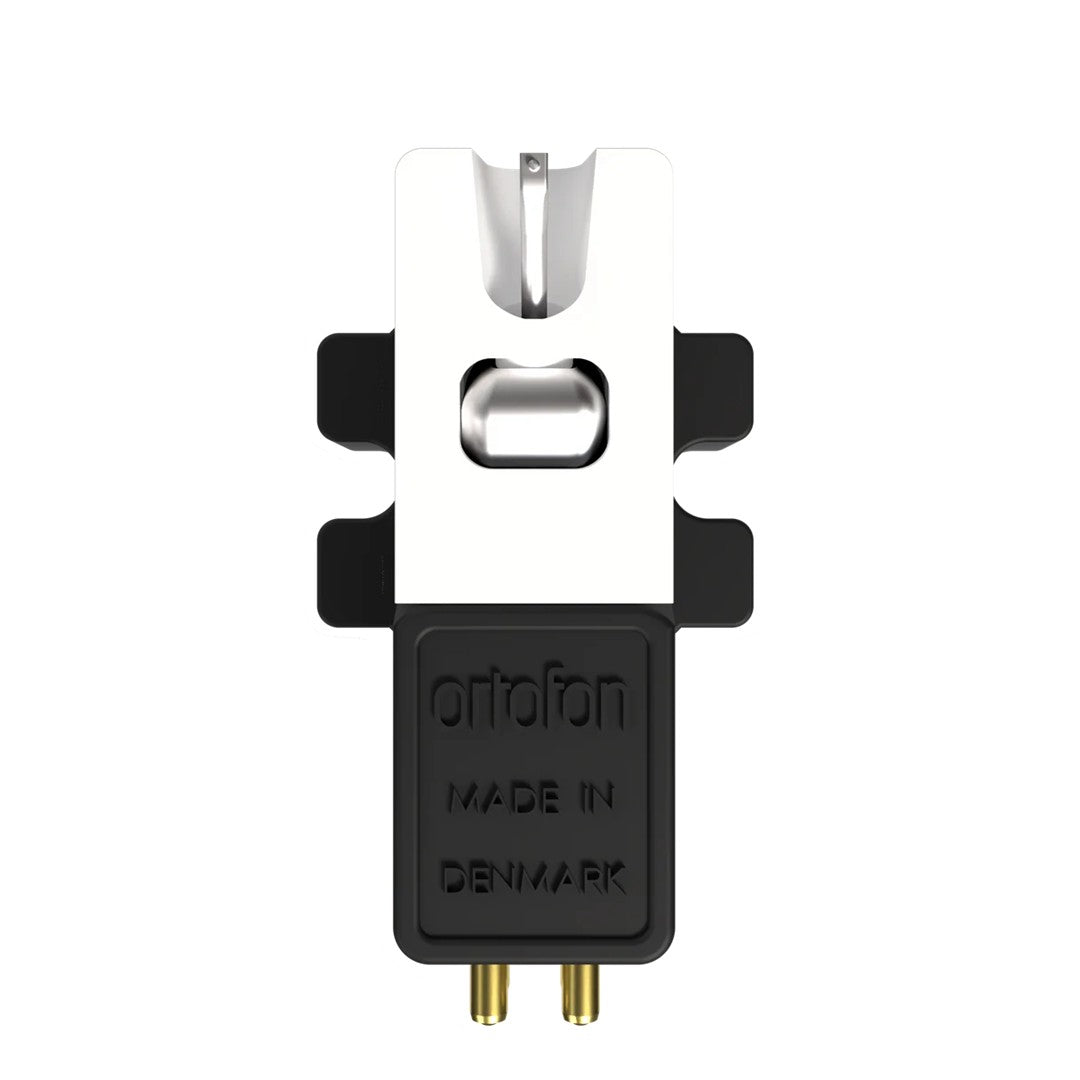

Ortofon VNL TRIX High-Output DJ Cartridge Bottom

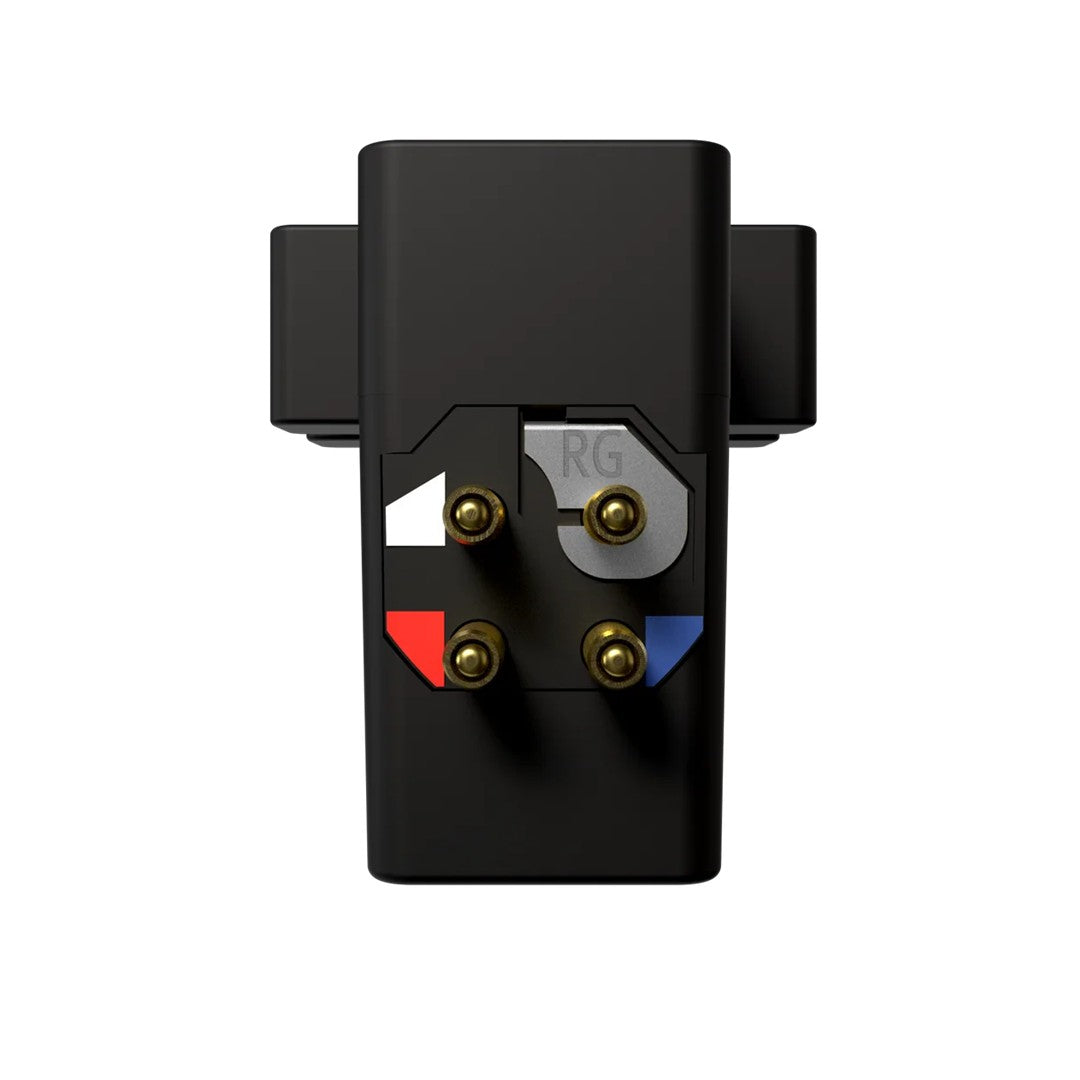

Ortofon VNL TRIX High-Output DJ Cartridge Rear View
Ortofon

Ortofon VNL TRIX – High-Output DJ Cartridge

Overview:

The Ortofon VNL TRIX High-Output DJ Cartridge is built for DJs who need stable tracking and strong signal output. Its 10 mV output supports demanding DJ systems, while the spherical diamond stylus handles scratching and back-cueing. Additionally, the rigid aluminium cantilever and Ortofon exclusive suspension provide controlled groove tracking. The interchangeable VNL design also allows flexible stylus replacement for different performance requirements.

Key Features:

•    10 mV High Output: The 10 mV output provides strong signal levels for performance-focused DJ        systems and turntable setups.
•    Stable Tracking Performance: Its 100 μm tracking ability helps maintain groove contact during        scratching and intensive turntable techniques.
•    Spherical Diamond Stylus: The R 18 μm spherical stylus supports reliable tracking while                        remaining suited to scratching and back-cueing.
•    UV-Visible White Stylus: The fluorescent white stylus improves visibility under ultraviolet                    lighting, helping DJs locate it quickly.
•    Rigid Aluminium Cantilever: The aluminium cantilever provides a durable platform for                            demanding DJ techniques and consistent turntable performance.
•    Ortofon Exclusive Suspension: The specialised suspension supports controlled stylus                          movement and dependable tracking during demanding performance sessions.
•    Interchangeable VNL Platform: The cartridge supports compatible VNL styli, allowing DJs to            select replacement options for their performance approach.

Specifications:

•    Brand: Ortofon
•    Product: VNL TRIX High Output DJ Cartridge
•    Cartridge Colour: Black
•    Cartridge Weight: 7 grams
•    Stylus Colour: White
•    Replacement Stylus: Stylus VNL TRIX
•    Output Voltage at 1 kHz, 5 cm/sec: 10 mV
•    Channel Separation at 1 kHz: 22 dB
•    Frequency Response: 20 Hz – 20 kHz, ±3 dB
•    Tracking Ability at 315 Hz: 100 μm
•    Dynamic Lateral Compliance: 12 μm/mN
•    Cantilever Material: Aluminium
•    Stylus Type: Spherical diamond
•    Stylus Tip Radius: R 18 μm
•    Stylus Suspension: Ortofon exclusive
•    Coil System: Quad coils
•    Coil Wire Material: OFC
•    Recommended Tracking Force: 4.0 grams
•    Optimised For: Scratching and high tracking performance
•    Mounting Type: Half-inch mount

What's Included:

•    Ortofon VNL TRIX Cartridge
•    Stylus VNL TRIX

Performance for Demanding DJs:

The Ortofon VNL TRIX DJ Cartridge suits DJs who rely on reliable tracking during active performances. Its high output, spherical stylus, and durable construction support scratching, back-cueing, and demanding turntable techniques. Meanwhile, the interchangeable VNL platform provides a practical way to maintain the cartridge for continued DJ use.
