Pioneer DJ DDJ-REV1 - 2-Channel Scratch-Style DJ Controller for Serato DJ Lite

Overview:

The Pioneer DJ DDJ-REV1 2-Channel Scratch-Style DJ Controller for Serato DJ Lite is a 2-channel DJ controller designed around a scratch-focused performance layout. It works with Serato DJ Lite and supports Serato DJ Pro with a license or subscription. Larger jog wheels, intuitive performance pads, and dedicated fader controls provide hands-on control. Plus, USB bus power and a lightweight 2.1 kg design make the controller easy to use and transport.

Key Features:

•    Battle-Style Layout: The layout recreates a setup based on two PLX turntables and a DJM-S              series mixer. This arrangement supports intuitive scratching and mixing.
•    Large Jog Wheels: The 154 mm jog wheels provide responsive control for scratching, helping            DJs perform detailed techniques with greater precision.
•    Lever FX: Pull the levers for quick effect bursts or push them up to hold effects during                           performances.
•    Tracking Scratch: Return tracks to their cue point automatically when moving the jog wheel,             making scratch techniques easier to manage.
•    Mixed Microphone Audio: Combine microphone input with master audio through Serato DJ                Lite, simplifying vocal performance and live streaming setups.
•    Scratch Bank: Access scratch samples instantly through four software-assigned banks, giving          DJs faster control during creative performances.
•    Portable USB-Powered Design: The 2.1 kg controller draws power through USB Type-B,                        eliminating the need for a separate external power supply.

Specifications:

•    Soundcard: 24 bit / 48 kHz
•    Signal-to-Noise Ratio: 103 dB
•    Distortion:  0.005 %
•    Frequency Range: 20 – 20,000 Hz
•    Channels: 2
•    Deck Control: 4
•    Jog Wheel Diameter: 154 mm
•    Trim Knob: Yes
•    Filter: Yes
•    Sampler: Yes
•    Hot Cues: 4
•    Autoloop: Yes
•    Power Consumption: 5V / 500mA
•    Power Supply: USB Type-B bus powered
•    Width: 526 mm
•    Height: 59.2 mm
•    Depth: 255.5 mm
•    Weight: 2.1 kg
•    Inputs: 1 MIC (1/4 inch TS Jack)

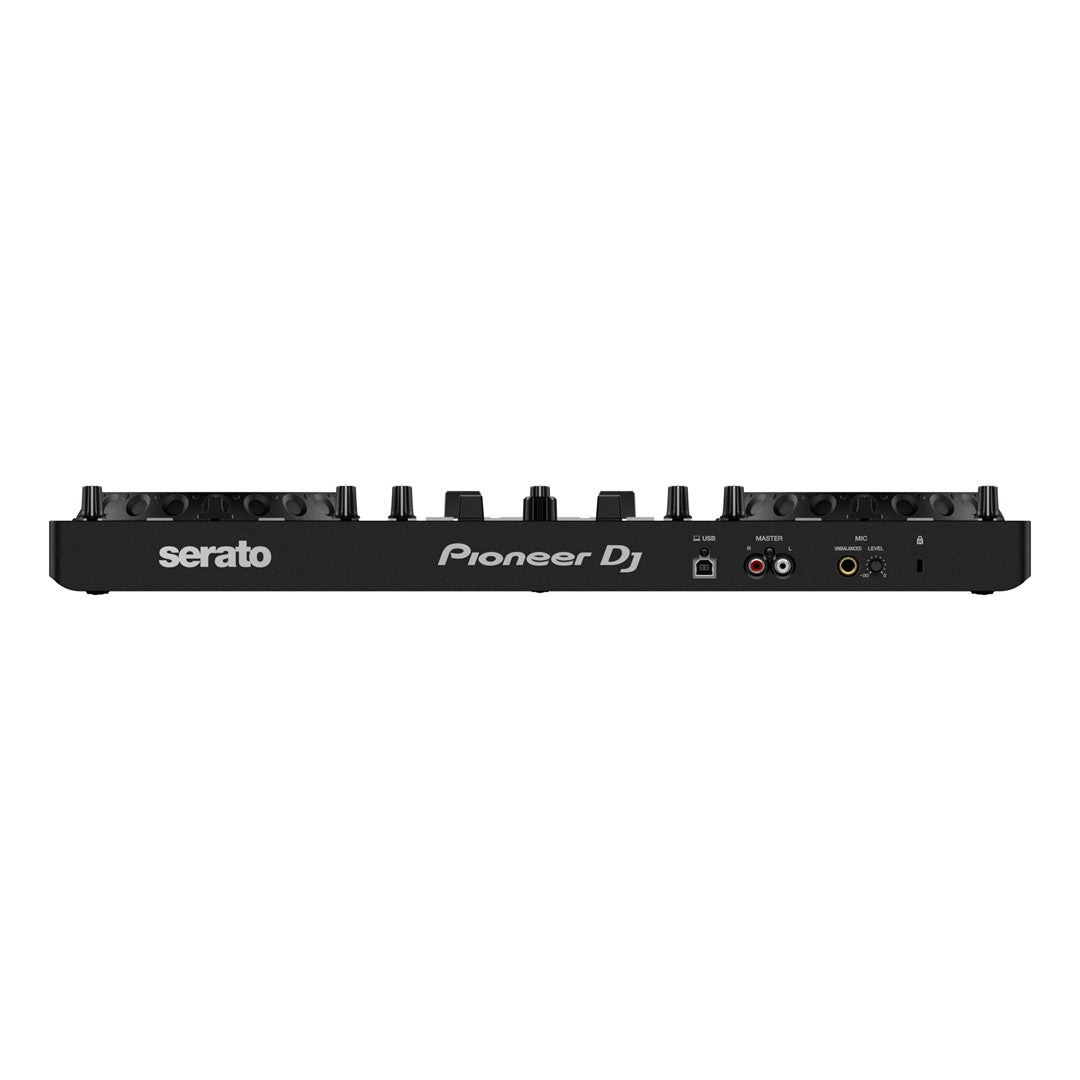

•    Outputs: 1 MASTER (RCA), 1 PHONES (3.5-mm stereo mini jack)
•    USB: 1 USB B port
•    Other Features: Class compliant (no driver installation required), Firmware Update Manager for       automatic notifications of updates

Pad Modes:

•    Hot Cue
•    Auto Loop
•    Tracking Scratch
•    Sampler
•    Trans
•    Scratch Bank
•    Manual Loop

Fader Features:

•    Channel Fader Start
•    Crossfader Start
•    Crossfader Curve Adjust

Software Compatibility:

•    Serato DJ Lite
•    Serato DJ Pro (License/subscription not included)

Why Choose the Pioneer DJ DDJ-REV1?

The Pioneer DJ DDJ-REV1 suits scratch DJs, beginners, and mobile performers seeking hands-on control. Its battle-style layout, responsive controls, and compact USB-powered design make it a practical choice for creative DJ performances.
