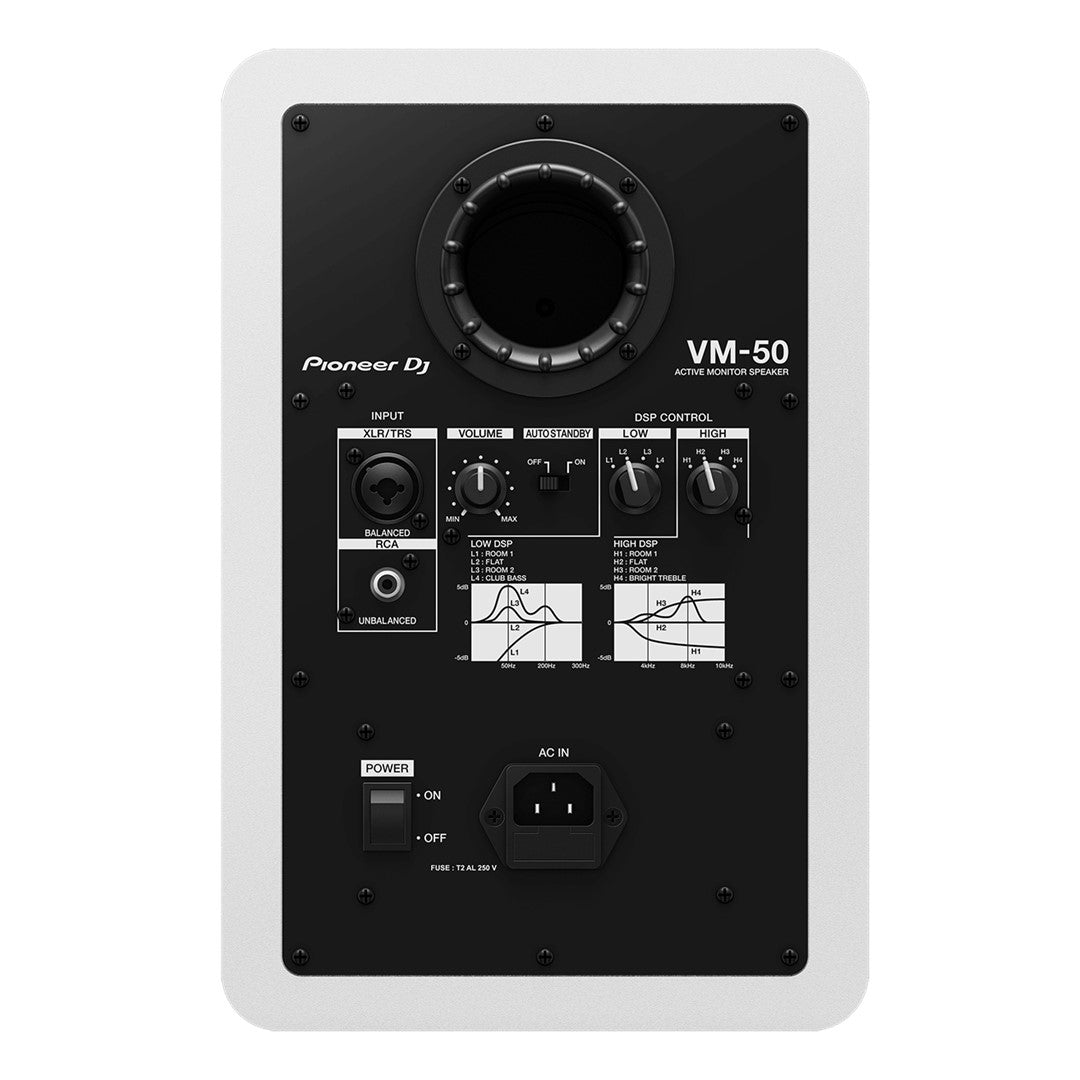

Pioneer DJ VM-50-W 5” White Active Monitor Speaker Rear View

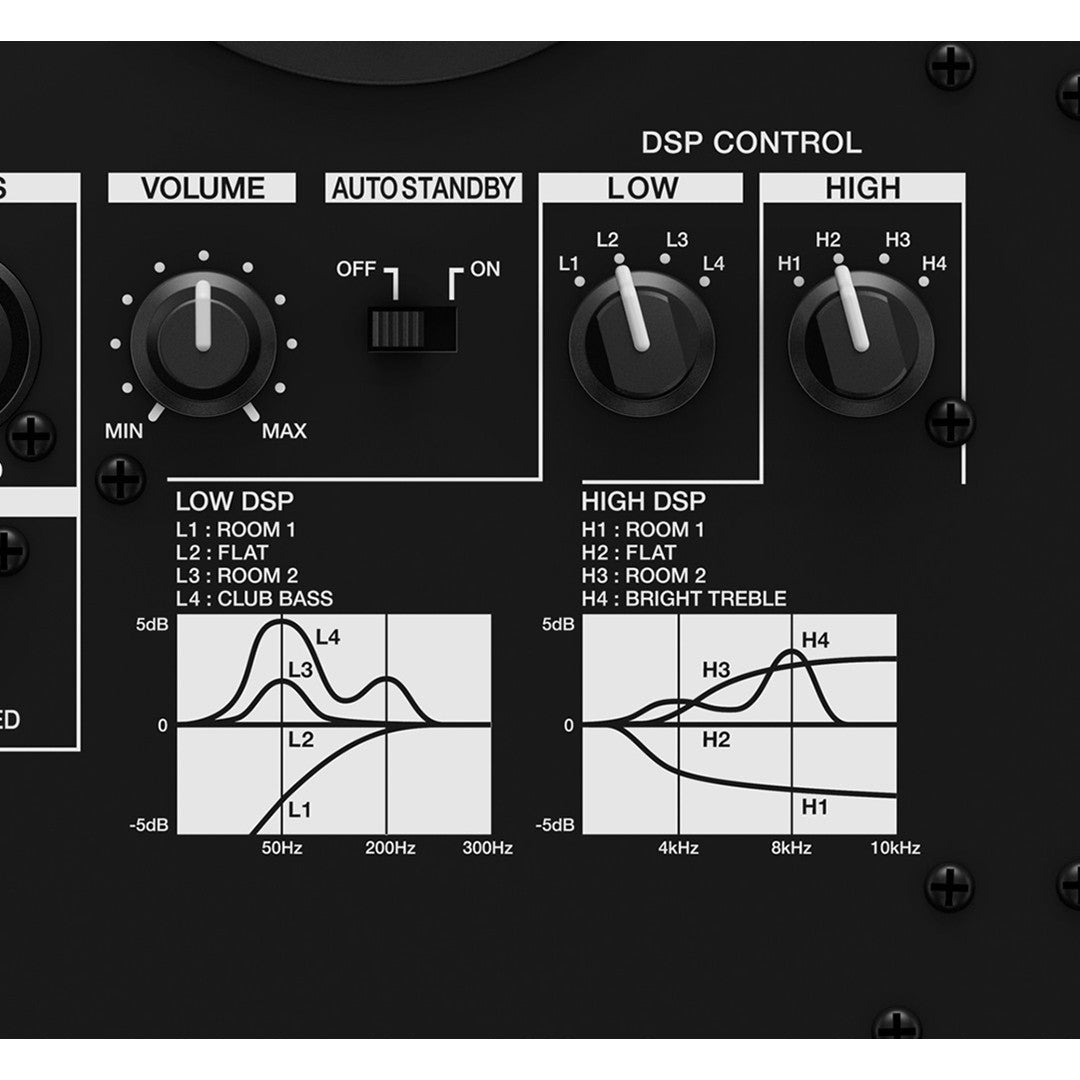

Pioneer DJ VM-50-W 5” White Active Monitor Speaker Rear View DSP Control Panel

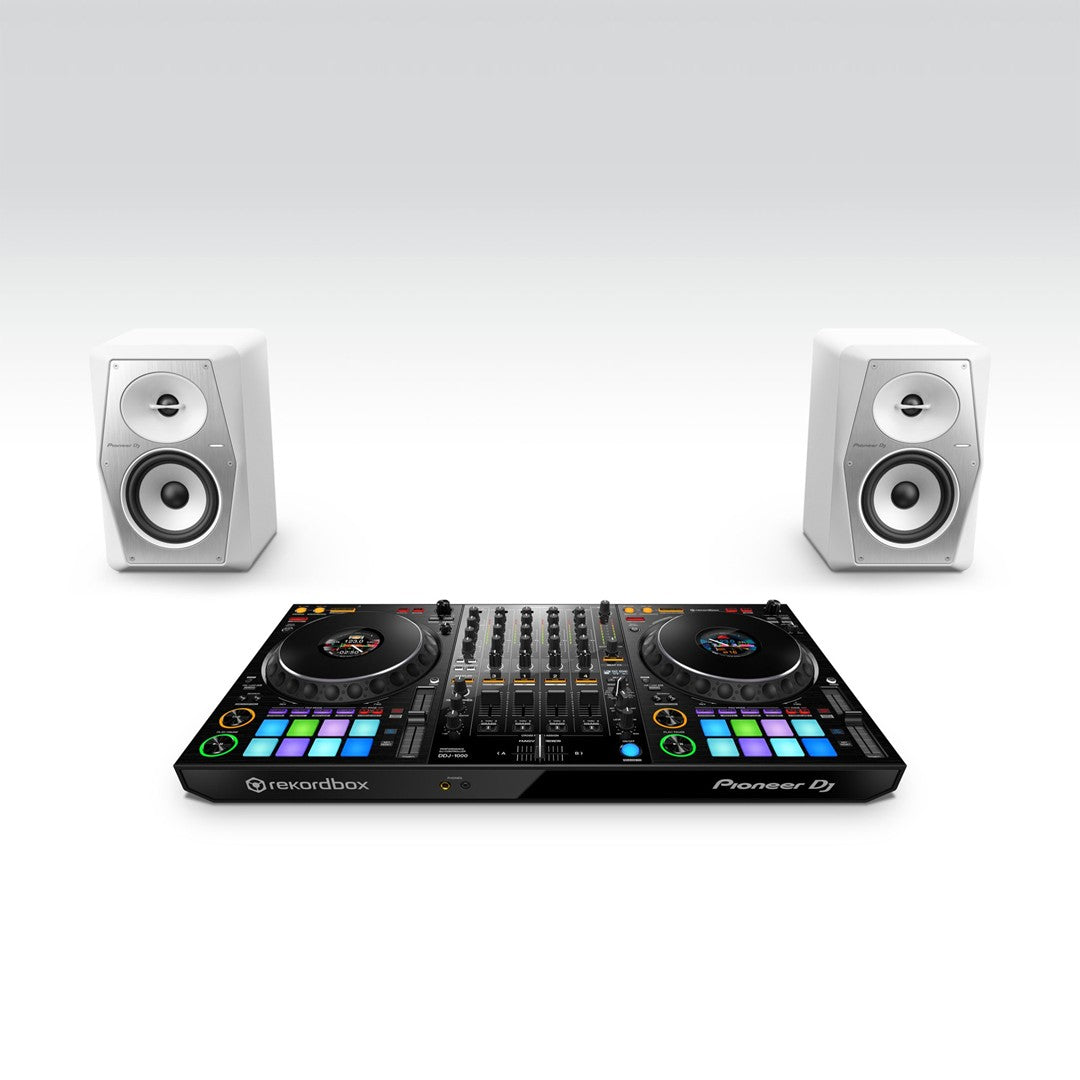

Pioneer DJ VM-50-W 5” White Active Monitor Speaker Set up 1

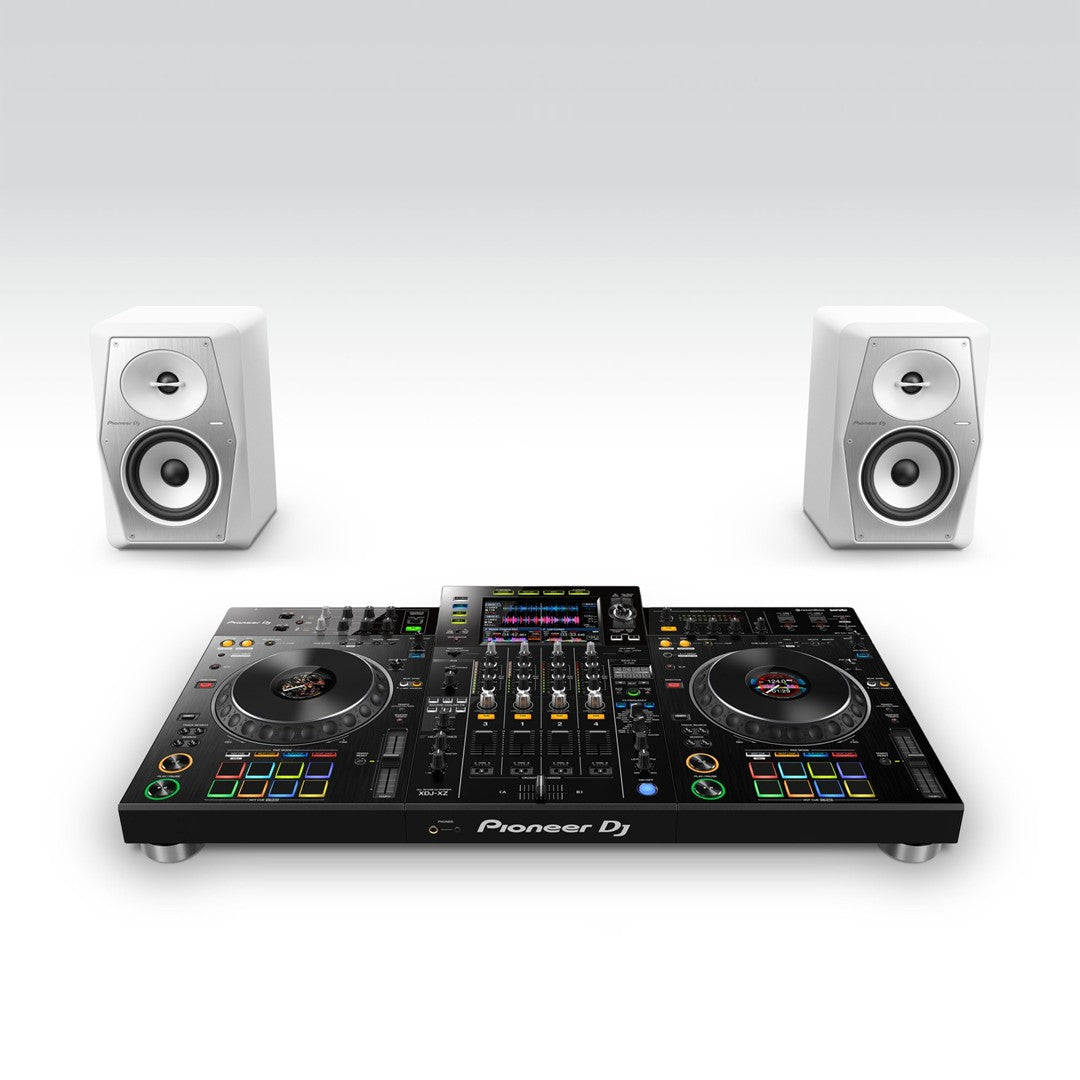

Pioneer DJ VM-50-W 5” White Active Monitor Speaker Set up 2
Pioneer DJ

Pioneer DJ VM-50-W - 5” White Active Monitor Speaker

Overview:

The Pioneer DJ VM-50-W 5” active monitor speaker brings detailed playback and responsive bass to DJ and production setups. Its 96 kHz DSP and Class D amplifier support efficient, low-distortion performance. The aramid fiber woofer adds strong low-end impact, while the constant directivity horn provides broad sound coverage. With adjustable EQ controls, the VM-50-W also lets you tailor its response to your room.

Key Features:

•    Clear, Responsive Sound: The VM-50-W delivers detailed audio with punchy bass for confident        DJing and music production.
•    Class D Amplifier and 96 kHz DSP: Efficient amplification and digital processing provide wide            frequency reproduction with low distortion.
•    Lightweight Aramid Fiber Woofer: The 30% lighter aramid cone delivers strong bass and low-          mid performance with added strength.
•    Vortex Bass Accelerator: Ribbed bass reflex port design improves airflow and limits vibrations        for tighter low-frequency playback.
•    Constant Directivity Horn: The horn distributes mid and high frequencies evenly, creating a                broad, uniform listening area.
•    16 DSP Sound Adjustments: Low EQ and High EQ controls offer 16 settings for adapting                          playback to room acoustics.
•    Durable Aluminium Front Baffle: The 4mm rigid aluminum baffle reduces resonance and                      vibrations while providing a professional finish.
•    Flexible Input Options: XLR, TRS, and RCA connections make the monitor suitable for varied              audio equipment setups.

Specifications:

•    Type: Bi-amp 2-way active speaker
•    Power Consumption: 30 W
•    Woofer: 5.25″ (133 mm) Aramid Cone
•    Height: 300 mm (11.8 inches)
•    Width: 198 mm (7.8 inches)
•    Depth: 256 mm (10.1 inches)
•    Weight: 5.5 kg (12.1 lbs)
•    Frequency Range: 40 Hz – 36 kHz
•    Maximum Sound Pressure Level: 107 dB
•    Amplifier Output: Class D (LF): 30 W / 4 Ω, (HF): 30 W / 4 Ω
•    Sampling Rate: 96 kHz
•    DSP Control: Yes (with Low EQ and High EQ settings)
•    Input Connections: XLR, TRS, RCA
•    Design Finish: Hexagonal aluminum front baffle
•    Available Colors: Black and White

What's Included:

•    Power cord × 1
•    Bottom cushion × 1 (4pcs/1 sheet)
•    Precautions for Use × 1
•    Instruction Manual (this document)

A Practical Choice for DJs and Producers:

The Pioneer DJ VM-50-W suits DJs and music producers in home or professional environments. Its adjustable DSP controls help accommodate different room conditions. Combined with flexible inputs, powerful bass, and broad frequency coverage, it provides a versatile monitoring solution for demanding audio setups.
