Turbosound IQ-12 - 12" Active 2500W Speaker
Overview:

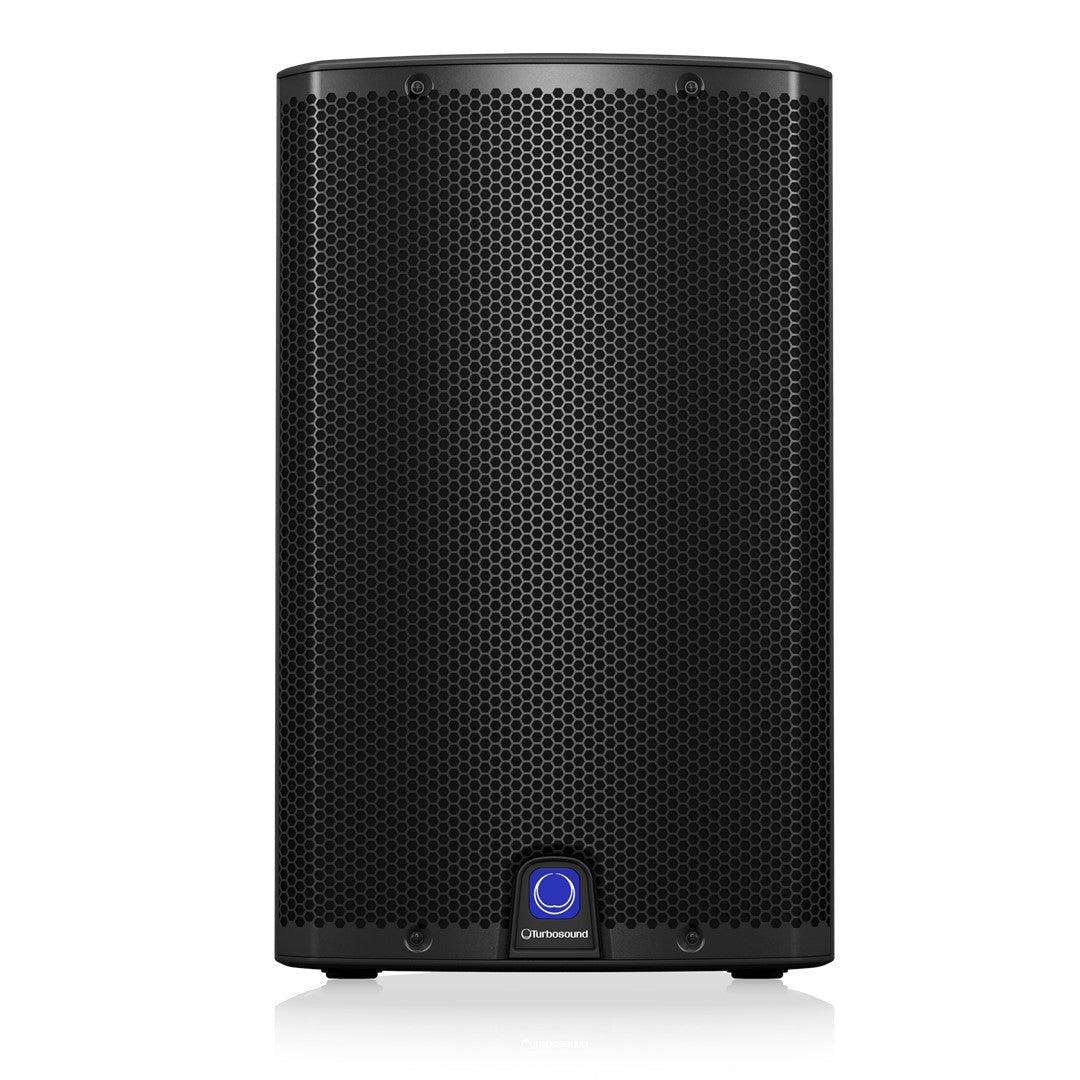

The Turbosound IQ-12 is a 2-way full-range loudspeaker built for portable use and fixed installations. Its 2,500-watt Class-D amplification delivers powerful, controlled sound. A 12" LF driver handles low frequencies, while the 1" HF compression driver extends high-frequency reproduction. Integrated DSP adds speaker modeling, Dynamic EQ, and Spatial Contour Control. ULTRANET networking also simplifies digital audio connections and system setup.
Key Features:
• 2,500-Watt Class-D Amplification: The efficient amplifier delivers powerful output for demanding music and speech reinforcement applications.
• 12" LF and 1" HF Drivers: Dedicated drivers cover low and high frequencies for detailed full- range sound reproduction.
• Advanced DSP Control: Integrated DSP provides Dynamic EQ, speaker modeling, and limiting for greater sound control.
• Speaker Modeling: Selectable speaker models recreate industry-standard loudspeaker characteristics for flexible system configuration.
• Spatial Contour Control: SCC adjusts frequency response for different placements, helping maintain consistent sound across installations.
• ULTRANET Digital Networking: ULTRANET connects compatible audio equipment through CAT5 cables, simplifying digital system integration.
• Flexible Installation Design: Multiple rigging points and a dual-angle pole mount support portable and permanent applications.
Specifications:
• Type: 2-way full-range loudspeaker
• Power: 2,500 Watts
• Frequency Response: 52 Hz – 18 kHz ±3 dB
• Nominal Dispersion: 80° H x 60° V
• Maximum SPL: 130 dB peak
• Amplifier Type: Class-D
• Drivers: 1 x 12″ LF driver, 1 x 1″ HF compression driver
• DSP Functions: Dynamic EQ, Speaker modeling, SCC
• Inputs: 2 x combo jack/XLR
• Outputs: 2 x XLR Linked to input, Mix output XLR
• Dimensions: 609 x 370 x 370 mm (24.0 x 14.5 x 14.5″)
• Weight: 14.7 kg (32 lbs)
• Construction: Injection-moulded polypropylene enclosure
• Finish: Black painted
Built for Flexible Sound Reinforcement:
The Turbosound IQ-12 suits DJs, live sound applications, speech reinforcement, and fixed installations. Its powerful amplification, DSP control, networking, and adaptable mounting options make it practical for varied audio setups.
